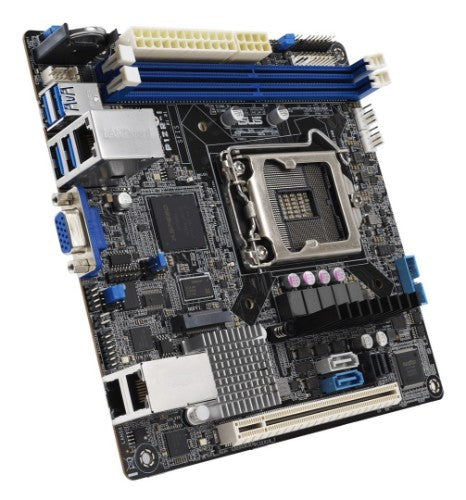

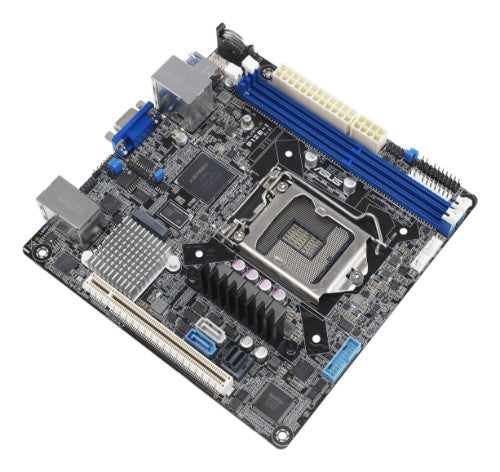

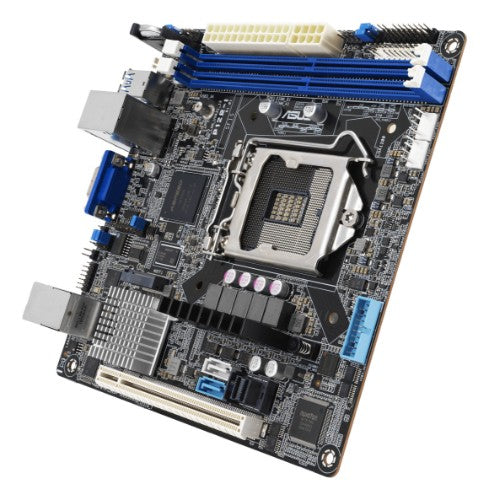

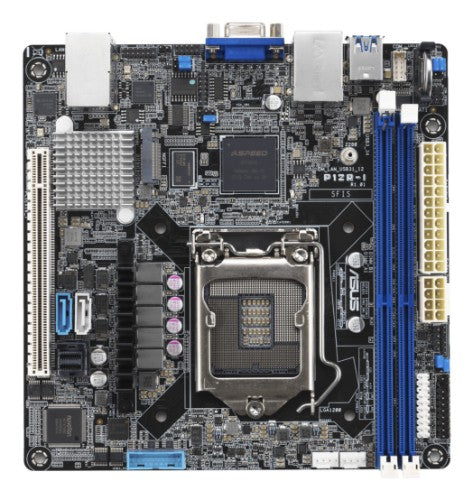

Intel® Xeon® E-2300 LGA 1200 Rack Optimized Mini ITX compact form factor increases density , plus dual 1G LAN, M.2 unleash independent I/O for OS drive, six SATA, one PCIe 4.0 slots, four USB 3.2 Gen 1.

Key Features

• Ideal for remote office/branch office (ROBO) use and everyday business environments
• Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
• Flexible expandability with six native SATA HDDs and 1 PCI Express Gen4 slot
• Dual Intel I210AT Gigabit Ethernet with teaming support
• One M.2 support to 2280 PCIe Gen4 x4 Link for faster OS booting
• Onboard ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management

Description

PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R-I server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.

Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.

Dual Ethernet bandwidth
With dual onboard LAN powered by an Intel I210AT Ethernet controller, P12R-I server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.

ASUS ASMB10-iKVM
ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.

ASUS Control Center
ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

Specifications

Internal I/O
Number of M.2 (M) slots	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Supported storage drive interfaces	M.2, SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
TPM connector	Yes
Serial port headers	1
Number of SATA III connectors	6
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel C252
Serial port headers	1
Motherboard form factor	ATX
Component for	Server
Performance
Motherboard chipset family	Intel
Motherboard chipset	Intel C252
Motherboard form factor	ATX
Component for	Server
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Pentium®, Intel Xeon E
Processor socket	LGA 1200 (Socket H5)
Memory
Number of memory slots	2
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	2666,2933,3200 MHz
Supported memory module capacities	4GB, 8GB, 16GB, 32GB
Maximum internal memory	64 GB
Storage controllers
Supported storage drive interfaces	M.2, SATA III
Graphics
Graphics card family	ASPEED
Graphics card	AST2600
On-board graphics card memory	64 MB
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	0
VGA (D-Sub) ports quantity	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	3
DVI-D ports quantity	0
Number of SAS ports	2
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Intel® I210-AT
Features
Motherboard chipset family	Intel
Motherboard chipset	Intel C252
Motherboard form factor	ATX
Component for	Server
Harmonized System (HS) code	84733020
Expansion slots
Number of M.2 (M) slots	1
PCI Express x16 slots	1
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 50 °C
Storage relative humidity (H-H)	20 - 90%
Video
Graphics card family	ASPEED
Graphics card	AST2600
Packaging data
Package width	311 mm
Package depth	281 mm
Package height	78 mm
Package weight	1.2 kg
Logistics data
Harmonized System (HS) code	84733020
Weight & dimensions
Package width	311 mm
Package depth	281 mm
Package height	78 mm
Package weight	1.2 kg
Weight	500 g
Width	170 mm
Depth	170 mm
Other features
Package width	311 mm
Package depth	281 mm
Package height	78 mm
Package weight	1.2 kg
Weight	500 g
