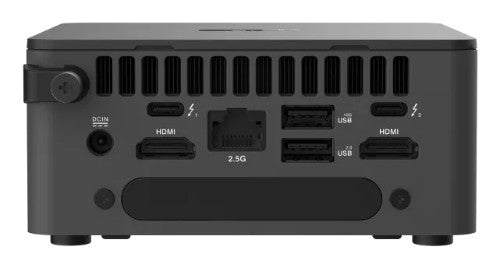

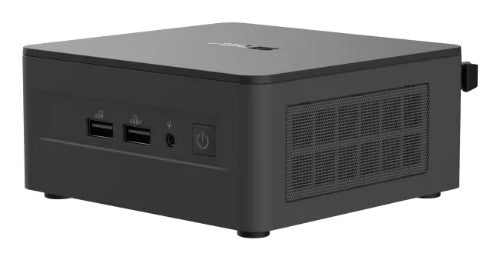

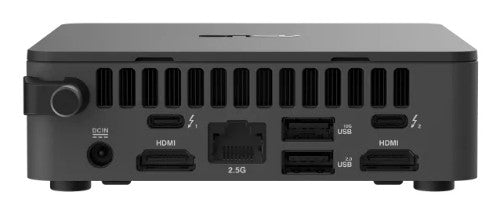

NUC 12 Pro Kit, Intel Core i7-1270P, 4.80 GHz, up to 64 GB, DDR4 SDRAM, 35 W, Intel Iris Xe graphics, 112 x 117 x 37 mm

Key Features

• M.2 22x80 key M slot for PCIe x4 Gen 4 NVMe SSD
• M.2 22x42 key B slot for PCIe x1 Gen 3, USB 3.2 Gen 2, USB 2.0, and SATA SSD
• expandability
• Support in tall chassis for third SSD with 2.5” drive capability (up to 15mm tall)

Description

Smaller, Faster, Better, AI Ready
The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.
Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifespan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.
With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.

Built for Business. NUC 12 Pro
Boost business performance with 12th Gen Intel Core processors and the latest features to support productivity, collaboration, and edge compute.

ASUS NUC 12 Pro Mini PCs, Kits, & Boards
Ready to work, wherever it’s needed—the 4x4 compact device is designed to go where you go, and fit into any space.

Powerful Performance Perfect Fit
Experience the advanced power and performance for edge computing, collaboration, home offices, and more— 12th Gen Intel Core™ processors deliver it all.

Small Size. Big Business Performance
ASUS NUC 12 Pro Mini PCs and Kits raise the bar for performance and connectivity in a 4x4 device for the edge, business, or home. 12th Gen Intel Core processors deliver revved-up performance with up to 64 GB dual-channel memory and ample SSD capacity—plus lightning-fast wired and wireless connectivity.

The power of small
With a 4” x 4” footprint, pint-sized NUC 12 Pro Mini PCs and Kits are available in two chassis, including tall kits with a 2.5” drive bay and an internal expansion bay.

Brilliant graphics
Small size and brilliant graphics technologies make NUC systems an ideal choice for kiosks, signage, video walls, and more. Choose from systems with Intel® Iris® Xe graphics or customizable discrete graphics.

Surprising size. Supercharged performance
Level up your business with the latest technologies.

Mighty performance
With 12th Gen Intel Core™ processors, ASUS NUC 12 Pro Mini PCs, Kits, and Boards deliver the latest in powerful performance for edge computing, collaboration, home offices, and more.

Intel vPro platform
Created for IT professionals, Intel vPro Enterprise sets the standard for business: multilayer hardware-based security, efficient remote manageability, business-class performance, and PC fleet stability. Powerful, proven performance for today and tomorrow.

Device management is built-in
Stay on top of all of your devices. Oversite tools like Application Monitor, Player Failover and Advanced Features make NUC devices easy for admins.

All day, every day
ASUS NUC devices are engineered, built, for 24/7 commercial use, perfect for your “always on” needs like digital signage, security systems, and more.

Specifications

Motherboard
Motherboard form factor	UCFF
Number of processors supported	1
Processor
Thermal Design Power (TDP)	35 W
Built-in processor	Yes
Processor model	i7-1270P
Processor boost frequency	4.8 GHz
Processor threads	16
Processor cores	12
Processor family	Intel® Core™ i7
Number of processors supported	1
Processor manufacturer	Intel
Processor cache	18 MB
Performance cores	4
Efficient cores	8
Performance-core Max Turbo Frequency	4.8 GHz
Efficient-core Max Turbo Frequency	3.5 GHz
Processor generation	12th gen Intel® Core™ i7
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
ECC	No
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	3200 MHz
Maximum internal memory	64 GB
Non-ECC	Yes
Video
On-board graphics card	Yes
Graphics card family	Intel
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2
Storage drive interface	Serial ATA
Number of storage drives supported	2
SSD form factor	M.2
NVMe	Yes
Graphics
Number of displays supported	4
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card model	Intel Iris Xe Graphics
Performance
Motherboard form factor	UCFF
Number of processors supported	1
Windows operating systems supported	Windows 11 Home, Windows 11 Pro, Windows 10 Home, Windows 10 IoT Enterprise, Windows 10 Pro
Linux operating systems supported	Yes
Number of displays supported	4
Audio
Intel® High Definition Audio (Intel® HD Audio)	Yes
Built-in speaker(s)	No
Network
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Bluetooth version	5.3
Bluetooth	Yes
Ethernet LAN	Yes
Wi-Fi	Yes
LAN controller	Intel I225-V
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Ports & interfaces
Serial port via internal header	No
Combo headphone/mic port	Yes
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
HDMI version	2.1
USB 2.0 ports quantity	1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
Thunderbolt 4 ports quantity	2
Expansion slots
PCI Express slots version	4.0
Design
Motherboard form factor	UCFF
VESA mounting	Yes
Product type	Mini PC barebone
On/off switch	Yes
LED indicators	Yes
Cooling type	Active
Product colour	Black
Chassis type	UCFF
Processor special features
Intel ME Firmware Version	16
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Platform Trust Technology (Intel® PTT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Colour
Product colour	Black
Technical details
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Processor cores	12
Cooling type	Active
Chassis type	UCFF
Indication
LED indicators	Yes
Software
Windows operating systems supported	Windows 11 Home, Windows 11 Pro, Windows 10 Home, Windows 10 IoT Enterprise, Windows 10 Pro
Linux operating systems supported	Yes
Management features
On/off switch	Yes
Features
Number of displays supported	4
Power
Power supply type	External AC adapter
Weight & dimensions
Width	117 mm
Depth	112 mm
Height	37 mm
Other features
Chassis type	UCFF
