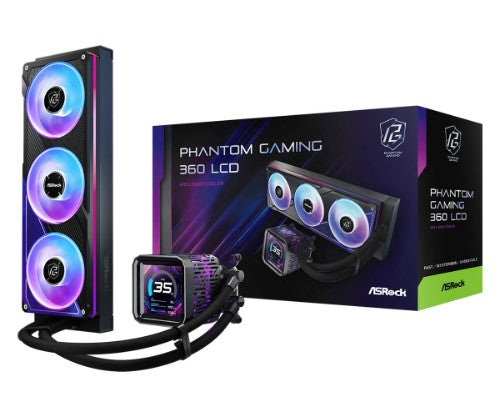

Phantom Gaming 360 LCD

Key Features

• 3.4” Full-Color LCD Display
• 3-Phase 6-Slot Pump
• Dual-inlet Cooling Path
• 360° Halo ARGB Fan
• High-performance FDB Fans
• RGB Lighting Ecosystem
• 0dB Silent Cooling
• IIR+EPDM Tubing
• Effortless Installation
• High Conductivity Thermal Grease
• Reliable 6-Year Warranty

Description

The Phantom Gaming AIO liquid cooler embodies the explosive spirit of performance and style. With a 3.4" LCD display, vivid ARGB lighting, and performance-optimized cooling design, it unleashes raw power and dynamic visual energy to elevate every build.

FAST
MYSTERIOUS
UNBEATABLE
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!

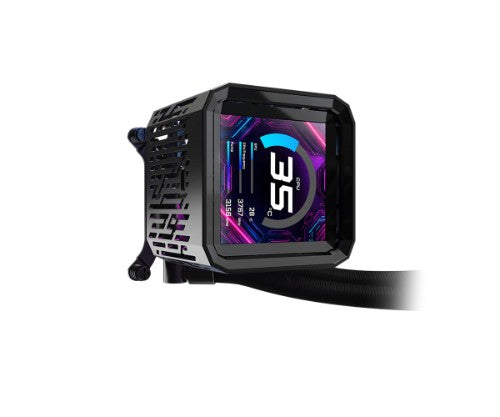

3.4” Full-Color LCD Display
A 3.4" full-coverage LCD brings your system stats and custom visuals to life in vibrant detail.

Polychrome DISPLAY
Combines real-time monitoring with customizable visuals, letting users display system stats, preferred images, or animations — all through an intuitive interface with multi-language support.

Customizable Animations
Explore built-in animations or import your own for a fully customized display experience.

Enhanced Flow & Surface Cooling System
A 32mm-thick radiator maximizes heat dissipation and cooling efficiency, while 7mm reinforced tubing increases coolant volume for superior thermal performance.

0dB Silent Cooling Technology
Fan stops completely under low load for absolute silence and extended lifespan.

POLYCHROME RGB
Simply connect the 3-pin ARGB header to an ASRock motherboard to unlock Polychrome SYNC support, experience perfectly synchronized, full-system RGB illumination with seamless control.

SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. ASRock AIO Liquid Coolers have passed comprehensive SignalRGB compatibility testing, ensuring reliable control of the LCD display and lighting effects through the SignalRGB software.

ASRock Therm-X1 Thermal Grease
High thermal conductivity enables efficient heat transfer, enhancing system stability and extending CPU lifespan.

Specifications

Performance
Suitable location	Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (max)	2400 RPM
Bearing type	Fluid bearing
Noise level (high speed)	31.4 dB
Type	Liquid cooling kit
Fan diameter	12 cm
Supported processor sockets	Socket AM4, Socket AM5, LGA 1851, LGA 1700
Maximum airflow	61.28 cfm
Maximum air pressure	3.11 mmH2O
Number of fans	3 fan(s)
Pump connector	4-pin
Pump motor speed (min)	1200 RPM
Pump motor speed (max)	3100 RPM
Design
Fan connector	4-pin
Number of fans	3 fan(s)
Illumination colour	Amber, Blue, Green, Red
Product colour	Black
Illumination LED	Yes
Radiator material	Aluminum
Water block material	Copper
Display type	IPS
Display diagonal	8.64 cm (3.4")
Display resolution	480 x 480 pixels
Technical details
Noise level (high speed)	31.4 dB
Type	Liquid cooling kit
Fan diameter	12 cm
Supported processor sockets	Socket AM4, Socket AM5, LGA 1851, LGA 1700
Maximum airflow	61.28 cfm
Maximum air pressure	3.11 mmH2O
Number of fans	3 fan(s)
Fan connector	4-pin
Illumination LED	Yes
Ports & interfaces
Fan connector	4-pin
Pump connector	4-pin
Power
Pump voltage	12 V
Fan voltage	12 V
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	70 x 70 x 25 mm
Radiator width	12 cm
Radiator depth	39.7 cm
Radiator height	3.2 cm
Tube length	45 cm
Waterblock width	8.6 cm
Waterblock depth	10 cm
Waterblock height	10.8 cm
Indication
Illumination colour	Amber, Blue, Green, Red
Other features
Pump connector	4-pin
