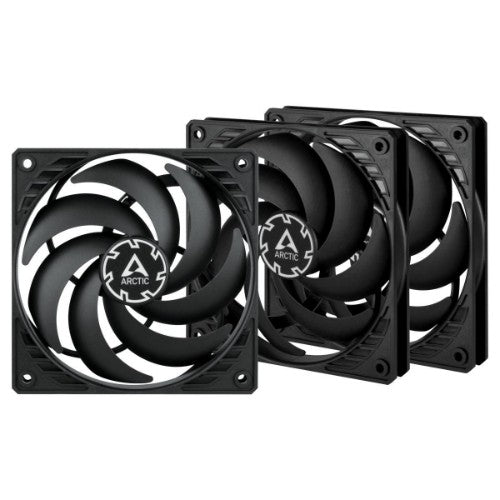

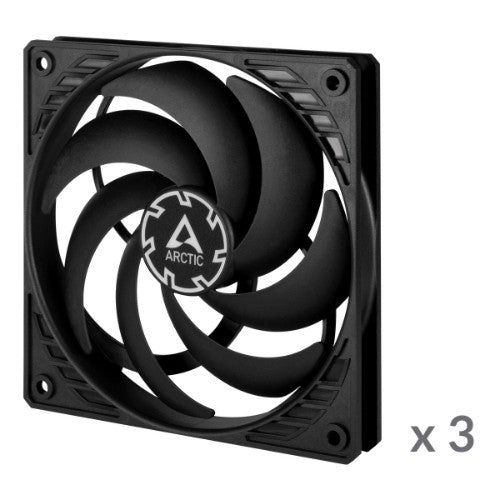

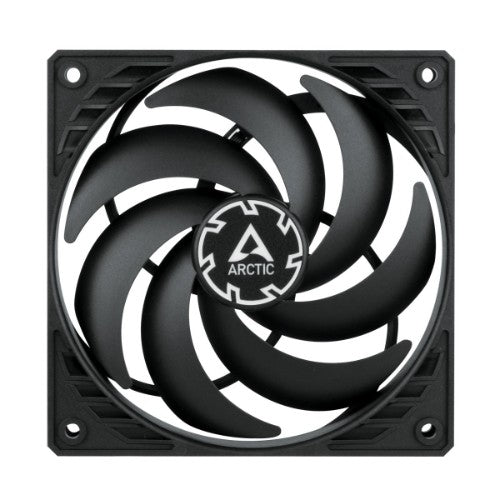

120 mm, 300-2100 RPM, 41.1 CFM, 71.53 m³/h, 0.12 A / 12V, PWM PST, 85 g, 3 pcs

Reasons To Buy

Ideal where space is limited

Unlike normal case fans, which are 25 mm thick, the P12 Slim PWM PST has an installation depth of only 15 mm. This makes it a predestined fan for small form factor builds.

OPTIMISED FOR STATIC PRESSURE

During the development of the new P12 Slim PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 Slim PWM PST is particularly suitable for use on covered case vents or inlets with filters.

MORE EFFICIENT TECHNOLOGY

The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 Slim PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.

MAXIMUM QUIETNESS, MINIMUM VIBRATION

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

EXTENDED LIFE SPAN

A 10 °C lower motor temperature roughly doubles the life span of a fan.
Due to the low coil temperature of the new ARCTIC fan motors, the service life of the fans increases considerably. Therefore, we extend the warranty to 6 years.

300 TO 2100 RPM REGULATED VIA PWM PST

With a wide range of regulation and the PWM Sharing Technology (PST), the P12 Slim PWM PST fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.

HIGH QUALITY BEARING

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

TWO WAY INSTALLATION

Push warm air out of the case

Pull cool air into your case

Description

Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.

Specifications

Performance
Suitable location	Computer case
Pulse-width modulation (PWM) support	Yes
Rotational speed (min)	300 RPM
Rotational speed (max)	2100 RPM
Noise level	0.3 sone
Bearing type	Fluid Dynamic Bearing (FDB)
Type	Fan
Fan diameter	12 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Maximum airflow	41.1 cfm
Maximum air pressure	1.45 mmH2O
Airflow	71.53 m³/h
Number of fans	1 fan(s)
Quantity per pack	3 pc(s)
Fan bearing technology	Fluid Dynamic Bearing (FDB)
Design
Number of fans	1 fan(s)
Material	Plastic
Product colour	Black
Cable length	0.48 m
Technical details
Type	Fan
Fan diameter	12 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Maximum airflow	41.1 cfm
Maximum air pressure	1.45 mmH2O
Airflow	71.53 m³/h
Number of fans	1 fan(s)
Material	Plastic
Cable length	0.48 m
Power
Starting voltage	4 V
Voltage	12 V
Rated current	0.12 A
Colour
Product colour	Black
Weight & dimensions
Package depth	123 mm
Package width	53 mm
Package height	14 mm

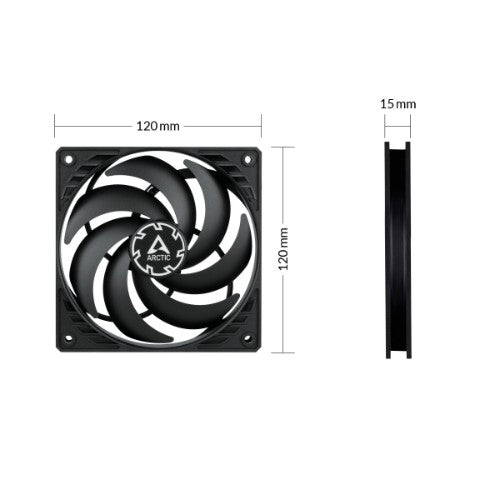

Width	120 mm
Package weight	345 g
Depth	120 mm
Height	15 mm
Weight	85 g
Cable length	0.48 m
Packaging data
Package depth	123 mm
Package width	53 mm
Package height	14 mm
Package weight	345 g
Package type	Box

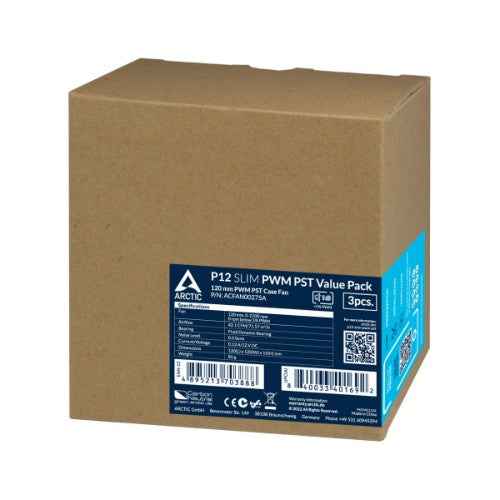

Packaging content
Screws included	Yes
Package type	Box
Mounting kit	Yes
Other features
Harmonized System (HS) code	84733080
Logistics data
Harmonized System (HS) code	84733080
