Liquid Freezer WS360-SP6, 600-3000 rpm, 77 cfm / 131 m³/h, 6.9 mm H20

Description

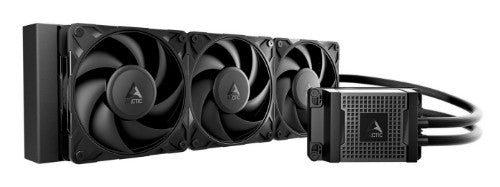

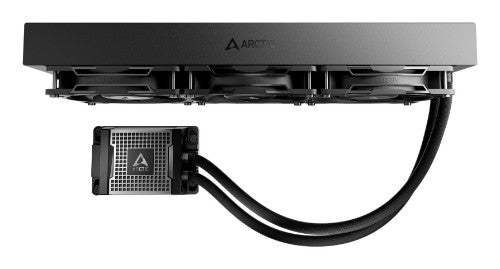

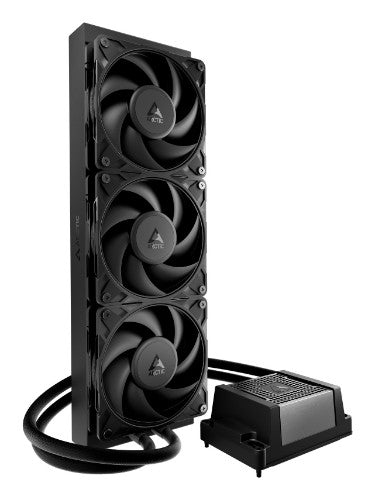

Liquid Freezer WS360-SP6
Workstation All-in-One CPU Water Cooler

Outstanding Liquid Cooling for Workstations
The Liquid Freezer WS360-SP6 is an all-in-one liquid cooling solution designed for the AMD SP6 workstation platform. Featuring a specially mounting system for easy installation, it delivers outstanding cooling performance to meet the demands of high-performance workstations.

Designed for Superior Cooling, optimized for Workstations
Thanks to its radiator design and high-performance fans, the Liquid Freezer WS360-SP6 delivers outstanding cooling under heavy loads while keeping noise levels comparable to competing solutions.

P12 Pro PST CO – Performance & Durability
The ARCTIC's P12 Pro PST CO pair the High Static‑Pressure Performance of the P12 Pro with Dual Ball Bearings engineered for continuous 24/7 operation, ensuring durability and extended lifespan.

Tailored Made for SP6
A fixed mounting system tailored for AMD SP6 ensures optimal contact pressure on the CPU and user-friendly installation.

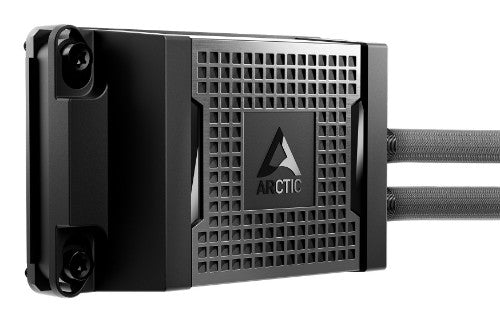

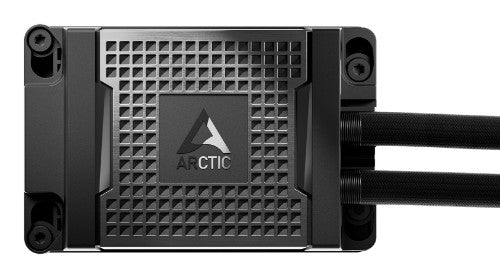

Water Block Design for Workstations
The water block is a brand‑new design with high‑density micro‑fins, efficient chamber flow, and a durable pump for long‑lasting reliability.

Premium-Class Radiator
Liquid coolers with 38mm radiators offer superior thermal dissipation, and we continued integrating this design into our workstation models.

High Quality EPDM Tubing
EPDM tubing with braided sheathing to ensure durability and prevent leakage, protecting your components is our highest priority.

Specifications

Performance
Suitable location	Processor
Fan connector	3-pin/4-pin
Pulse-width modulation (PWM) support	Yes
Fins material	Copper
Bearing type	Dual ball bearing
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	SP6, Socket sTR5, Socket SP3, Socket sTRX4, Socket TR4, Socket sWRX8
Maximum airflow	77 cfm
Maximum air pressure	6.9 mmH2O
Airflow	131 m³/h
Number of fans	3 fan(s)
Quantity per pack	1 pc(s)
Pump motor speed (min)	800 RPM
Pump motor speed (max)	3000 RPM
Fan speed (min)	600 RPM
Fan speed (max)	3000 RPM
Design
Fan connector	3-pin/4-pin
Fins material	Copper
Number of fans	3 fan(s)
Product colour	Black
Radiator material	Aluminum
Base plate material	Copper
Technical details
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	SP6, Socket sTR5, Socket SP3, Socket sTRX4, Socket TR4, Socket sWRX8
Maximum airflow	77 cfm
Maximum air pressure	6.9 mmH2O
Airflow	131 m³/h
Number of fans	3 fan(s)
Fan connector	3-pin/4-pin
Ports & interfaces
Fan connector	3-pin/4-pin
Power
Pump voltage	12 V
Pump current	350 mA
Fan voltage	12 V
Fan current	0.33 A
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Package depth	431 mm
Package width	156 mm
Package height	154 mm
Package weight	2.55 kg
Weight	2.1 kg
Radiator width	12 cm
Radiator depth	39.8 cm
Radiator height	3.8 cm
Tube length	45 cm
Tube inner diameter	6 mm
Tube diameter	1.24 cm
Packaging data
Package depth	431 mm
Package width	156 mm
Package height	154 mm
Package weight	2.55 kg
Package type	Box
Packaging content
Package type	Box
