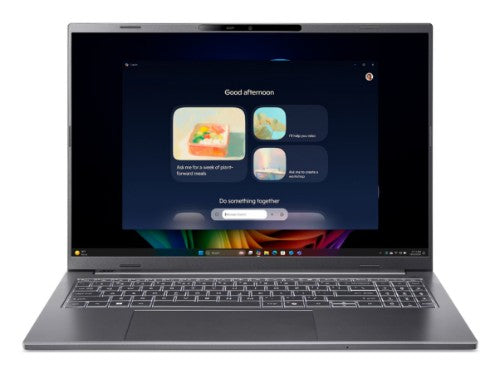

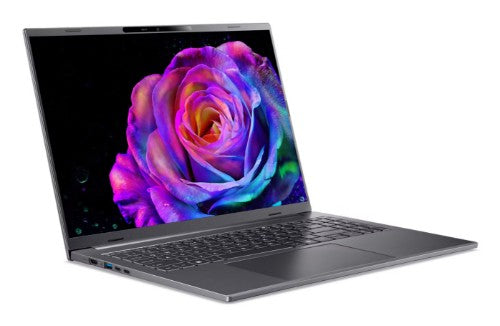

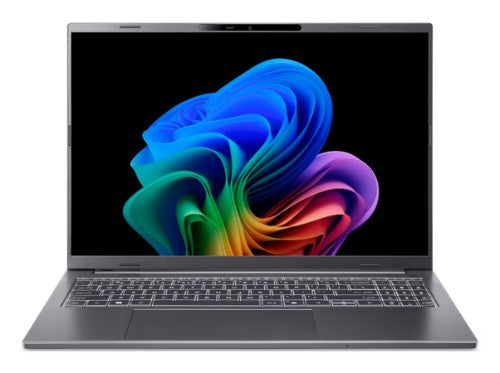

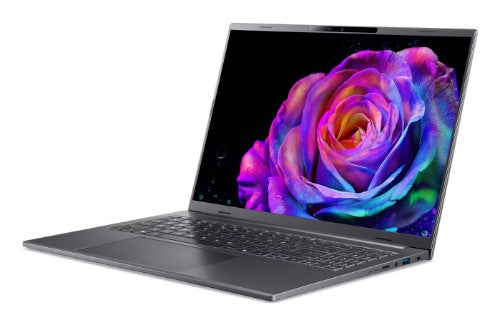

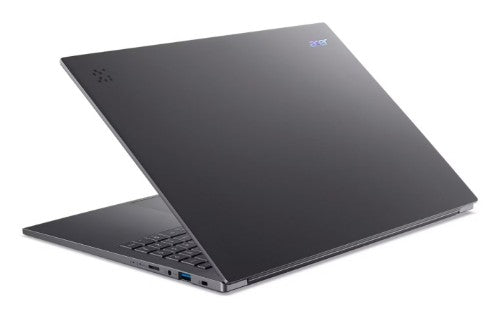

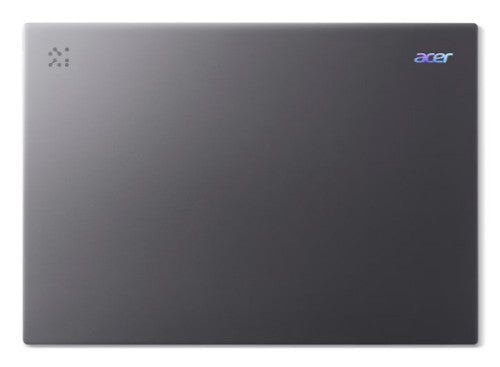

Intel Core Ultra 5 226V (8MB Cache), 16GB LPDDR5x-SDRAM, 512GB SSD, 16" 2K 2048 x 1280 OLED, Intel Arc Graphics 130V, LAN, Webcam, Windows 11 Home 64-bit

Key Features

• Windows 11 Home 64-bit
• Intel Core Ultra 5 226V (8MB Cache)
• 16" 2K 2048 x 1280 OLED
• 16GB LPDDR5x-SDRAM & 512GB SSD

Description

Equipped with intuitive AI capabilities on a versatile, modern design to deliver powerful intelligence that’s made easy. Stay productive and inspired with the perfect partner on your quest for success.

Specifications

Design
Product type	Laptop
Form factor	Clamshell
Product colour	Grey
Display
HD type	2K
Panel type	OLED
Touchscreen	No
Display resolution	2048 x 1280 pixels
Display diagonal	40.6 cm (16")
Maximum refresh rate	120 Hz
RGB colour space	DCI-P3
Colour gamut	100%
Native aspect ratio	16:10
Processor
Processor generation	Intel Core Ultra (Series 2)
Processor cache type	Smart Cache
Processor cache	8 MB
Processor model	226V
Processor boost frequency	4.5 GHz
Processor cores	8
Processor threads	8
Processor socket	BGA 2833
Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor base power	17 W
Maximum turbo power	37 W
Performance-core base frequency	2.1 GHz
Performance-core Max Turbo Frequency	4.5 GHz
Performance cores	4
Low Power Efficient-core Base Frequency	2100 MHz
Low Power Efficient-core Max Turbo Frequency	3.5 GHz
Low Power Efficient-cores	4
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	97 TOPs
NPU performance up to	40 TOPs
GPU performance up to	53 TOPs
Memory
Memory form factor	On-board
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Maximum internal memory	16 GB
Memory data transfer rate	8533 MT/s
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Total storage capacity	512 GB
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel Arc Graphics
On-board graphics card	Yes
On-board graphics card model	Intel Arc Graphics 130V
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
Audio
Number of built-in speakers	2
Built-in microphone	Yes
Camera
Front camera	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.4
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 2.0 ports quantity	0
HDMI ports quantity	1
Combo headphone/mic port	Yes
USB4 Gen 3x2 ports quantity	2
Intel® Thunderbolt 4	Yes

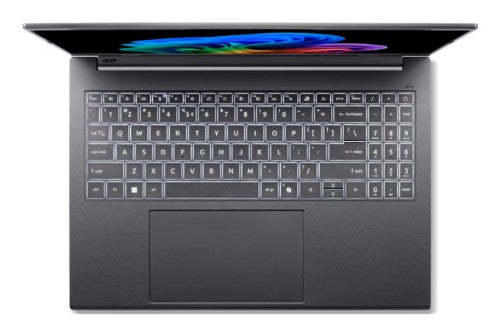

Keyboard
Pointing device	Touchpad
Numeric keypad	Yes
Keyboard backlit	Yes
Keyboard backlit colour	White
Software
Operating system architecture	64-bit
Operating system installed	Windows 11 Home
Technical details
Form factor	Clamshell
Product colour	Grey
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery life (max)	26 h
Battery capacity	65 Wh
Power
AC adapter power	65 W
USB Type-C charging port	Yes
Security
Password protection	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Cable lock slot	Yes
Weight & dimensions
Width	354.9 mm
Depth	250.1 mm
Height	15.9 mm
Weight	1.48 kg
Packaging data
Cables included	AC
AC adapter included	Yes
Packaging content
Cables included	AC
AC adapter included	Yes
Other features
On-board graphics card	Yes
AC adapter included	Yes
