£295.47
Spread the cost over 3, 6 or 12 months with orders over £50.
Free next working day delivery!
Description

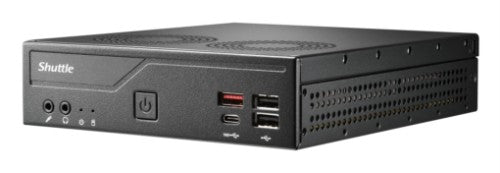

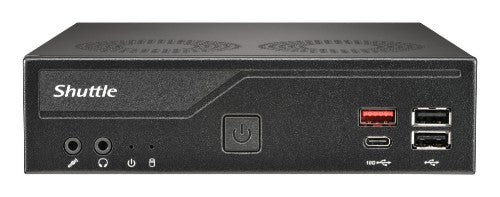

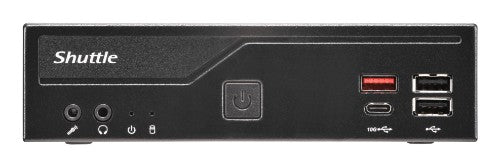

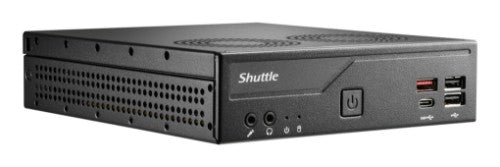

Slim PC DH810 , S1851, 1x HDMI (2.1), 1x DP, 1x USB-C (DP), 1x 2.5", 2x M.2, 2x LAN (Intel 1G + 2.5G), 2x COM, 24/7 permanent operation, incl. VESA
Key Features
- Socket LGA1851 supports Intel Core Ultra 200 series i9 / i7 / i5 processors
- Intel Arc graphics (4K/8K), supports 3 displays
- Supports 24/7 Nonstop Operation
- Up to 96GB DDR5 RAM
- 2x LAN , 8x USB
Description

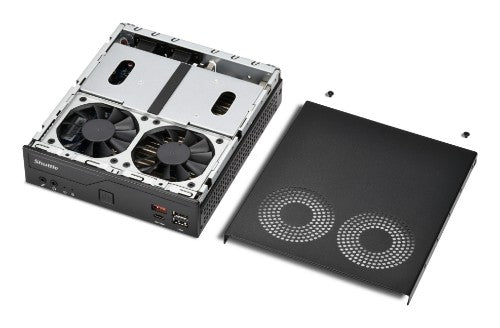

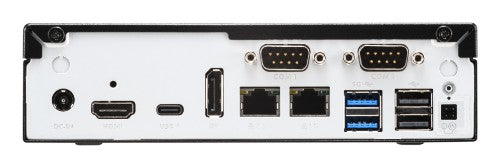

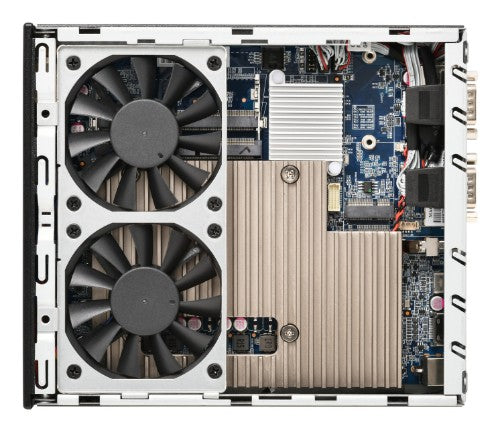

The Shuttle XPC slim Barebone DH810 is a robust 1.3-litre PC designed for powerful Intel Core Ultra 200 desktop processors (LGA1851 socket, “Arrow Lake-S”) with an integrated AI accelerator (NPU). Three independent display outputs – HDMI 2.1 supporting up to 8K/60 Hz, DisplayPort 1.4a, and USB-C with DisplayPort/USB4 – deliver stunning visuals for digital signage, entertainment, or office environments. Dual Intel LAN (2.5G + 1G), eight USB ports, two COM ports, and versatile storage options (M.2 PCIe 4.0 x4/SATA and 2.5" bay) provide maximum flexibility. Its slim metal chassis with VESA mount ensures reliable 24/7 operation at ambient temperatures up to 50 °C, making it ideal for demanding applications such as AI workloads, digital signage, POS/POI, gaming, healthcare, industry, and office.Specifications
| Motherboard | |
|---|---|
| Processor socket | LGA 1851 (Socket V1) |
| Number of processors supported | 1 |
| Processor | |
| Built-in processor | No |
| Processor socket | LGA 1851 (Socket V1) |
| Number of processors supported | 1 |
| Memory | |
| Memory voltage | 1.1 V |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| ECC | No |
| Supported memory types | DDR5-SDRAM |
| Supported memory clock speeds | 5600 MHz |
| Maximum internal memory | 96 GB |
| Non-ECC | Yes |
| Video | |
| On-board graphics card | Yes |
| Storage | |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | M.2, PCI Express, Serial ATA |
| Number of storage drives supported | 2 |
| SSD form factor | M.2 |
| NVMe | Yes |
| Graphics | |
| On-board graphics card | Yes |
| Audio | |
| Audio output channels | 2.0 channels |
| Built-in speaker(s) | No |
| Audio chip | Realtek ALC888S |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® I219, Intel I226 |
| Ports & interfaces | |
| DisplayPort version | 1.4a |
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| USB 2.0 ports quantity | 4 |
| Serial ports quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB4 Gen 2x2 ports quantity | 1 |
| Design | |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
| Housing material | Metal |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| LED indicators | HDD, Power |
| Cooling type | Active |
| Product colour | Black |
| Chassis type | 1.35L sized PC |
| Performance | |
| Windows operating systems supported | Windows 11 |
| Linux operating systems supported | Yes |
| BIOS type | EFI AMI |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Processor socket | LGA 1851 (Socket V1) |
| Number of processors supported | 1 |
| Audio output channels | 2.0 channels |
| Audio chip | Realtek ALC888S |
| Harmonized System (HS) code | 84733080 |
| Colour | |
| Product colour | Black |
| Technical details | |
| BIOS type | EFI AMI |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Quick start guide | Yes |
| Cooling type | Active |
| Chassis type | 1.35L sized PC |
| Sustainability certificates | ENERGY STAR, ErP |
| Compliance certificates | BSMI, CB, CE, ETL, Federal Communications Commission (FCC), RCM, RoHS, VCCI |
| Packaging data | |
| Power cord included | Yes |
| Drivers included | Yes |
| AC adapter included | Yes |
| Package weight | 2.1 kg |
| Indication | |
| LED indicators | HDD, Power |
| Software | |
| Windows operating systems supported | Windows 11 |
| Linux operating systems supported | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, ErP |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 19 V |
| AC adapter output current | 6.32 A |
| Power supply type | External AC adapter |
| Power supply | 120 W |
| Number of power supply units | 1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 165 mm |
| Depth | 190 mm |
| Height | 43 mm |
| Package weight | 2.1 kg |
| Weight | 1.3 kg |
| Packaging content | |
| Power cord included | Yes |
| Drivers included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Other features | |
| Chassis type | 1.35L sized PC |
