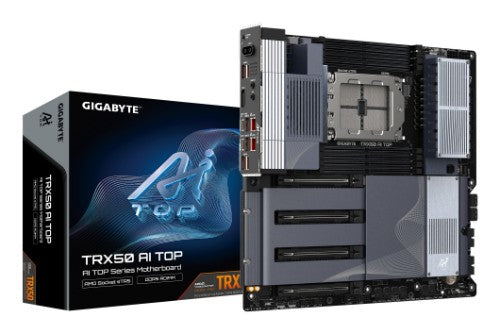

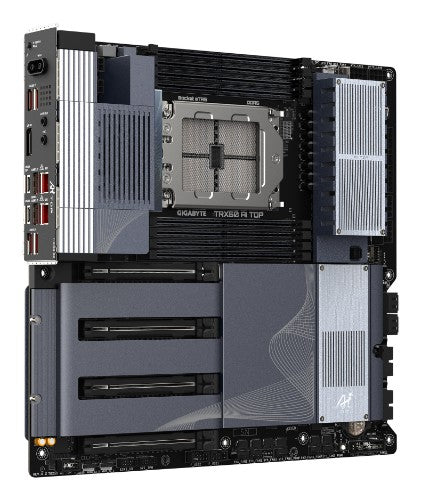

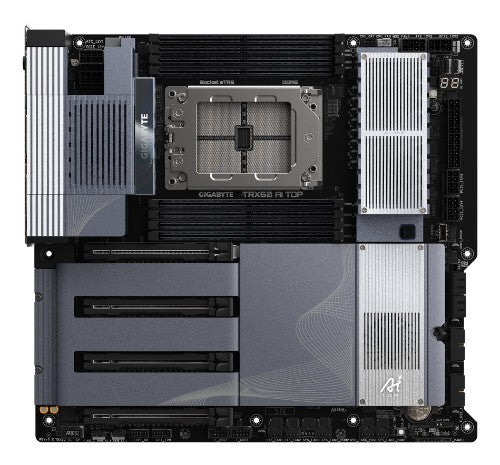

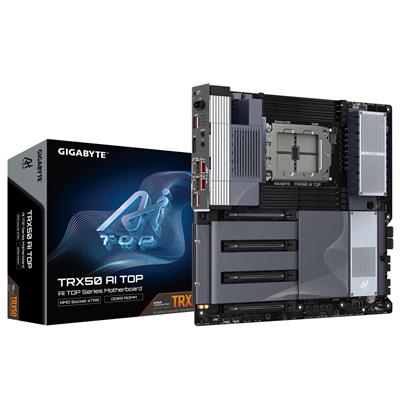

TRX50 AI TOP-2B Motherboard - AMD Ryzen Threadripper PRO 7000 CPUs, 16+8+4 Phases Digital VRM, up to 5200 MHz DDR5, 4xPCIe 5.0 M.2, Wi-Fi 7, 10 GbE LAN, USB 4

Key Features

• Training your own AI on your desk
• Socket sTR5: Supports AMD Ryzen Threadripper PRO 7000 series/ Ryzen Threadripper 7000 series Processors
• Breakthrough Performance：16+8+4 Phases Digital VRM Solution
• 8 Channel DDR5：8SMD ECC R-DIMMs with Maxmium 2TB capacity
• Reinforced Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard
• Ultimate Scalibility: 4PCIe 5.0 x16 slots for Multi-GPU and 4*PCIe 5.0 x4 M.2 slots
• Next-gen Connectivity: Dual USB4 Type-C ports
• Blazing Fast Networks: Dual 10GbE LAN, Wi-Fi 7 with Ultra-high gain directional antenna & WIFI EZ-Plug
• PCIe UD Slot X：PCIe 5.0 x16 slot with 10X strength for graphics card
• EZ-Latch Click：M.2 heatsinks with screwless design
• EZ-Latch Plus：M.2 slots with quick release design
• Hi-Fi Audio with DTS:X Ultra：ALC4080+ALC897 CODEC

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Specifications

Internal I/O
Number of M.2 (M) slots	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, PCI Express 5.0, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Number of SATA III connectors	4
Number of chassis fan connectors	6
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
USB 3.2 Gen 2x2 connectors	1
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	2
Number of water pump connectors	5
Number of temperature sensor headers	2
Number of noise detection headers	1
Number of RGB LED pin headers	4
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD TRX50
Supported processor sockets	Socket sTR5
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Parallel processing technology support	Not supported
Cooling type	Active
Motherboard form factor	Extended ATX
Component for	PC
Warranty period	3 year(s)
Audio
Audio output channels	2.0 channels
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 11 x64
Linux operating systems supported	Ubuntu 24.04 LTS
Motherboard chipset family	AMD
Motherboard chipset	AMD TRX50
RAID levels	0, 1, 10
Supported processor sockets	Socket sTR5
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Active
Audio output channels	2.0 channels
Motherboard form factor	Extended ATX
Component for	PC
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 7000 WX-Series
Supported processor sockets	Socket sTR5
Processor socket	Socket sTR5
Memory
Number of memory slots	8
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Quad-channel
Maximum internal memory	2 TB
Unbuffered memory	No
Supported memory clock speed (max)	5200 MHz
ECC сompatibility	ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 5.0, SATA III
RAID levels	0, 1, 10
Number of storage drives supported	8
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
HDCP	No
DirectX version	12.0

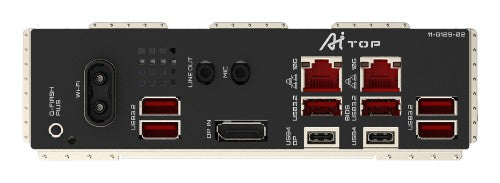

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	0
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
Headphone outputs	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	2
DVI-D ports quantity	0
DisplayPorts quantity	1
USB4 Gen 3x2 ports quantity	2
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
LAN controller	Marvell AQtion AQC113C
Ethernet interface type	2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	Qualcomm QCNCM865
Features
Power source type	ATX
Windows operating systems supported	Windows 11 x64
Linux operating systems supported	Ubuntu 24.04 LTS
Motherboard chipset family	AMD
Motherboard chipset	AMD TRX50
Supported processor sockets	Socket sTR5
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Active
Audio output channels	2.0 channels
Motherboard form factor	Extended ATX
Component for	PC
Product colour	Black
Expansion slots
Number of M.2 (M) slots	4
PCI Express x16 (Gen 5.x) slots	4
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	5.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	5.0
4th M.2 largest key size	2280
4th M.2 highest PCI Express generation	5.0
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS button	Yes
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Power
Power source type	ATX
Video
HDCP	No
DirectX version	12.0
Packaging data
Package width	379 mm
Package depth	397 mm
Package height	105 mm
Package weight	6.47 kg
Software
Windows operating systems supported	Windows 11 x64
Linux operating systems supported	Ubuntu 24.04 LTS
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China
Weight & dimensions
Height	35 mm
Package width	379 mm
Package depth	397 mm
Package height	105 mm
Package weight	6.47 kg
Width	305 mm
Depth	330 mm
Packaging content
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included	Yes
Screws included	Yes
Antenna included	Yes
Other features
Height	35 mm
Package width	379 mm
Package depth	397 mm
Package height	105 mm
Package weight	6.47 kg
