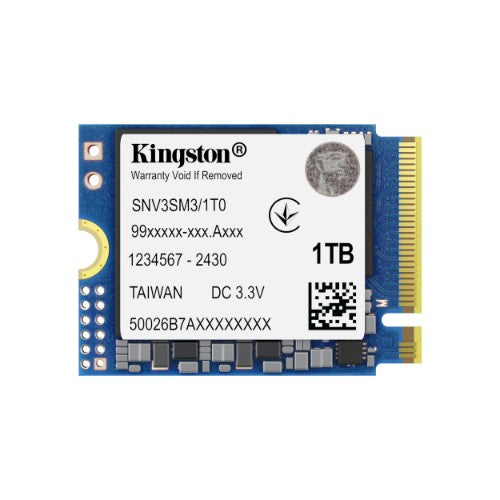

1000G NV3 M.2 2230 NVMe SSD

Key Features

• Gen 4x4 NVMe PCIe performance
• Ideal for high-speed, low-power storage
• Capacities up to 4TB**

Description

For high-speed, low-power storage needs
Kingston’s NV3 PCIe 4.0 NVMe SSDs are next-gen storage solutions powered by a Gen 4x4 NVMe controller, delivering read/write speeds of up to 6,000/5,000MB/s*. They come in both compact, single-sided M.2 2280 (22x80mm) and 2230 (22x30mm) sizes to expand storage in small-form-factor systems like laptops and handheld gaming consoles*****. They offer lower power consumption and reduced heat, optimising your system's performance without compromising value. Available in capacities from 500GB– 4TB** to give you all the space you need for applications, documents, photos, videos, games and more.


Gen 4x4 NVMe PCIe performance
Upgrade your system with read/write speeds up to 6,000/5,000MB/s*.

Small size, big performance
NV3 2280 and 2230 easily integrate into thin laptops and ultra-small PCs with M.2 connectors and limited space.

Increased storage space
Available in a variety of high capacities up to 4TB**, providing ample space to store files, videos, documents, and games with room to spare.

Store more, play more
With NV3 2230 upgrade compatible handheld gaming systems to get in the game faster*****.

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	1 TB
Memory type	3D NAND
Data transmission
Read speed	6000 MB/s
Write speed	4000 MB/s
Endurance
Mean time between failures (MTBF)	200000 h
Features
Interface	PCI Express 4.0
Component for	Notebook/Game console
NVMe	Yes
TBW rating	320
PCI Express interface data lanes	x4
SSD capacity	1 TB
Read speed	6000 MB/s
Write speed	4000 MB/s
Memory type	3D NAND
Mean time between failures (MTBF)	200000 h
SSD form factor	M.2
M.2 SSD size	2230 (22 x 30 mm)
Performance
Interface	PCI Express 4.0
Component for	Notebook/Game console
NVMe	Yes
TBW rating	320
PCI Express interface data lanes	x4
SSD capacity	1 TB
Read speed	6000 MB/s
Write speed	4000 MB/s
Memory type	3D NAND
Mean time between failures (MTBF)	200000 h
Design
Component for	Notebook/Game console
SSD form factor	M.2
Weight & dimensions
Width	30 mm
Weight	2.8 g
Height	2.3 mm
Depth	22 mm
Package width	101.6 mm
Package depth	8.13 mm
Package height	114.3 mm
Package weight	12.16 g
Packaging data
Package width	101.6 mm
Package depth	8.13 mm
Package height	114.3 mm
Package weight	12.16 g
Master (outer) case width	120.7 mm
Master (outer) case length	171.4 mm
Master (outer) case height	114.3 mm
Master (outer) case gross weight	389.82 g
Products per master (outer) case	25 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Non-operating vibration	20 G
Technical details
Interface	PCI Express 4.0
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Non-operating vibration	20 G
Country of origin	China, Taiwan
SSD form factor	M.2
Logistics data
Master (outer) case width	120.7 mm
Master (outer) case length	171.4 mm
Master (outer) case height	114.3 mm
Master (outer) case gross weight	389.82 g
Products per master (outer) case	25 pc(s)
Country of origin	China, Taiwan
Other features
Country of origin	China, Taiwan
