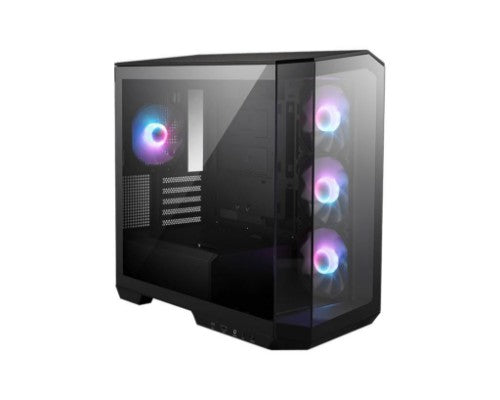

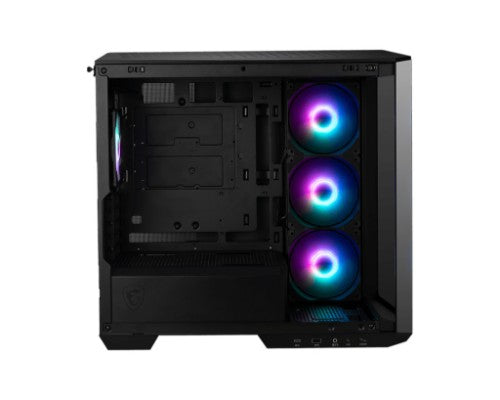

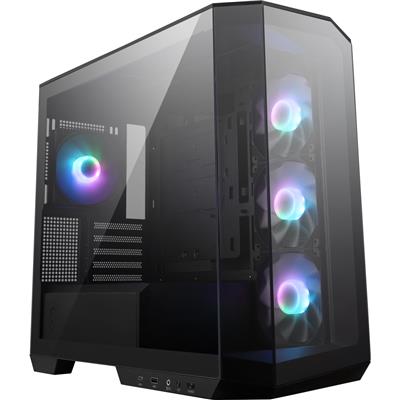

Micro- ATX Tower, 1 x 2.5”, 1 x 2.5”/3.5” combo, 440 x 235 x 405 mm, White

Key Features

• Micro-ATX Back-connect PROJECT ZERO motherboard supported
• Supports up to 360 mm AIO liquid cooler on the top
• 270-degree panoramic tempered glass
• Supports up to 10 x 120 mm system fans
• Built-in 1-to-4 ARGB-PWM fans and control board, providing striking lighting and vivid lighting effects
• The Magnetic Dust Filter at the bottom being easily removed for cleaning
• DIY Friendly cables make your DIY process easier and create more possibilities to your system

Description

The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

To meet the desire to show the ARGB PC build, the MAG PANO M100 Series comes with a 270-degree panoramic display, get more enhancement of aesthetically pleasing and cleanliness, supports a back-connect motherboard, and comes with the reverse-blade fan on the side, a 1-to-4 ARGB-PWM control board to let user organize cables easily.

FANCY APPEARANCE
Build and display the coolest PC with controllable ARGB lighting.

HARDWARE COMPATIBILITY
The gaming cases offers extensive support for the installation of your hardware components.

EASY TO INSTALL
The gaming case has many features that make the installation process all the easier.

BETTER TOGETHER
Synergize the MAG PANO M100R PZ series with a compatible MSI motherboard through bridging with a USB 3.2 Gen 2x2 Type-C port for high speed data transmission.

CONNECTABLE FRONT I/O
- USB 3.2 Gen 2x2 Type-C
- USB 3.2 Gen 1 Type-A
- Mic-in / Audio-out
- LED Switch
- Power

Specifications

Technical details
Number of 3.5" bays	1
Number of 2.5" bays	1
Supported motherboard form factors	ATX, micro ATX
Supported HDD sizes	2.5,3.5"
Suitable for	Gaming
Side window	Yes
Product colour	Black
Number of expansion slots	5
Maximum CPU cooler height	17.5 cm
Maximum graphics card length	39 cm
Maximum PSU length	20 cm
Type	PC
Form factor	Micro Tower
Indication
LED indicators	Yes
Illumination location	Case fans
Illumination colour	Multi
Illumination	Yes
Ergonomics
LED indicators	Yes
On/off button	Yes
Design
Number of 3.5" bays	1
Number of 2.5" bays	1
Supported motherboard form factors	ATX, micro ATX
Suitable for	Gaming
Side window	Yes
LED indicators	Yes
Illumination location	Case fans
Illumination colour	Multi
Illumination	Yes
Product colour	Black
Number of expansion slots	5
Maximum CPU cooler height	17.5 cm
Maximum graphics card length	39 cm
Maximum PSU length	20 cm
Type	PC
Form factor	Micro Tower
On/off button	Yes
Power supply
Power supply location	Bottom
Power supply shroud	Yes
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Audio input	Yes
Audio output	Yes
Cooling
Rear radiator sizes supported	120,140 mm
Top radiator sizes supported	120,240,360 mm
Side fans installed	3x 120 mm
Number of side fans supported (max)	3
Side fans diameters supported	120 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120,140 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Number of bottom fans supported (max)	1
Bottom fans diameters supported	120 mm
Storage
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Width	235 mm
Depth	440 mm
Height	405 mm
Weight	8.66 kg
Packaging data
Package weight	11.3 kg
