AMD/Intel, 2x 120 mm, 600-3000 RPM, 77 cfm, 6.9 mmH2O, FDB, PWM, 400-2500 RPM VRM, 800-2800 RPM Pump, 12 V DC

Reasons To Buy

Integrated VRM Fan

PWM-controlled fan lowers the voltage regulator temperature, ensuring stable performance.

Offset Mounting for Intel and AMD

Shifts the cold plate to the CPU hotspot for more efficient heat transfer.

Intel Contact Frame

Optimized contact pressure distribution for longer CPU lifespan and improved heat dissipation.

Integrated Cable Management

Fan cables integrated into the sleeving simplify installation and minimize cable clutter.

The New P12 Pro Fans More Performance at Any Speed

The P12 Pro unleashes its full potential: quieter and more powerful at low speeds, with greater performance reserves under load—for maximum cooling without compromise.

Speed
600—3000 rpm

Bearing
Fluid Dynamic Bearing

Static Pressure
6.9 mmH2O

Airflow
77 cfm | 131 m³/h

Premium-Class Radiator

The 38 mm radiator not only enhances heat dissipation but also holds more liquid than conventional 27 mm radiators. This reduces heat buildup and ensures more efficient handling of temperature spikes.

Premium Tubing

Reinforced EPDM tubing with braided sheathing for increased durability

Easy Installation

Pre-installed, pre-wired fans, straightforward mounting, and an animated online manual.

Includes MX-6 Thermal Paste

Simply apply in a cross pattern—the water pump’s cold plate distributes the paste evenly

Two Control Options

With the splitter cable, the pump, VRM fan, and radiator fans can be controlled separately or synchronized via a single PWM signal with the all-in-one cable.

Check Your Case for Compatibility

Please note that the Liquid Freezer requires at least 63 mm of clearance for installation

Description

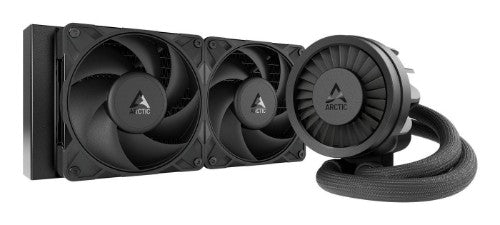

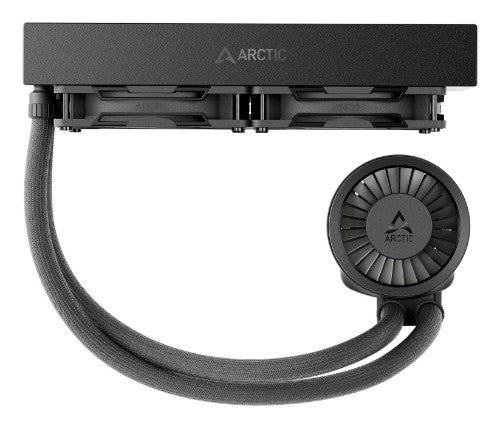

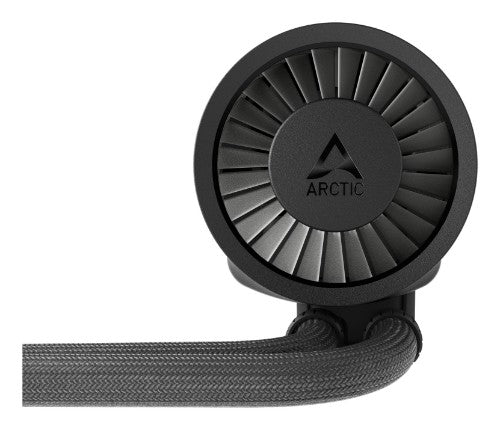

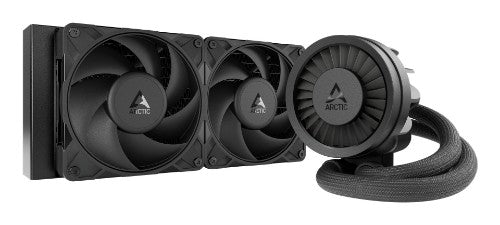

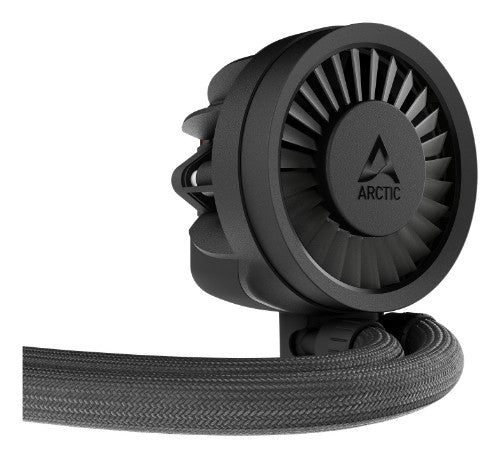

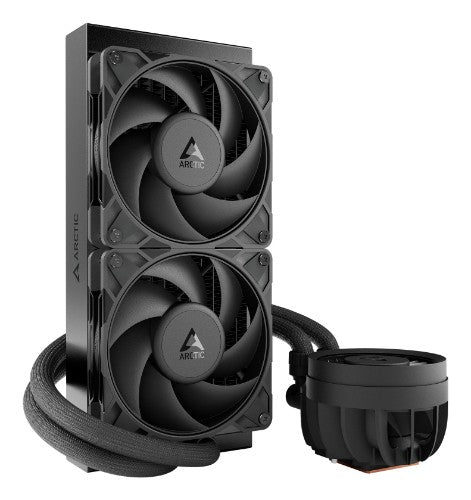

Outstanding cooling performance through liquid cooling. ARCTIC's Premium Liquid Freezer range offers impressively high performance at moderate prices without the complexity of conventional CPU water coolers. Completely maintenance-free, the all-in-one cooler with various models for smaller and larger cases covers all the most important current CPU sockets.

Specifications

Performance
Suitable location	Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Bearing type	Fluid Dynamic Bearing (FDB)
Type	All-in-one liquid cooler
Operating temperature (T-T)	0 - 40 °C
Fan diameter	12 cm
Supported processor sockets	Intel LGA1851, LGA 1700, Socket AM4, Socket AM5
Maximum airflow	77 cfm
Airflow	131 m³/h
Number of fans	2 fan(s)
Quantity per pack	1 pc(s)
Pump connector	4-pin
VRM fan speed (min)	400 RPM
VRM fan speed (max)	2500 RPM
Pump motor speed (min)	800 RPM
Pump motor speed (max)	2800 RPM
Fan static pressure	6.9 mmH2O
Fan speed (min)	600 RPM
Fan speed (max)	3000 RPM
Design
Fan connector	4-pin
Number of fans	2 fan(s)
Product colour	Black
Cable length	0.04 m
Radiator material	Aluminum
Base plate material	Copper
Technical details
Type	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	Intel LGA1851, LGA 1700, Socket AM4, Socket AM5
Maximum airflow	77 cfm
Airflow	131 m³/h
Number of fans	2 fan(s)
Cable length	0.04 m
Fan connector	4-pin
Ports & interfaces
Fan connector	4-pin
Pump connector	4-pin
Power
Pump voltage	12 V
Pump current	350 mA
Fan voltage	12 V
Fan current	0.33 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Package depth	294 mm
Package width	171 mm
Package height	142 mm
Package weight	2.06 kg
Weight	1.68 kg
Cable length	0.04 m
Radiator width	12 cm
Radiator depth	27.7 cm
Radiator height	3.8 cm
Tube length	45 cm
Tube inner diameter	6 mm
Tube diameter	1.24 cm
Pump width	9.1 cm
Pump depth	10.8 cm
Pump height	6.85 cm
Packaging data
Package depth	294 mm
Package width	171 mm
Package height	142 mm
Package weight	2.06 kg
Package type	Hanging box
Packaging content
Package type	Hanging box
Other features
Country of origin	Hong Kong
Pump connector	4-pin
