£168.17
Spread the cost over 3, 6 or 12 months with orders over £50.
Free next working day delivery!
Description

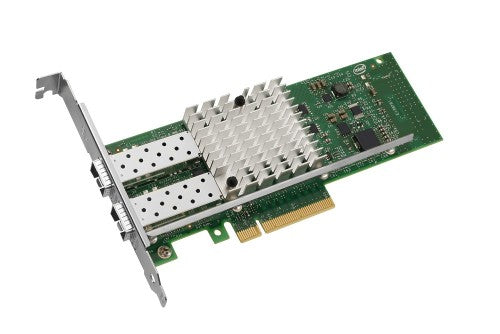

Ethernet Server Adapter X520-DA2
The Intel® Ethernet X520 Server Adapter family addresses the demanding needs of the next-generation data center by providing unmatched features for virtualization, flexibility for LAN and SAN networking, and proven, reliable performance.
Features and benefits
-
Intel® 82599 10 Gigabit Ethernet Controller
Industry-leading, energy-efficient design for next-generation 10 Gigabit performance and multi-core processors;
-
Low-profile
Enables higher bandwidth and throughput from standard and low-profile PCIe slots and servers;
-
Load balancing on multiple CPUs
Increases performance on multi-processor systems by efficiently balancing network loads across
CPU cores when used with Receive-Side Scaling (RSS) from Microsoft or Scalable I/O on Linux*;
-
iSCSI remote boot support
Provides centralized storage area network (SAN) management at a lower cost than other iSCSI solutions;
-
Support for most network operating systems (NOS)
Enables widespread deployment;
-
RoHS-compliant2
Complies with the European Union directive 2002/95/EC to reduce the use of hazardous materials;
-
Intel® PROSet utility for Microsoft Windows* Device Manager
Provides point-and-click management of individual adapters, advanced adapter features, connection
teaming, and virtual local area network (VLAN) configuration;
-
Time Sync (IEEE 1588, 802.1as)
Lets networked Ethernet equipment synchronize internal clocks according to a network master clock;
endpoint can then acquire an accurate estimate of the master time by compensating for link latency;
Description
Intel’s new family of Intel® Ethernet X520 Server Adapters are the most flexible and scalable Ethernet adapters for today’s demanding data center environments.The Intel® Ethernet X520 Server Adapter family addresses the demanding needs of the next-generation data center by providing unmatched features for virtualization, flexibility for LAN and SAN networking, and proven, reliable performance.
Features and benefits
-
Intel® 82599 10 Gigabit Ethernet Controller
Industry-leading, energy-efficient design for next-generation 10 Gigabit performance and multi-core processors;
-
Low-profile
Enables higher bandwidth and throughput from standard and low-profile PCIe slots and servers;
-
Load balancing on multiple CPUs
Increases performance on multi-processor systems by efficiently balancing network loads across
CPU cores when used with Receive-Side Scaling (RSS) from Microsoft or Scalable I/O on Linux*;
-
iSCSI remote boot support
Provides centralized storage area network (SAN) management at a lower cost than other iSCSI solutions;
-
Support for most network operating systems (NOS)
Enables widespread deployment;
-
RoHS-compliant2
Complies with the European Union directive 2002/95/EC to reduce the use of hazardous materials;
-
Intel® PROSet utility for Microsoft Windows* Device Manager
Provides point-and-click management of individual adapters, advanced adapter features, connection
teaming, and virtual local area network (VLAN) configuration;
-
Time Sync (IEEE 1588, 802.1as)
Lets networked Ethernet equipment synchronize internal clocks according to a network master clock;
endpoint can then acquire an accurate estimate of the master time by compensating for link latency;
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 2.0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Ethernet LAN (RJ-45) ports | 2 |
| Interface | Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Data transfer rate | 10 Gbit/s |
| Full duplex | Yes |
| Maximum data transfer rate | 10000 Mbit/s |
| Network | |
| Data transfer rate | 10 Gbit/s |
| Maximum operating distance | 10 m |
| LAN controller | Intel® 82599 |
| Full duplex | Yes |
| Ethernet LAN data rates | 10,1000 Mbit/s |
| Maximum data transfer rate | 10000 Mbit/s |
| Technical details | |
| Interface type | PCIe v2.0 (5.0 GT/s) |
| Compliance industry standards | IEEE 802.3 |
| Plug and Play | Yes |
| Storage-over-ethernet | Yes |
| Speed & slot width | 5.0 GT/s, x8 Lane |
| PCI-SIG* SR-IOV Capable | Yes |
| On-chip QoS and Traffic Management | Yes |
| Message signal interrupt | Yes |
| Low halogen options available | No |
| iWARP/RDMA | No |
| Intelligent Offloads | Yes |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Ethernet Power Management | Yes |
| Intel Data Direct I/O Technology | Yes |
| Fiber Channel over Ethernet | Yes |
| Storage Over Ethernet | iSCSI, FCoE, NFS |
| Harmonized System (HS) code | 85176990 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G135872 |
| Thermal Design Power (TDP) | 8.6 W |
| Product type | Network Interface Card |
| Processor family | 500 Network Adapters (up to 10GbE)-500 Network Adapters (up to 10GbE) |
| Status | Launched |
| Product brief URL | https://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x520-server-adapters-brief.html |
| Network interface card type | Server |
| Network interface card cable medium | Copper |
| Market segment | Server |
| Launch date | Q3'09 |
| Last change | 64826816 |
| Design | |
| Certification | FCC B, UL, CE, VCCI, BSMI, CTICK, KCC |
| Plug and Play | Yes |
| Internal | Yes |
| Product family | Intel 10 Gigabit server adapter |
| Product series | 500 Series Network Adapters (up to 10GbE) |
| Product codename | Spring Fountain |
| Indication | |
| Link/Act LED | Yes |
| System requirements | |
| Compatible operating systems | https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Width | 145.5 mm |
| Performance | |
| Ethernet adapter ARK ID | 39776 |
| Plug and Play | Yes |
| Storage-over-ethernet | Yes |
| Speed & slot width | 5.0 GT/s, x8 Lane |
| PCI-SIG* SR-IOV Capable | Yes |
| On-chip QoS and Traffic Management | Yes |
| iWARP/RDMA | No |
| Intelligent Offloads | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Ethernet Power Management | Yes |
| Intel Data Direct I/O Technology | Yes |
| Fiber Channel over Ethernet | Yes |
| Certificates | |
| Certification | FCC B, UL, CE, VCCI, BSMI, CTICK, KCC |
| Other features | |
| Compatible operating systems | https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html |
| Thermal Design Power (TDP) | 8.6 W |
| Product type | Network Interface Card |
| Processor family | 500 Network Adapters (up to 10GbE)-500 Network Adapters (up to 10GbE) |
| Ethernet adapter ARK ID | 39776 |
| Interface type | PCIe v2.0 (5.0 GT/s) |
| Data transfer rate | 10 Gbit/s |
| Compliance industry standards | IEEE 802.3 |
| Cable type | SFP+ Direct Attached Twin Axial Cabling up to 10m |
| Storage-over-ethernet | Yes |
| Speed & slot width | 5.0 GT/s, x8 Lane |
| Ports quantity | 2 |
| PCI-SIG* SR-IOV Capable | Yes |
| On-chip QoS and Traffic Management | Yes |
| Message signal interrupt | Yes |
| Low halogen options available | No |
| Link/Act LED | Yes |
| iWARP/RDMA | No |
| Intelligent Offloads | Yes |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Ethernet Power Management | Yes |
| Intel Data Direct I/O Technology | Yes |
| Fiber Channel over Ethernet | Yes |
| Storage Over Ethernet | iSCSI, FCoE, NFS |
| Status | Launched |
| Product brief URL | https://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x520-server-adapters-brief.html |
| Network interface card type | Server |
| Network interface card cable medium | Copper |
| Market segment | Server |
| Launch date | Q3'09 |
| Last change | 64826816 |
| Product family | Intel 10 Gigabit server adapter |
| Product series | 500 Series Network Adapters (up to 10GbE) |
| Product codename | Spring Fountain |
| Harmonized System (HS) code | 85176990 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G135872 |
| Controller type | Intel® 82599 10 Gigabit Ethernet Controller |
| Cabling type | SFP+ Direct Attached Twin Axial Cabling up to 10m |
| Bracket height | Low-Profile (LP) / Full-Height (FH) |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
