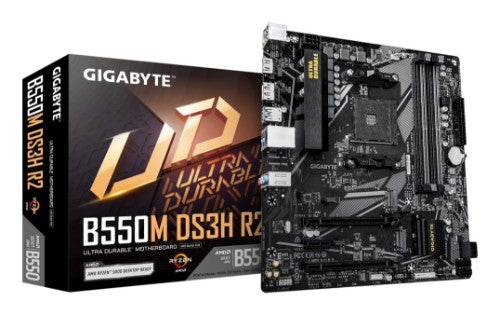

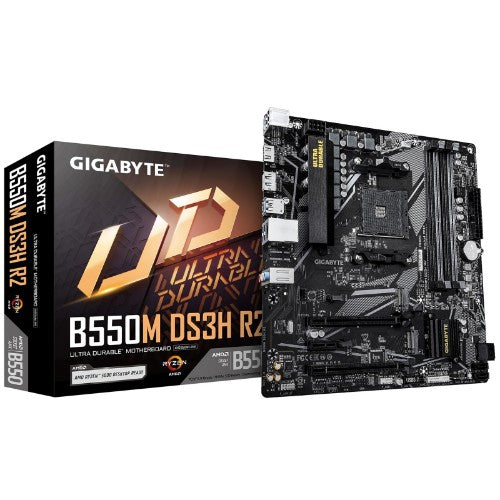

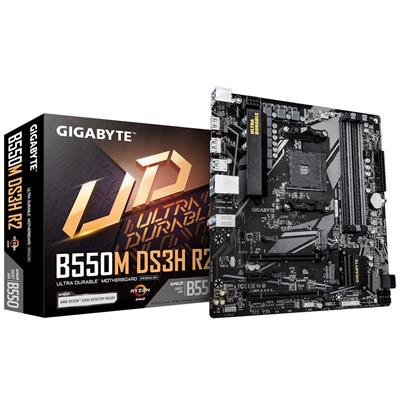

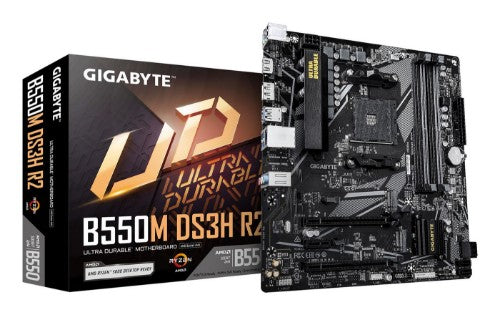

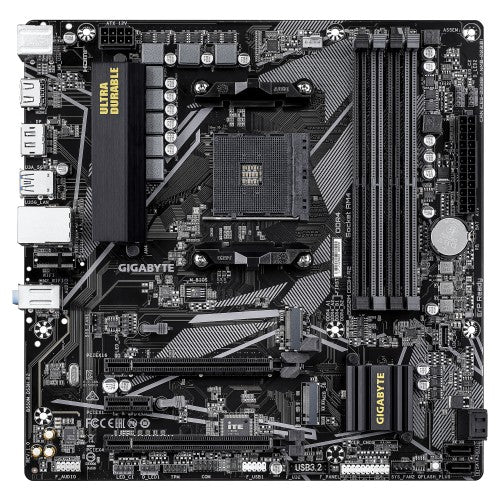

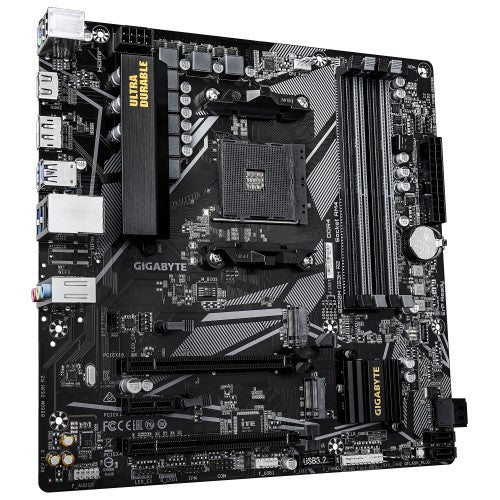

B550M DS3H R2 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4 (O.C.), 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1

Key Features

• AMD Socket AM4：Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors
• Digital 5+3 phases VRM solution
• Dual Channel DDR4: 4*DIMMs
• EZ-Latch：PCIe slots with Quick Release Design
• Ultra-Fast Storage: 2*M.2 slots, including PCIe 4.0 x1
• Efficient Thermal: VRM Thermal Armor Advanced
• Fast Networking: GbE LAN
• Extended Connectivity: HDMI, Displayport
• PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
Supported storage drive interfaces	M.2, PCI Express 3.0, PCI Express 4.0, SATA III
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Serial port headers	1
Number of SATA III connectors	4
Number of chassis fan connectors	2
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Number of CPU fan connectors	1
Number of EPS power connectors (8-pin)	1
Number of RGB LED pin headers	5
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
Supported processor sockets	Socket AM4
Serial port headers	1
PC health monitoring	Fan, Temperature, Voltage
Parallel processing technology support	Not supported
HDMI version	2.1
Cooling type	Passive
Motherboard form factor	micro ATX
Component for	PC
Warranty period	3 year(s)
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
RAID levels	0, 1, 10
Supported processor sockets	Socket AM4
PC health monitoring	Fan, Temperature, Voltage
Cooling type	Passive
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Supported processor sockets	Socket AM4
Processor socket	Socket AM4
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	4733 MHz
ECC сompatibility	ECC & Non-ECC
Maximum internal memory per slot	32 GB
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 3.0, PCI Express 4.0, SATA III
RAID levels	0, 1, 10
Number of storage drives supported	6
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
Maximum resolution	5120 x 2880 pixels
HDCP	Yes
DirectX version	12.0

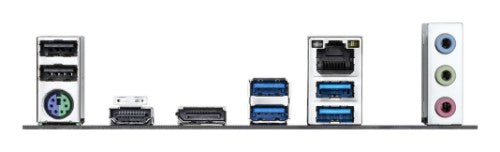

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPort version	1.4
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	0
PS/2 ports quantity	1
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Features
Power source type	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
Supported processor sockets	Socket AM4
PC health monitoring	Fan, Temperature, Voltage
Cooling type	Passive
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Audio chip	Realtek ALC1220-VB
Product colour	Dark brown
Expansion slots
Number of M.2 (M) slots	2
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	3.0
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	128 Mbit
ACPI version	5.0
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Power
Power source type	ATX
Video
Maximum resolution	5120 x 2880 pixels
HDCP	Yes
DirectX version	12.0
Packaging data
Package width	265 mm
Package depth	265 mm
Package height	54 mm
Package weight	947 g
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Weight & dimensions
Height	35 mm
Package width	265 mm
Package depth	265 mm
Package height	54 mm
Package weight	947 g
Weight	870 g
Width	244 mm
Depth	244 mm
Packaging content
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included	Yes
Screws included	Yes
Other features
Height	35 mm
Package width	265 mm
Package depth	265 mm
Package height	54 mm
Package weight	947 g
Weight	870 g
