120 mm, 420-2100 RPM, 34.6 dB, PWM, ARGB, 3-pack

Key Features

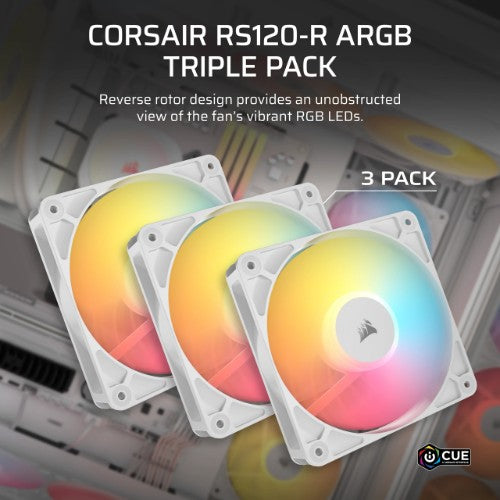

• Reverse rotor for a flawless aesthetic as an intake fan
• Daisy-chained 4-pin PWM connectors and +5V ARGB lighting
• Eight RGB LEDs per fan
• Magnetic Dome bearing for longevity and low noise
• Zero RPM mode at low loads

Description

VIBRANT VISIBILITY
FLAWLESS INTAKE LIGHTING
The reverse rotor fan design ensures your RGB lighting remains clearly visible when mounted as intake fans, with eight customizable RGB LEDs per fan creating dynamic, vibrant lighting.

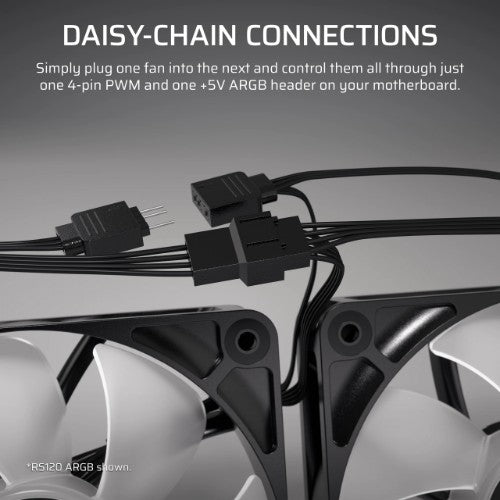

STREAMLINED FAN CONNECTIONS
Skip the fan hubs and cable clutter by daisy chaining your RS-R ARGB Series fans in sequence, controlling them all through just one 4-pin PWM connector and one +5V ARGB connector on your motherboard.

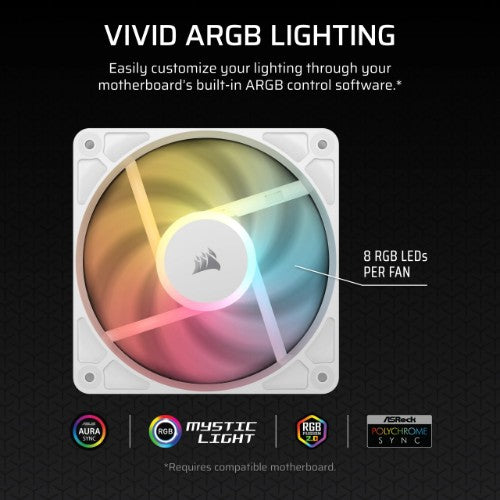

LIGHTING MADE EASY
Simply plug in the fans and start customizing your RGB lighting with your motherboard’s ARGB software suite, including ASUS Aura Sync, MSI Mystic Light, ASRock Polychrome RGB, and Gigabyte RGB Fusion.

AIRFLOW AND STATIC PRESSURE
The best fans rely on several features, each focusing on how the fan handles air pressure and airflow as a radiator or case fan. RS-R ARGB fans were engineered to excel at both, offering concentrated cooling and powerful airflow with low noise.

BLADE SHAPE
With an optimized angle of attack, airfoil shape, and edge curvature, RS-R fans provide maximum airflow efficiency.

FAN HOUSING
The fan housing was designed to support the largest possible blade radius within its size limit for greater airflow.

PRECISE PWM CONTROL
PWM control allows adjustable fan speeds for optimal airflow and quiet operation based on system needs.

EVERY SOURCE OF NOISE ADDRESSED
MAGNETIC DOME BEARING
This carefully-engineered bearing minimizes friction and mechanical noise, delivering a balance between high airflow performance with a low acoustic footprint while providing greater fan longevity.

WHISPER QUIET
ZERO RPM MODE
PWM control allows you to precisely adjust fan speeds, ensuring they spin only as fast as necessary to minimize noise. With Zero RPM support, fans can stop spinning completely at low loads, eliminating noise altogether.

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (min)	420 RPM
Rotational speed (max)	2100 RPM
Noise level (low speed)	10 dB
Noise level (high speed)	34.6 dB
Type	Fan
Fan diameter	12 cm
Minimum airflow (imperial)	13.33 cfm
Maximum airflow	65.82 cfm
Minimum air pressure	0.14 mmH2O
Maximum air pressure	2.81 mmH2O
Quantity per pack	3 pc(s)
Design
Fan connector	4-pin
Illumination colour	Multi
Product colour	White
Illumination LED	Yes
Number of LEDs	8
Technical details
Noise level (low speed)	10 dB
Noise level (high speed)	34.6 dB
Type	Fan
Fan diameter	12 cm
Minimum airflow (imperial)	13.33 cfm
Maximum airflow	65.82 cfm
Minimum air pressure	0.14 mmH2O
Maximum air pressure	2.81 mmH2O
Fan connector	4-pin
Illumination LED	Yes
Ports & interfaces
Fan connector	4-pin
Power
LED voltage	5 V
Fan current	0.4 A
Colour
Product colour	White
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Weight	704 g
Indication
Illumination colour	Multi
Packaging data
Package type	Box
Packaging content

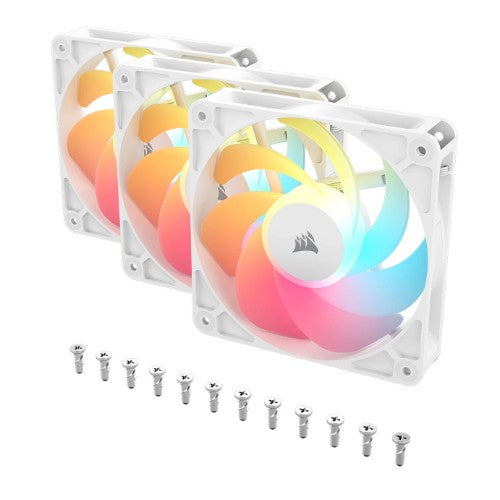

Screws included	Yes
Number of screws	12
Package type	Box
Other features
LED voltage	5 V
