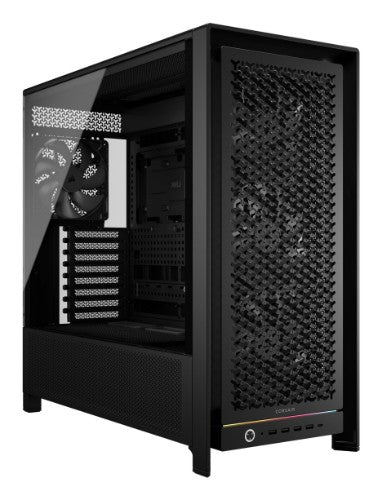

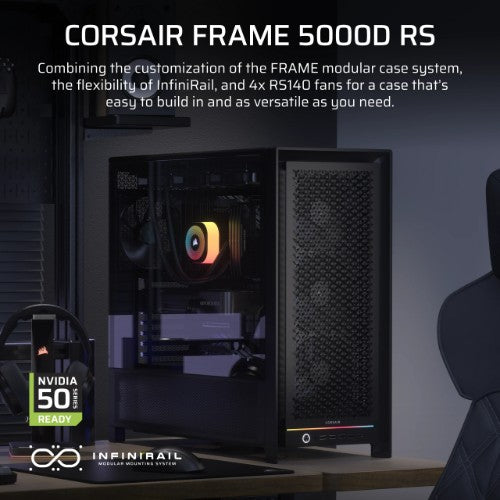

Midi Tower, Mini-ITX/Micro-ATX/ATX/E-ATX, Steel/Tempered Glass, 1x USB 3.2 Gen 2 Type-C, 4x USB 3.2 Gen 1 Type-A, 1x Audio in/out

Key Features

• Fully-modular design for next-level customization
• 4x RS140 Fans with daisy-chain connections
• InfiniRail Fan Mounting System for easier building
• Triple 360mm radiator support
• GPU anti-sag stabilization arm
• Compatible with reverse connector motherboards
• RapidRoute 2.0 pegboard motherboard tray and cable looms

Description

BUILD WITH THE BEST
50 SERIES GPUs ARE HERE
Pair a next-gen GPU with quality CORSAIR components for top-shelf performance and no hassles, right out of the box.

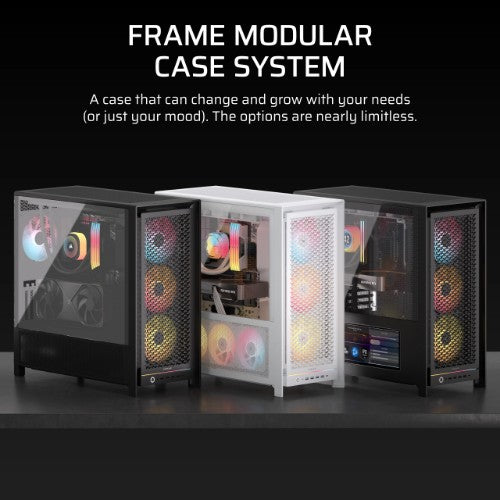

BUILD YOUR WAY
ENDLESS MODULAR POSSIBILITIES
The revolutionary FRAME Modular Case System redefines customization. Want to upgrade the motherboard tray to billet aluminum? Want to replace your front I/O panel for more USB ports? Now you can.

This case evolves with your needs, offering near limitless options for upgrades and changes.

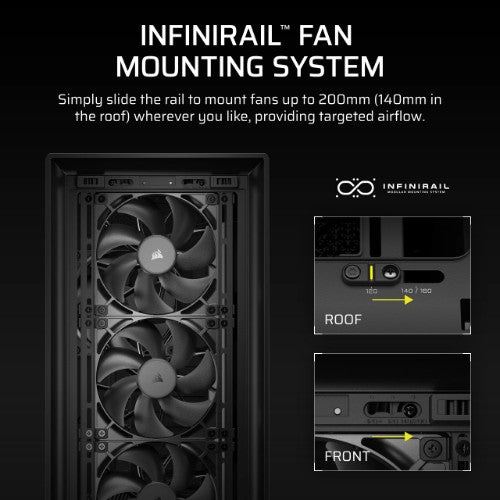

FAN FOCUSED
INFINIRAIL FAN MOUNTING SYSTEM
This steel multi-point mounting system provides unmatched flexibility for front and roof fan configurations. Easily slide the rail to mount fans up to 200mm (140mm in the roof) exactly where you need them, ensuring targeted airflow without limitations of fixed mounting points.

MORE ROOM TO CHILL
SUPPORT FOR UP TO A 420mm RADIATOR
Boost your cooling with three mounting locations for up to a 420mm radiator up top and 360mm on the front and the side. You can mount up to 14x 120mm fans simultaneously, ensuring continuous cool air intake and efficient hot air exhaust.

AIR BENDING
FOUR RS140 FANS INCLUDED
RS140 PWM fans feature daisy-chainable connections for easy setup. Their magnetic dome bearings minimize friction, delivering a perfect combination of high airflow and quiet operation.

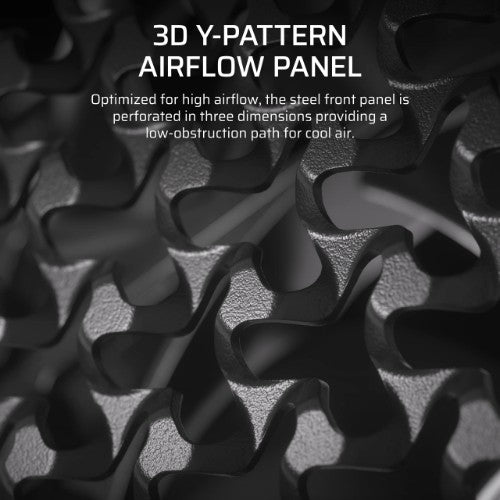

IMPROVED COOLING
UP TO 12% MORE AIRFLOW
Engineered for maximum airflow and minimal resistance, the new 3D Y-pattern steel front panel ensures a smooth, unobstructed path for cool air, enhancing overall cooling.

MAKE IT YOUR OWN
DESIGNED TO BE MODIFIED
Customize the FRAME 5000D with a variety of premium, easy-to-install accessories.

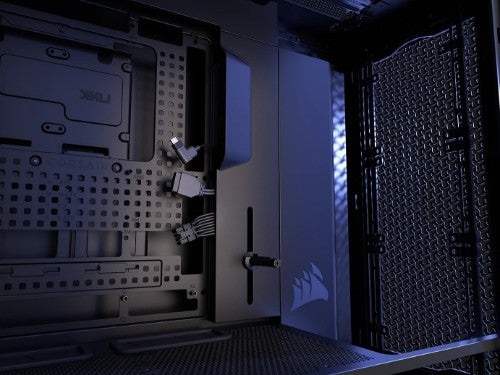

NEXT-LEVEL CABLE MANAGEMENT
RAPIDROUTE 2.0
CORSAIR has upgraded RapidRoute to version 2.0, featuring a pegboard motherboard tray with detachable and rotatable tie-down buckles and all-new cable looms to easily wrap excess cable lengths for a tidy and professional appearance.

FUTURE PROOF
GET IN THE FRAME
Ensure your build has excellent airflow with careful cable routing and support for the latest motherboards and graphics cards.

NO VISIBLE CABLES 
Fully compatible with reverse-connector motherboards from Asus, MSI, and Gigabyte, allowing for unobstructed airflow and a super-clean build.

SAG-FREE GRAPHICS CARDS
Every CORSAIR FRAME 5000D includes a GPU Anti-sag Stabilization Arm to keep your GPU steady, so you never have to worry about damaging your PCIe slot.

CABLE SHROUD
Keep unused and overly long cables out of sight with the cable shroud for a clean and organized interior.

ARGB LIGHT STRIP
An RGB light strip above the front I/O adds a dash of customizable color to the front of the chassis.

WIDE COOLING FLEXIBILITY
Customize your cooling setup with room for up to 14x 120mm fans, plus versatile radiator mounting options including up to triple 360mm radiators in the roof, front, and side.

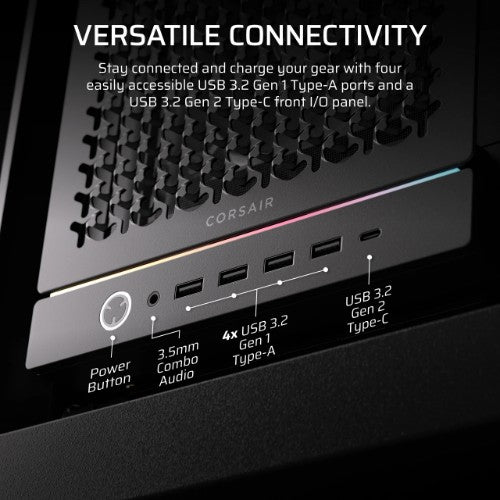

MODERN FRONT PANEL I/O
Puts your connections within easy reach, including a USB 3.2 Gen 2 Type-C Port, 4x USB 3.2 Gen 1 Type-A ports, and a combination audio/microphone jack.

Specifications

Technical details
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	6
Supported motherboard form factors	ATX, EATX, micro ATX, Mini-ITX
Supported HDD sizes	2.5,3.5"
Suitable for	Gaming
Side window	Yes
Product colour	Black
Number of expansion slots	8
Maximum CPU cooler height	17.5 cm
Maximum graphics card length	45 cm
Type	PC
Form factor	Midi Tower
Warranty period	2 year(s)
Material
Material	Plastic, Steel, Tempered glass
Indication
Illumination location	Front
Illumination colour	Multi
Illumination	Yes
Ergonomics
Cable management	Yes
On/off button	Yes
Design
Anti-dust filter	Yes
Material	Plastic, Steel, Tempered glass
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	6
Supported motherboard form factors	ATX, EATX, micro ATX, Mini-ITX
Suitable for	Gaming
Side window	Yes
Illumination location	Front
Illumination colour	Multi
Illumination	Yes
Cable management	Yes
Product colour	Black
Number of expansion slots	8
Maximum CPU cooler height	17.5 cm
Maximum graphics card length	45 cm
Type	PC
Form factor	Midi Tower
On/off button	Yes
Tempered glass panel(s)	Yes
Power supply
Supported power supply form factors	ATX
Power supply included	No
Ports & interfaces
USB 3.2 Gen 2x2 Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 2.0 ports quantity	0
Combo headphone/mic port	Yes
Cooling
Front radiator sizes supported	240,280,360 mm
Rear radiator sizes supported	120,240 mm
Top radiator sizes supported	240,280,360,420 mm
Front fans installed	3x 140 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140,200 mm
Number of side fans supported (max)	3
Side fans diameters supported	120,140 mm
Rear fans installed	1x 140 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120,140 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Number of bottom fans supported (max)	4
Bottom fans diameters supported	120 mm
Side radiator sizes supported	240,280,360 mm
Pulse-width modulation (PWM) support	Yes
Storage
Supported HDD sizes	2.5,3.5"
SSD form factor	2.5"
Packaging content
Manual	Yes
Weight & dimensions
Width	250 mm
Depth	556 mm
Height	542 mm
Weight	15.5 kg
Packaging data
Manual	Yes
Other features
Manual	Yes
