420 mm Single-Frame RGB Fan Unit, 3 x 140mm, 500 - 2000 RPM, 98.61 CFM, 3.2 mm H2O, 34.5 dBA, 12V, 0.95A, 11.4W, 8 LEDs, PWM, White

Key Features

• Single-frame unit with integrated fans streamlines installation, setup, and lighting control—no need to connect individual fans.
• Simply connect a single cable to an NZXT controller (sold separately) for lighting and speed control via NZXT CAM software. Or, connect to any motherboard's 5V ARGB header using the included splitter cable. using the included splitter cable.
• Fan blade design boosts static pressure to push air through tight spaces while ensuring optimal airflow. Suitable for both intake and exhaust.
• Fluid dynamic bearings ensure quiet, stable operation across an exceptional 60,000 hour lifespan.
• Eight individually-addressable RGB LEDs per fan hub are diffused through semi-translucent blades for brilliantly colorful visuals.
• PWM-controlled fans dynamically adjust spinning speeds based on PC temperatures for optimal efficiency and reduced noise.
• Anti-vibration rubber corners effectively eliminate noise caused by vibrations for hushed performance at any speed.
• Control lighting and fan speeds via CAM software when connected to an NZXT controller (sold separately).

Description

NZXT F Series RGB Core single-frame fans seamlessly integrate multiple fans for effortless installation while offering superior cooling, whisper-quiet performance, and striking RGB visuals.

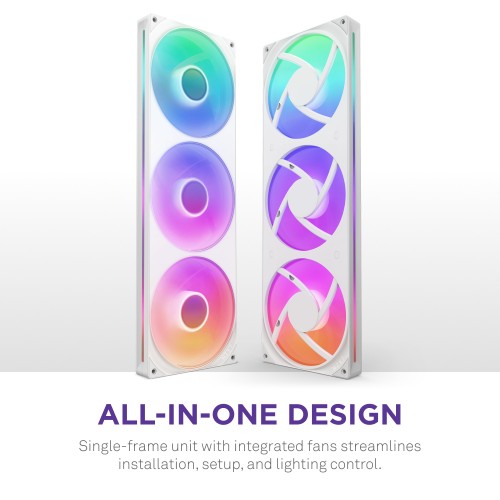

All-in-one Design
Single-frame unit with integrated fans streamlines installation, setup, and lighting control.

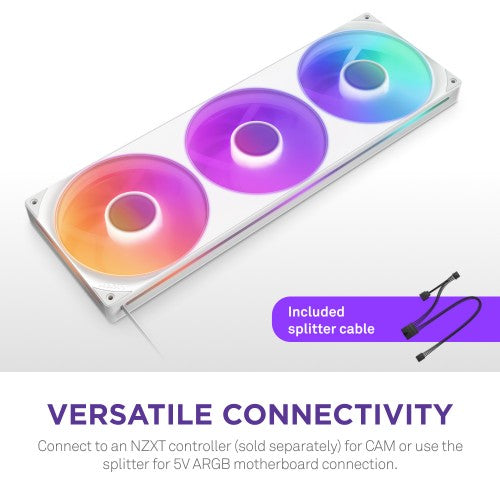

Versatile Connectivity
Simply connect a single cable to an NZXT controller (sold separately) for lighting and speed control via NZXT CAM software. Or, connect to any motherboard's 5V ARGB header using the included splitter cable.

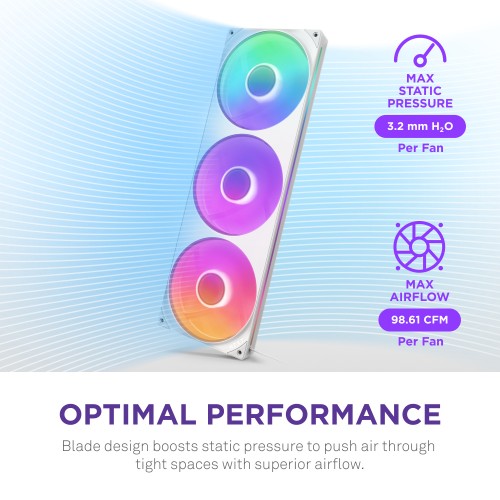

Optimal Performance
Blade design boosts static pressure to push air through tight spaces with superior airflow.

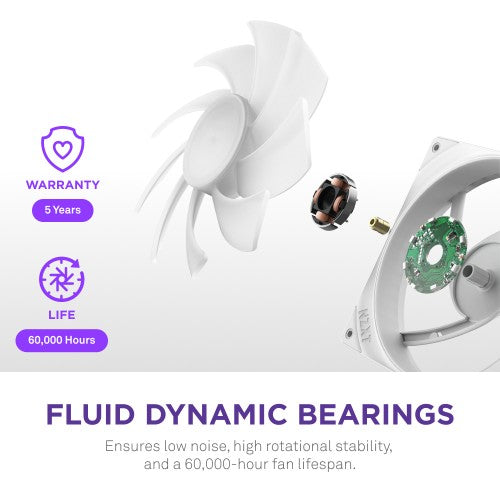

Fluid Dynamic Bearings
Ensures low noise, high rotational stability, and a 60,000-hour fan lifespan.

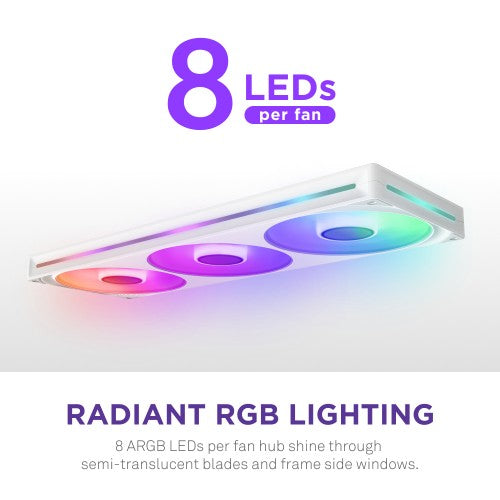

Radiant RGB Lighting
8 aRGB LEDs per fan hub shine through semi-translucent blades and frame side windows.

PWM Control
Dynamically adjusts fan speeds based on PC temperatures for optimal efficiency.

Silent Operation
Anti-vibration rubber corners dampen noise and Zero RPM Mode* shuts fans off during light loads.

Do More with CAM
Control fan speeds, personalize lighting effects, and sync with other NZXT products.

Specifications

Performance
Suitable location	Computer case
Fan connector	8-pin
Pulse-width modulation (PWM) support	Yes
Bearing type	Fluid Dynamic Bearing (FDB)
Type	Fan
Fan diameter	14 cm
Maximum airflow	98.61 cfm
Number of fans	3 fan(s)
Quantity per pack	1 pc(s)
Fan static pressure	3.2 mmH2O
Fan speed (min)	500 RPM
Fan speed (max)	2000 RPM
Fan's mean time to failure (MTTF)	60000 h
Design
Fan connector	8-pin
Number of fans	3 fan(s)
Material	Plastic, Rubber
Illumination colour	Multi
Product colour	White
Cable length	600 m
Illumination LED	Yes
Number of LEDs	8
Technical details
Type	Fan
Fan diameter	14 cm
Maximum airflow	98.61 cfm
Number of fans	3 fan(s)
Material	Plastic, Rubber
Cable length	600 m
Noise level	34.5 dB
Fan connector	8-pin
Illumination LED	Yes
Warranty period	5 year(s)
Ports & interfaces
Fan connector	8-pin
Power
Fan power consumption	11.4 W
Fan voltage	12 V
Fan current	0.95 A
Colour
Product colour	White
Weight & dimensions
Fan dimensions (W x D x H)	140 x 140 x 26 mm
Width	140 mm
Depth	26 mm
Height	420 mm
Cable length	600 m
Indication
Illumination colour	Multi
Packaging content
Screws included	Yes
Number of screws	4
Other features
Noise level	34.5 dB
