Intel N N97 (6MB Cache), 8GB DDR5-SDRAM, 256GB SSD, Intel UHD Graphics, LAN, WLAN, Bluetooth, Windows 11 Pro

Key Features

• Windows 11 Pro
• Intel N N97 (6MB Cache)
• 8GB (4800MHz) DDR5-SDRAM & 256GB SSD

Description

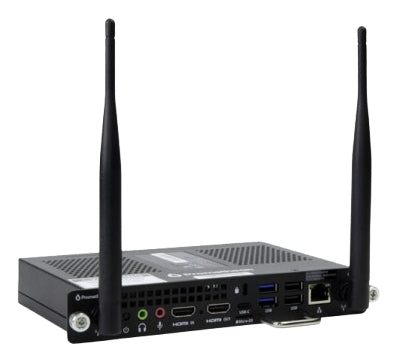

Promethean OPS-M Windows

Connect to the Microsoft ecosystem
Promethean’s OPS-M is an Intel?-based module for schools using the Microsoft? ecosystem. Pair it with your ActivPanel interactive display to create an all-in-one large format Windows experience.

All the flexibility you need
This intelligent and flexible computing module gives you the freedom to choose the interactive display operating system that works best for your IT ecosystem.

Quick updates are a breeze
The OPS-M can be slotted neatly into the ActivPanel and making updates is quick and easy.

Specifications

Processor
Processor cache type	Smart Cache
Processor cache	6 MB
Processor model	N97
Processor manufacturer	Intel
Processor boost frequency	3.6 GHz
Processor cores	4
Processor family	Intel® N
Memory
Internal memory	8 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	4800 MHz
Storage
Storage media	SSD
Number of storage drives installed	1
Optical drive type	No
SSD capacity	256 GB
Number of SSDs installed	1
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Total storage capacity	256 GB
Total SSDs capacity	256 GB
Graphics
Discrete graphics card	No
On-board graphics card family	Intel® UHD Graphics
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.2
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
LAN controller	Realtek RTL8111H
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
USB 2.0 ports quantity	2
Microphone in	Yes
Headphone outputs	1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
Technical details
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	Mini PC
Compliance certificates	RoHS
Design
Product colour	Black
Chassis type	Mini PC
Performance
Market positioning	OPS
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	Windows 11 Pro
Power
Power consumption (standby)	0.5 W
Power consumption (max)	60 W
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 45 °C
Certificates
Certification	CB, CE, FCC, UL, RCM
Compliance certificates	RoHS
Weight & dimensions
Package width	268 mm
Package depth	216 mm
Package height	55 mm
Width	200 mm
Depth	120 mm
Height	30 mm
Package weight	1.1 kg
Weight	700 g
Packaging data
Package width	268 mm
Package depth	216 mm
Package height	55 mm
Package weight	1.1 kg
Packaging content
Display included	No
Display
Display included	No
Other features
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	Intel
