Mid-Tower, 2 x 2.5“, 2 x 3.5“, ATX, 420 x 225 x 485 mm

Key Features

• 270-Degree Display: The chassis features a 270-degree panoramic design with tempered glass, providing an expansive view to showcase detailed components
• Measurements: Supports multiple motherboard sizes, including regular ATX, Micro-ATX, Mini-ITX and back-connect ATX and Micro-ATX, allowing users to customize their PC setup
• Pre-build with Reverse Blades Fan: Pre-installed reverse blade fans on the side ensure an unobstructed display of the ARGB fan’s lighting effects, free from interference by fan frames
• ARGB-Fan Control Board: The 1-to-5 ARGB fan control board supports up to 5 ARGB fans, allowing users to adjust 18 ARGB lighting effects with a single LED switch button
• Upgrade Airflow Layout: Supports up to 10 fans, a 360mm radiator on top and a 120mm radiator at rear. The lower chamber, surrounded by vents, further enhances heat dissipation for optimal performance

Description

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

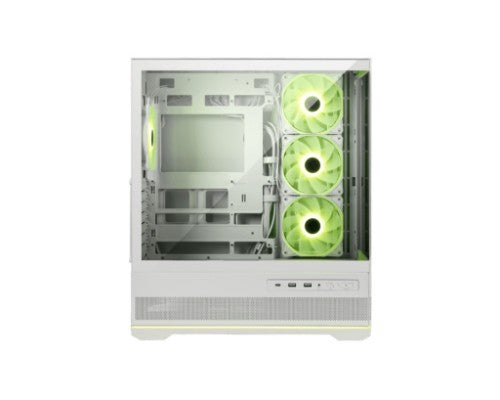

To fulfill the desire for showcasing an ARGB PC build, the MAG PANO 110R Series features a 270-degree panoramic display, enhancing aesthetics and maintaining a clean design.

Decorated with a metal nameplate to highlight the MAG family identity.

Featuring a 1-to-5 ARGB fan control hub, this system is fully compatible with MSI Mystic Light, allowing for easy sync and customizable ARGB lighting effects.

Pre-installed with 3 x ARGB reverse blade fans at the side and 1 x ARGB fan at the rear for optimal airflow and a clean, stylish design.

Specifications

Technical details
Number of 3.5" bays	2
Number of 2.5" bays	2
Supported motherboard form factors	ATX, micro ATX, Mini-ATX
Supported HDD sizes	2.5,3.5"
Suitable for	Gaming
Side window	Yes
Product colour	White
Number of expansion slots	7
Maximum CPU cooler height	16 cm
Maximum graphics card length	20 cm
Maximum PSU length	40 cm
Type	PC
Form factor	Midi Tower
Material
Material	Tempered glass
Indication
LED indicators	Yes
Illumination location	Case fans
Ergonomics
LED indicators	Yes
On/off button	Yes
Design
Material	Tempered glass
Number of 3.5" bays	2
Number of 2.5" bays	2
Supported motherboard form factors	ATX, micro ATX, Mini-ATX
Suitable for	Gaming
Side window	Yes
LED indicators	Yes
Illumination location	Case fans
Product colour	White
Number of expansion slots	7
Maximum CPU cooler height	16 cm
Maximum graphics card length	20 cm
Maximum PSU length	40 cm
Type	PC
Form factor	Midi Tower
On/off button	Yes
Power supply
Supported power supply form factors	ATX
Power supply included	No
Power supply location	Bottom
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Combo headphone/mic port	Yes
Cooling
Rear radiator sizes supported	120 mm
Top radiator sizes supported	120,240,360 mm
Side fans installed	3x 120 mm
Number of side fans supported (max)	3
Side fans diameters supported	120,140 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Number of bottom fans supported (max)	3
Bottom fans diameters supported	120,140,160 mm
Bottom radiator sizes supported	120,240,360 mm
Side radiator sizes supported	120,240,360 mm
Storage
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Width	225 mm
Depth	420 mm
Height	485 mm
