Intel Core Ultra 5 Processor 125H, 2 x SO-DIMM DDR5-5600 max. 64GB, M.2-2280M, Intel Arc graphics, 2 x 2.5G Ethernet LAN, 120W

Description

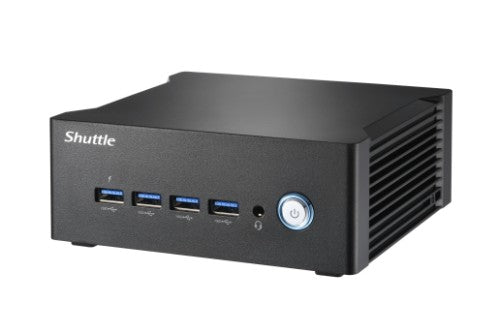

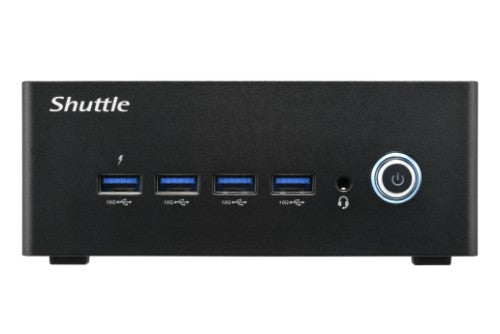

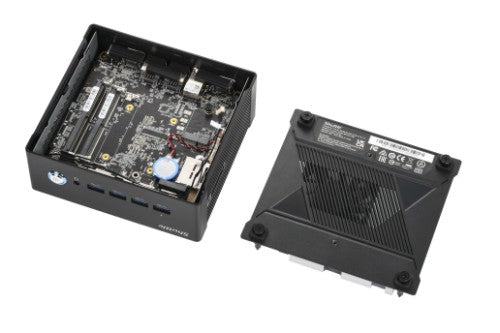

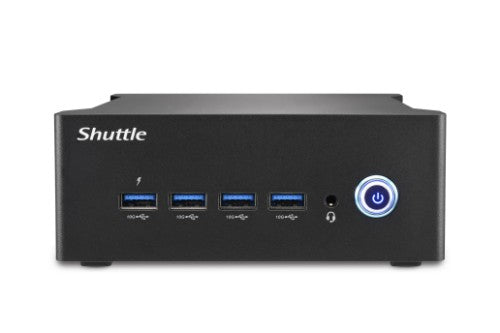

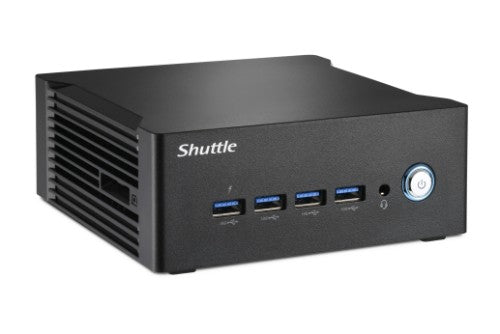

The Shuttle nano Barebone NT10H Series is designed as a compact, 1-litre nano-style mini-PC with enhanced features and efficiency for multitasking and AI workloads. Equipped with Intel® Core™ Ultra processors with integrated Intel® Arc™ graphics and AI Boost NPU, it effortlessly handles demanding graphics processing. It supports output to four 4K/UHD displays and offering comprehensive connectivity including dual USB4, dual 2.5G Intel® LAN, and PCIe 4.0 SSD slot. This powerhouse is ideal for gaming, AI inference, image processing, and multimedia content creation tasks, delivering powerful performance at an affordable price point, empowering both everyday tasks and professional projects with outstanding results.

Specifications

Motherboard
Motherboard chipset	Intel SoC
Processor
Built-in processor	Yes
Processor model	125H
Processor boost frequency	4.5 GHz
Processor threads	18
Processor cores	14
Processor family	Intel Core Ultra 5
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Processor cache	18 MB
Performance cores	4
Efficient cores	8
Performance-core Max Turbo Frequency	4.5 GHz
Efficient-core Max Turbo Frequency	3.6 GHz
Performance-core base frequency	1.2 GHz
Efficient-core base frequency	0.7 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor generation	Intel® Core™ Ultra (Series 1)
Memory
Memory voltage	1.1 V
Memory slots type	SO-DIMM
Number of memory slots	2
Memory channels	Dual-channel
ECC	No
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	5600 MHz
Maximum internal memory	64 GB
Non-ECC	Yes
Internal memory installed	No
Video
On-board graphics card	Yes
Graphics card family	Intel
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2
Storage drive interface	PCI Express
Compatible memory cards	SD
Card reader integrated	Yes
SSD form factor	M.2
NVMe	Yes
Storage drives installed	No
Graphics
Maximum resolution	3840 x 2160 pixels
Number of displays supported	4
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card model	Intel Arc Graphics
Audio
Built-in speaker(s)	No
Audio chip	Realtek ALC269
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Intel I226-V

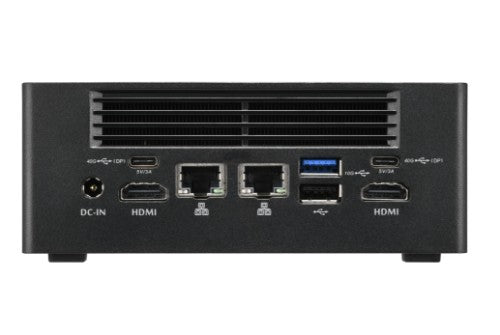

Ports & interfaces
Combo headphone/mic port	Yes
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
HDMI version	2.0
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	2
USB4 Gen 2x2 ports quantity	2
Design
VESA mounting	Yes
Product type	Mini PC barebone
Housing material	Plastic
Cable lock slot type	Kensington
Cable lock slot	Yes
On/off switch	Yes
Panel mounting interface	75 x 75,100 x 100 mm
Cooling type	Active
Product colour	Black
Chassis type	1L sized PC
Performance
Maximum resolution	3840 x 2160 pixels
Windows operating systems supported	Windows 11 x64
Linux operating systems supported	Yes
BIOS type	UEFI AMI
Number of displays supported	4
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Motherboard chipset	Intel SoC
Audio chip	Realtek ALC269
Harmonized System (HS) code	84733080
Processor special features
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Low Power Efficient-core Base Frequency	700 MHz
Colour
Product colour	Black
Technical details
BIOS type	UEFI AMI
Cable lock slot type	Kensington
Cable lock slot	Yes
Panel mounting interface	75 x 75,100 x 100 mm
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Quick start guide	Yes
Processor cores	14
Cooling type	Active
Chassis type	1L sized PC
Sustainability certificates	ENERGY STAR, ErP
Compliance certificates	BSMI, CE, Federal Communications Commission (FCC), RoHS, cTUVus
Packaging data
Power cord included	Yes
AC adapter included	Yes
Package weight	1.7 kg
Software
Windows operating systems supported	Windows 11 x64
Linux operating systems supported	Yes
Management features
On/off switch	Yes
Features
Number of displays supported	4
Logistics data
Harmonized System (HS) code	84733080
Sustainability
Sustainability certificates	ENERGY STAR, ErP
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
AC adapter output voltage	19 V
AC adapter output current	6.32 A
Power supply type	External AC adapter
Power supply	120 W
Number of power supply units	1
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	132 mm
Depth	143 mm
Height	55 mm
Package weight	1.7 kg
Weight	800 g
Packaging content
Power cord included	Yes
AC adapter included	Yes
Quick start guide	Yes
Other features
Chassis type	1L sized PC
