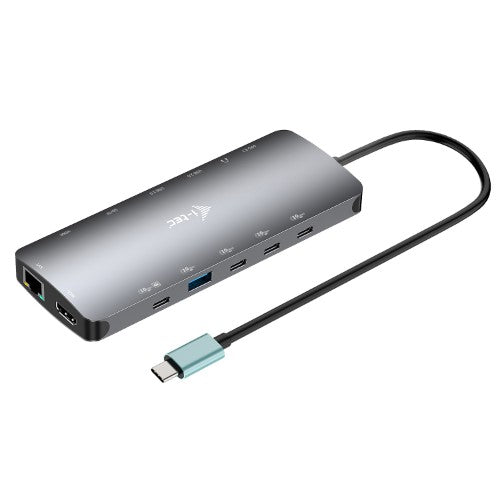

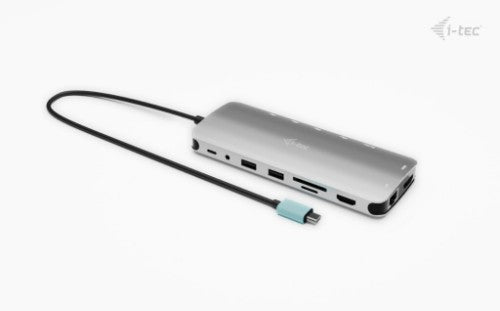

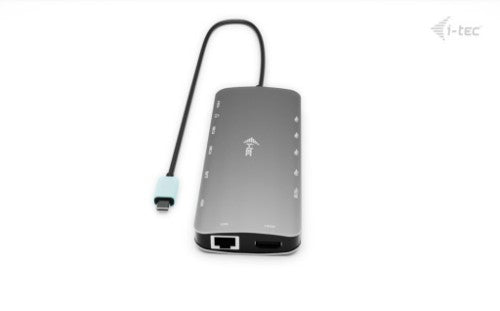

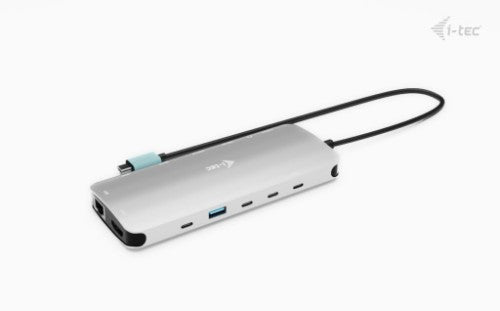

USB-C Metal Nano 3x Display Dock, 2x HDMI 1x USB-C video + Power Delivery 140W

Key Features

• Small, yet powerful metal USB-C dock that can connect up to three external monitors
• Brushed aluminum construction ensures the dock is durable enough to withstand frequent travel
• Two HDMI ports and one USB-C video/data port are available to connect your screens
• 4x USB-C, 1x USB-A 3.2 and 2x USB-A 2.0 port allow you to easily connect your USB devices and peripherals
• GLAN Ethernet supports network speeds of 10/100/1000 Mbps, providing robust and high-speed internet connectivity
• The combined 3.5mm audio/mic port can connect, for example, integrated headphones with microphone
• The docking station supports up to 140W of power to a connected laptop or tablet
• Note: Power supply is not included. The docking station can be used with the power supply that came with the laptop. You may also consider purchasing a product set containing a 140W power supply with part number C31NANOTRIPLED140 (C31NANOTRIPLED140UK)

Description

Small but very powerful metal USB-C docking station capable of supporting up to three external monitors simultaneously*. Simply connect your laptop or tablet (no need to install drivers) and reap the benefits of quick USB data transfer, connection to the internet via a LAN port, and the ability to connect your headset. And of course, the docking station can also power your laptop with up to 140 W **, meaning you will be able to charge all laptops and tablets that support charging via USB-C (USB-C Power Delivery).

Brushed aluminium body grants the docking station sufficient durability and resilience even during frequent travel. The integrated USB-C cable is sufficiently long for comfortable connection even if the USB-C port is located in the upper portion of the screen frame (typical for hybrid laptops/tablets).

The docking station is also fully compatible with tablets and laptops featuring a modern Thunderbolt port.

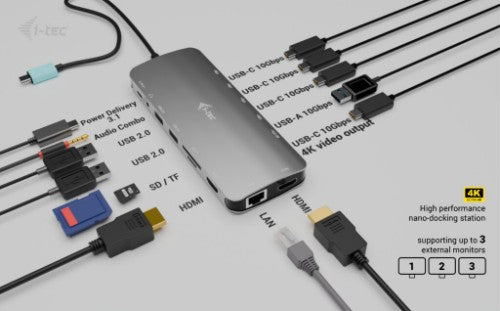

- Connect up to three external monitors
- Power delivery: up to 140 W **
- Fitted with two HDMI and one USB-C video port
- 1x USB-C vith video 4K/60 and data (10 Gbps) 3x USB-C (10Gbps), 1x USB-A 10 Gbps) and 2x USB-A 2.0 ports will allow you to easily connect your monitor, USB devices and peripherals.
- Gigabit Ethernet RJ-45 provides reliable, robust and high-speed Internet connection supporting 10/100/1000 Mbps speeds
- Combined jack for audio and microphone on the front panel
- Supports Windows 10/11, macOS, Android, Chrome OS and Linux

* macOS does not support Multi Stream Transport (MST) technology, meaning that when connected to a device running macOS, all connected external monitors will display the same image.

** If your laptop or tablet supports the new and modern USB-C Power Delivery PD 3.1 charging protocol, the docking station will offer charging power up to 140W (if you have PD 3.0 protocol, the charging power will be up to 100W)

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	4
Headphone connectivity	3.5 mm
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.1
USB Power Delivery up to	140 W
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	3
Product colour	Grey
Card reader integrated	Yes
Data transfer rate	10 Gbit/s
Compatible memory cards	MicroSD (TransFlash), SD
Housing material	Aluminium
Technical details
Product colour	Grey
Data transfer rate	10 Gbit/s
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	ChromeOS
Mobile operating systems supported	Android, iOS, iPadOS
Weight & dimensions
Weight	142 g
Width	155.2 mm
Depth	60.3 mm
Height	18 mm
Design
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Product colour	Grey

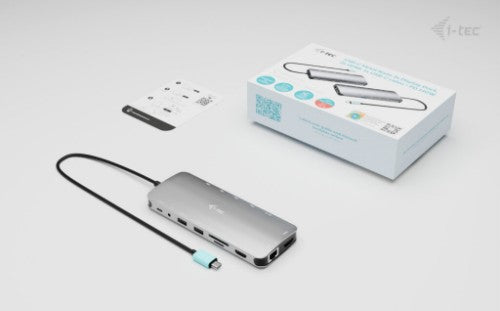

Packaging content
Quick start guide	Yes
