92 mm, 450-4300 RPM, PWM, 58.25 cfm / 98.97 m³/h, 6.17 mmH2O, FDB, 12 V DC, 0.34 A, 105 g

Reasons To Buy

Powerful Cooling

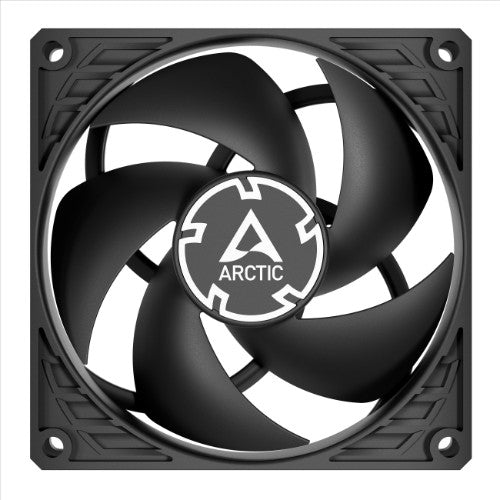

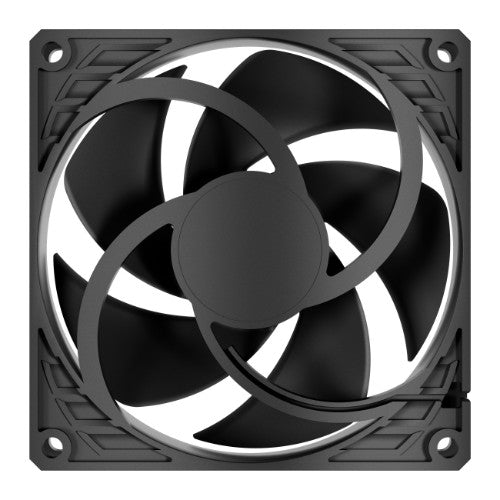

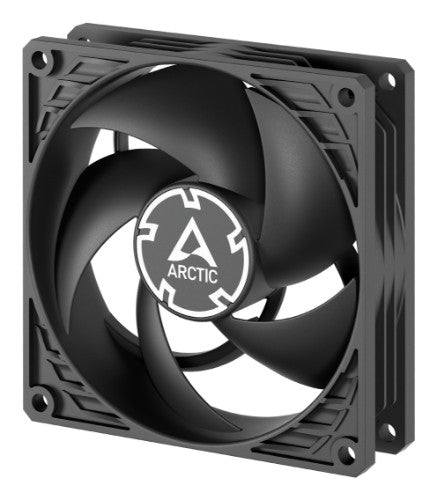

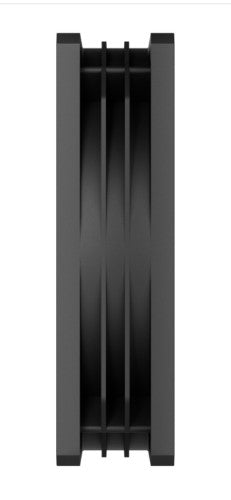

The P9 Max is a powerful 92 mm fan with 450 to 4300 rpm.The fan delivers a static pressure of 6.17 mmH2O and generates an airflow of up to 58.25 cfm. It offers precise control of the fan speed via pulse width modulation (PWM) and is highly efficient at 0.34 A. In addition, it has a 0 dB mode for silent operation in IDLE.

Extremely Wide Speed Range

The P9 Max enables precise fan speed via pulse width modulation control, which can be adapted to the individual cooling requirements. The P9 Max enables silent operation when only a low airflow is required and provides a high performance level if needed.

Optimised for High Static Pressure

The P9 Max delivers a focused airflow and guarantees a good airflow even with particularly high static pressure. Therefore, the P9 Max is also specially suitable for use on heat sinks, radiators, pinholes and filters.

0 dB Mode - Zero rpm

The speed of the fan can be throttled down to a standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required. This enables the P9 Max to be extremely flexible in adjusting the speed to optimally regulate the airflow for every case.

Virtually Silent due Fluid Dynamic Bearing

As a special feature, the P9 Max is equipped with ARCTIC's proven Hydrodynamic Bearing. This enables the virtually silent operation at low speeds. At maximum speed, brute performance is still guaranteed. Although these bearings tend to wear out, ARCTIC does not compromise on durability and still offers the 6-year warranty.

Quality You Can Rely On

To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee.

Description

ARCTIC’s versatile assortment of Fans is both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our Fans are equipped with state-of-the-art engine technology, innovative fan blades and high-quality bearings, making them particularly durable and efficient.

Specifications

Performance
Suitable location	Computer case
Pulse-width modulation (PWM) support	Yes
Bearing type	Fluid Dynamic Bearing (FDB)
Type	Fan
Operating temperature (T-T)	0 - 40 °C
Fan diameter	9.2 cm
Maximum airflow	58.25 cfm
Airflow	98.97 m³/h
Number of fans	1 fan(s)
Quantity per pack	1 pc(s)
Fan static pressure	6.17 mmH2O
Fan speed (min)	450 RPM
Fan speed (max)	4300 RPM
Design
Number of fans	1 fan(s)
Product colour	Black
Cable length	0.4 m
Technical details
Type	Fan
Fan diameter	9.2 cm
Maximum airflow	58.25 cfm
Airflow	98.97 m³/h
Number of fans	1 fan(s)
Cable length	0.4 m
Power
Starting voltage	5 V
Fan voltage	12 V
Fan current	0.34 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	92 x 92 x 25 mm
Package depth	96 mm
Package width	96 mm
Package height	27 mm
Package weight	124 g
Weight	105 g
Cable length	0.4 m
Packaging data
Package depth	96 mm
Package width	96 mm
Package height	27 mm
Package weight	124 g
Package type	Box
Packaging content
Package type	Box
