Intel Core 7 240H processor, 2 x SO-DIMM, DDR5

Key Features

• Powered by Intel® Core™ Ultra processors (Series 2), delivering up to 99 Platform TOPS and an 18% boost in performance gen-on-gen
• Supports up to 96GB dual-channel DDR5-6400 memory for seamless multitasking and high-speed workloads
• Features Intel® Arc™ Graphics for AI acceleration and stunning visual performance, with Intel® vPro® for enterprise-grade security and management
• Includes PCIe Gen5 NVMe SSD and Gen4 expansion slots for ultra-fast storage and flexibility
• Connects up to four 4K displays via dual HDMI 2.1 and Thunderbolt™ 4 with DisplayPort 2.1 and USB4 compatibility
• Offers advanced connectivity with Intel® Wi-Fi 7, Bluetooth® 5.4, and multiple high-speed USB 3.2 Gen2 ports
• Compact 0.48L design with tool-less chassis enables quick upgrades and effortless deployment
• Built for reliability with MIL-STD-810H certification, efficient cooling, and eco-friendly packaging for sustainability

Description

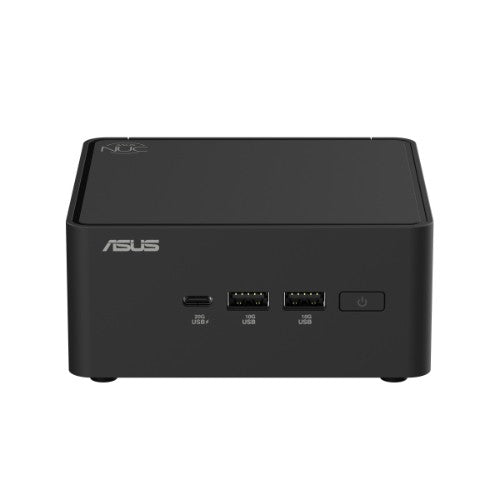

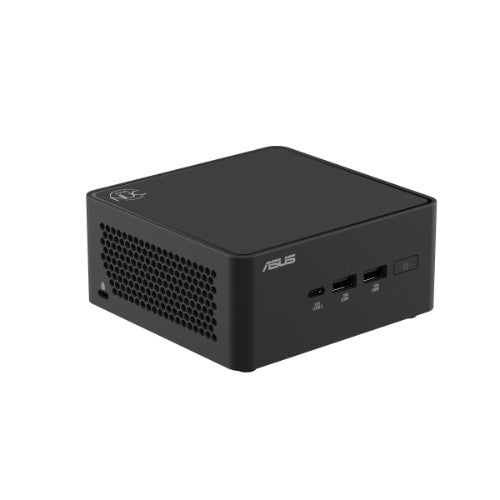

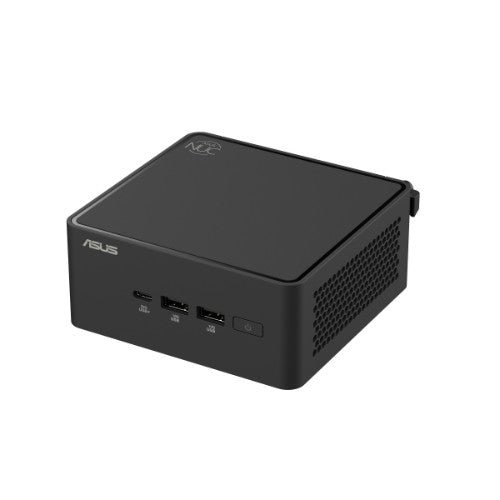

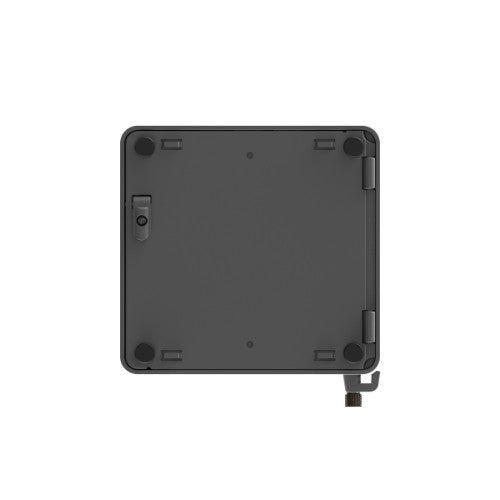

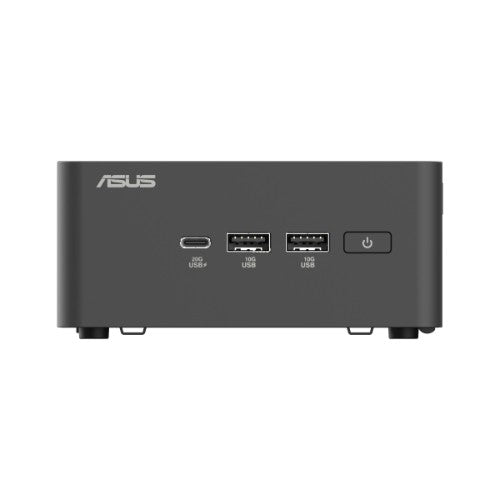

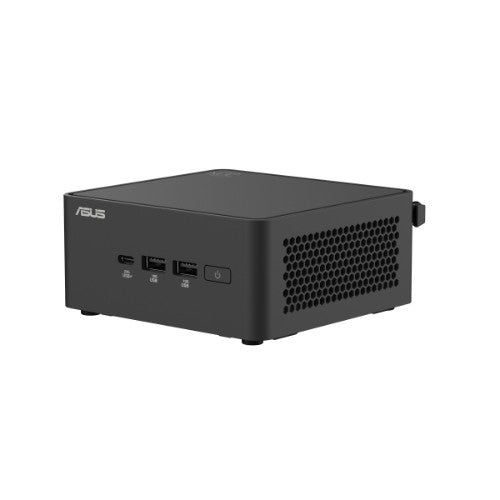

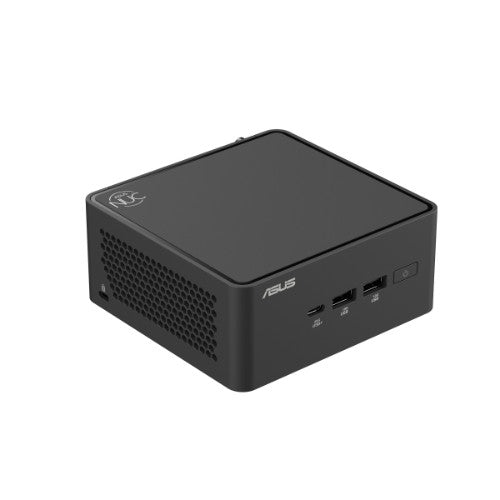

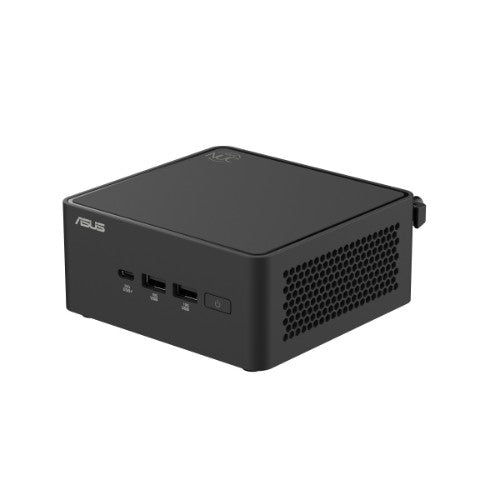

ASUS NUC 15 Pro
Best Compact Choice for the AI-Driven Future.
Experience the future of computing with ASUS NUC 15 Pro – a sleek mini PC that’s perfect for office and edge computing. Powered by the latest Intel® Core™ Ultra processor with DDR5 6400MHz memory and Intel Arc™ graphics, ASUS NUC 15 Pro delivers unmatched speed and efficiency in a scratch-resistance matte texture chassis

Specifications

Processor
Built-in processor	Yes
Processor boost frequency	5.2 GHz
Processor threads	16
Processor cores	10
Processor family	Intel Core 7
Processor manufacturer	Intel
Processor cache	24 MB
Performance cores	6
Efficient cores	4
Performance-core Max Turbo Frequency	5.2 GHz
Efficient-core Max Turbo Frequency	4 GHz
Performance-core base frequency	2.5 GHz
Efficient-core base frequency	1.8 GHz
Processor cache type	Smart Cache
Processor generation	Intel Core (Series 2)
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Maximum internal memory	96 GB
Internal memory installed	No
Video
On-board graphics card	Yes
Graphics card family	Intel
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2
Storage drive interface	M.2
Number of storage drives supported	1
Maximum storage capacity	8 TB
Storage drives installed	No
Graphics
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card model	Intel Graphics
Audio
Built-in speaker(s)	No
Network
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth version	5.4
Bluetooth	Yes
Ethernet LAN	Yes
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Ports & interfaces
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
HDMI version	2.1
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
Thunderbolt 4 ports quantity	2
Design
Product type	Mini PC barebone
Cable lock slot type	Kensington
Cable lock slot	Yes
On/off switch	Yes
Cooling type	Active
Product colour	Black
Colour
Product colour	Black
Technical details
Cable lock slot type	Kensington
Cable lock slot	Yes
Processor cores	10
Cooling type	Active
Management features
On/off switch	Yes
Power
AC adapter output voltage	19 V
AC adapter output current	6.32 A
Power supply type	External AC adapter
Power supply	120 W
Weight & dimensions
Width	117 mm
Depth	112 mm
Height	54 mm
Weight	600 g
