Intel Core Ultra 5 225H and Intel Arc Graphics, Unleashing Unmatched Performance

Key Features

• Powered by Intel® Core™ Ultra Processors (Series 2) with up to 99 TOPS and 18% faster gen-on-gen performance for seamless operations
• Advanced thermal design ensures ultra-quiet cooling with 1.2x reduced noise for a refined experience
• Intel® Wi-Fi 7 and Bluetooth® 5.4 deliver up to 2.4x faster speeds and reliable, seamless connectivity
• Sleek 0.7L chassis with tool-free upgrades combines elegance with effortless customization
• Supports up to four 4K displays via HDMI 2.1 and Thunderbolt™ 4, with smart power-off for energy efficiency
• Built from sustainable materials, offering enduring quality with eco-conscious design

Description

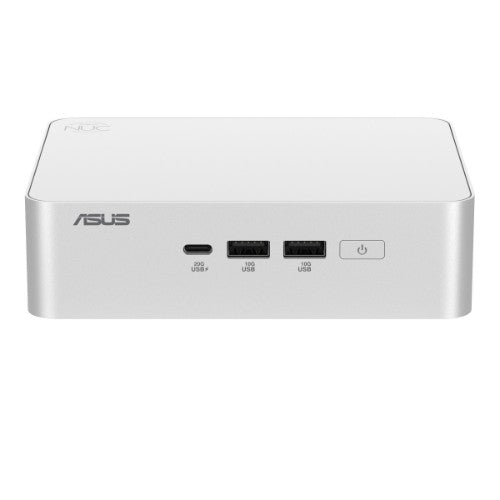

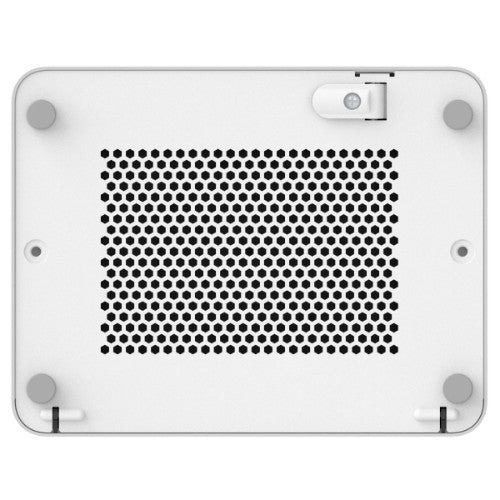

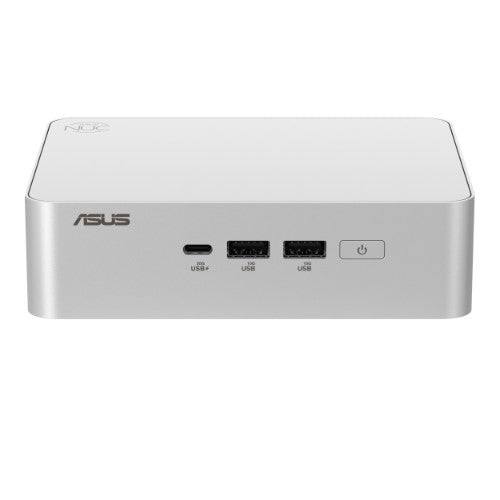

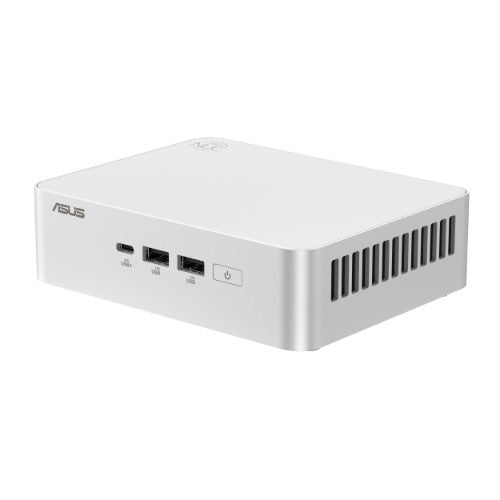

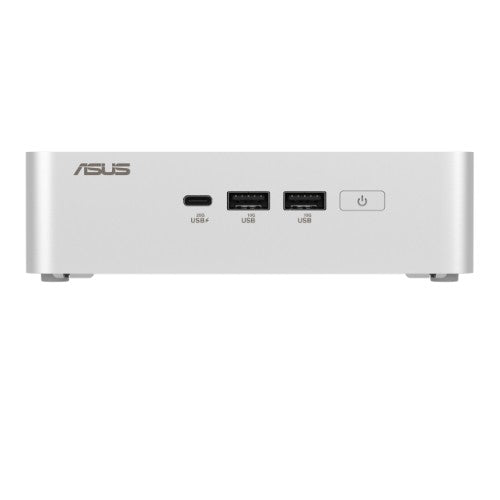

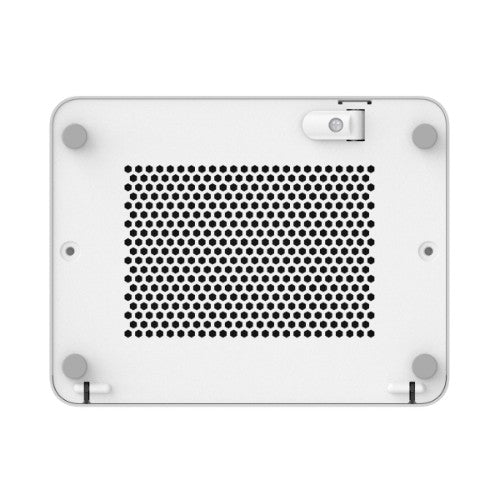

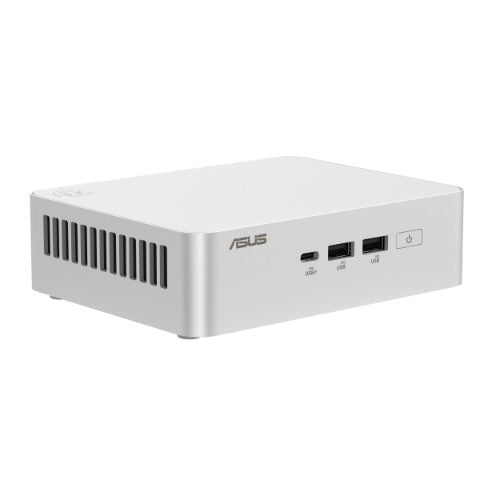

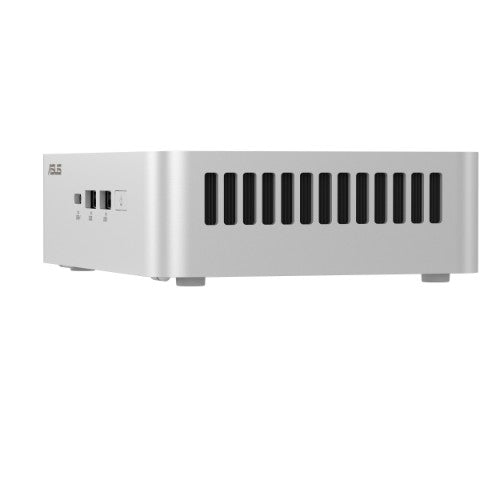

ASUS NUC 15 Pro+
Unleash Ultra Power, Embrace Intelligence
ASUS NUC 15 Pro+ offers a perfect blend of cutting-edge performance and sophisticated design. Powered by the latest-generation Intel® Core™ Ultra 9 processor (Series 2) and Intel Arc™ graphics, NUC 15 Pro+ delivers unparalleled speed and stunning visuals, all in a sleek and compact metal chassis.

Specifications

Processor
Built-in processor	Yes
Processor model	225H
Processor boost frequency	4.9 GHz
Processor threads	14
Processor cores	14
Processor family	Intel Core Ultra 5
Processor manufacturer	Intel
Processor cache	18 MB
Performance cores	4
Efficient cores	8
Performance-core Max Turbo Frequency	4.9 GHz
Efficient-core Max Turbo Frequency	4.3 GHz
Performance-core base frequency	1.7 GHz
Efficient-core base frequency	1.3 GHz
Low Power Efficient-cores	2
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor generation	Intel Core Ultra (Series 2)
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Memory channels	Dual-channel
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	6400 MHz
Maximum internal memory	192 GB
Internal memory installed	No
Video
On-board graphics card	Yes
Graphics card family	Intel
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2
Storage drive interface	M.2
Number of storage drives supported	1
Maximum storage capacity	2000 TB
Storage drives installed	No
Graphics
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card model	Intel Arc 130T
Audio
Built-in speaker(s)	No
Network
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth version	5.4
Bluetooth	Yes
Ethernet LAN	Yes
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	Intel Wi-Fi 7 BE201
Ports & interfaces
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
HDMI version	2.1
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
Thunderbolt 4 ports quantity	2
Design
Product type	Mini PC barebone
Cable lock slot type	Kensington
Cable lock slot	Yes
On/off switch	Yes
Cooling type	Active
Product colour	White
Processor special features
Low Power Efficient-cores	2
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Low Power Efficient-core Base Frequency	700 MHz
Colour
Product colour	White
Technical details
Cable lock slot type	Kensington
Cable lock slot	Yes
Processor cores	14
Cooling type	Active
Management features
On/off switch	Yes
Power
AC adapter output voltage	19 V
AC adapter output current	6.32 A
Power supply type	External AC adapter
Power supply	120 W
Weight & dimensions
Width	144 mm
Depth	112 mm
Height	42 mm
Weight	600 g
