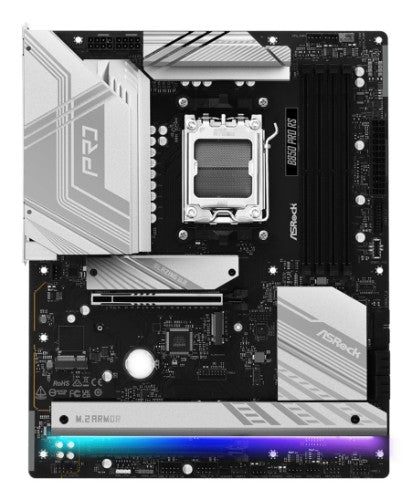

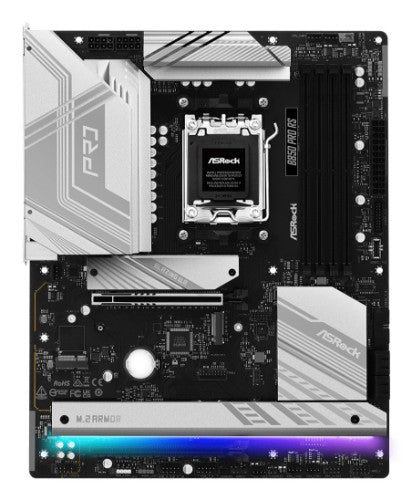

Socket AM5, AMD B850 Chipset, 4 x DDR5-SDRAM up to 256GB, LAN, 1 x RJ-45, 4 x SATA III, 1 x M.2(M), UEFI AMI, ATX

Key Features

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC+MISC
• 4 x DDR5 DIMMs
• Supports Dual Channel, up to 8000+ (OC)
• PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 M.2 Key E for WiFi
• Graphics Output Options: 1 HDMI, 1 USB Type-C (DP-alt)
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 1 Blazing M.2 (PCIe Gen5x4)
• 2 Hyper M.2 (PCIe Gen4x4)
• 1 Ultra M.2 (PCIe Gen3x4)
• 4 SATA3
• 1 USB 3.2 Gen2x2 Type-C (Front)
• 1 USB 3.2 Gen2 Type-C (Rear)
• 1 USB 3.2 Gen1 Type-C (Rear)
• 8 USB 3.2 Gen1 (4 Rear, 4 Front)
• 10 USB 2.0 (6 Rear, 4 Front)
• Realtek 2.5G LAN
• Supports M.2 Bottom Heatsink, BIOS Flashback

Description

Optimized for stability, durability, and efficiency. It combines reliable performance, user-friendly features and streamlined style for daily computing tasks.

Hi-Density Power Connector
CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.

14+2+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

8 Layer PCB
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
●Static Noise Suppression
●Echo Cancellation
●Lateral Sound Cancellation
●Voice Stabilizer

Ultimate Gaming Experience
●Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

●Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

Reinforced Steel Slot
[PCIe 5.0 Version]
The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

Specifications

Internal I/O
Number of M.2 (M) slots	1
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Number of SATA III connectors	4
Number of chassis fan connectors	4
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
USB 3.2 Gen 2x2 connectors	1
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	2
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Motherboard form factor	ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
RAID levels	0, 1, 10
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Maximum internal memory	256 GB
ECC сompatibility	ECC
Storage controllers
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 10
RAID support	Yes

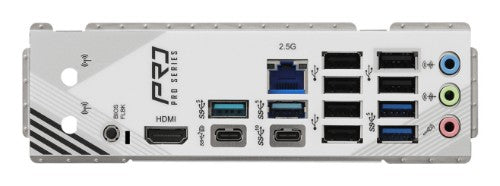

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 2.0 ports quantity	6
VGA (D-Sub) ports quantity	0
Microphone in	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Dragon RTL8125BG
Ethernet interface type	2.5 Gigabit Ethernet
Features
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Audio chip	Realtek ALC897
Expansion slots
Number of M.2 (M) slots	1
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Weight & dimensions
Width	305 mm
Depth	244 mm
Packaging content
Cables included	SATA
