LGA 1851, Intel B860, 4 DIMMs, DDR5 - 8800+ MT/s (OC), 4 x SATA, Wi-Fi 7, Bluetooth 5.4, 5G LAN

Key Features

• Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
• Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
• Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, and 6-layer server-grade level PCB
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Description

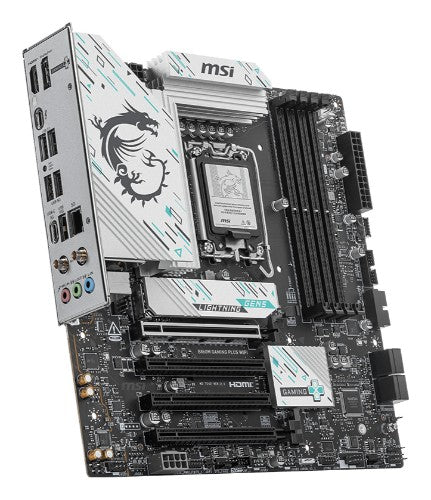

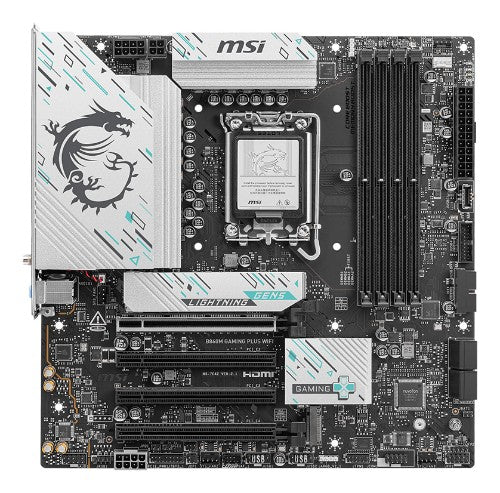

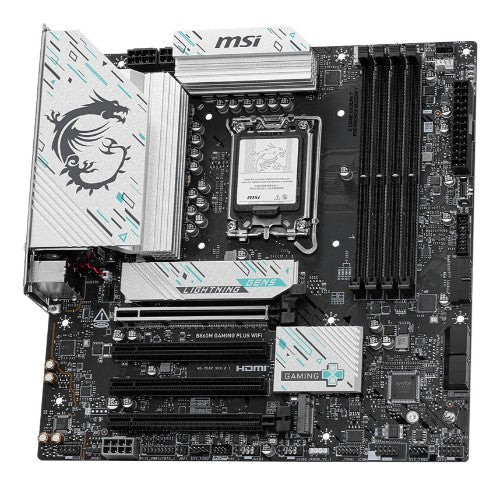

The B860M GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring Thunderbolt 4 port, full-speed Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for Intel Core Ultra processors.

Specifications

Internal I/O
Number of M.2 (M) slots	3
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Total number of SATA connectors	4
Supported storage drive interfaces	M.2, Micro SATA III
USB 2.0 connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	4
Number of SATA III connectors	4
CPU fan connector	Yes
RGB LED pin header	Yes
Number of CPU fan connectors	1
Number of water pump connectors	1
Number of RGB LED pin headers	3
Technical details
Motherboard chipset family	AMD
Motherboard chipset	Intel B860
Supported processor sockets	LGA 1851
HDMI version	2.1
Motherboard form factor	micro ATX
Component for	PC
Total number of SATA connectors	4
Maximum internal memory supported by processor	256 GB
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 11 x64
Motherboard chipset family	AMD
Motherboard chipset	Intel B860
RAID levels	0, 1, 5, 10
Supported processor sockets	LGA 1851
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Processor
Processor manufacturer	Intel
Maximum internal memory supported by processor	256 GB
Compatible processor series	Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851
Processor socket	LGA 1851 (Socket V1)
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	4800,6400,8800 MHz
Maximum internal memory	256 GB
Supported memory clock speed (max)	8800 MHz
ECC сompatibility	Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, Micro SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	7
RAID support	Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	0
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Ethernet interface type	5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	Killer Wi-Fi 7 1750x
Features
Windows operating systems supported	Windows 11 x64
Motherboard chipset family	AMD
Motherboard chipset	Intel B860
Supported processor sockets	LGA 1851
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Audio chip	Realtek ALC897
Product colour	Black
Expansion slots
Number of M.2 (M) slots	3
PCI Express x16 (Gen 4.x) slots	3
PCI Express x16 (Gen 5.x) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	6.5
System Management BIOS (SMBIOS) version	3.7
Software
Windows operating systems supported	Windows 11 x64
Weight & dimensions
Width	243.8 mm
Depth	243.8 mm
