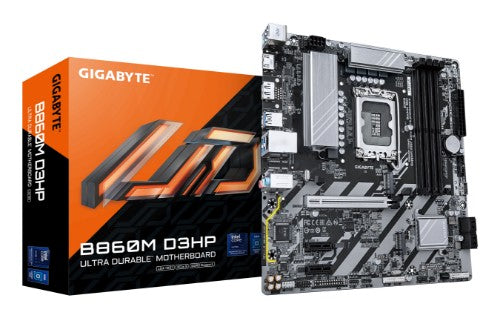

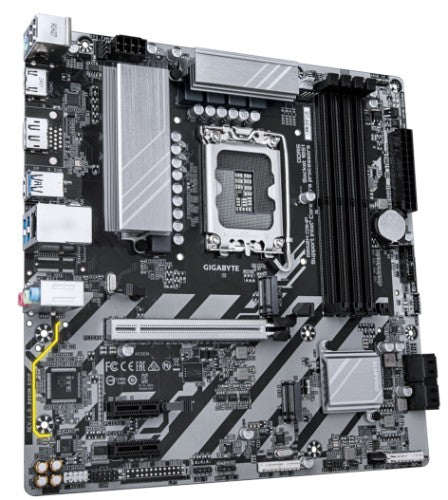

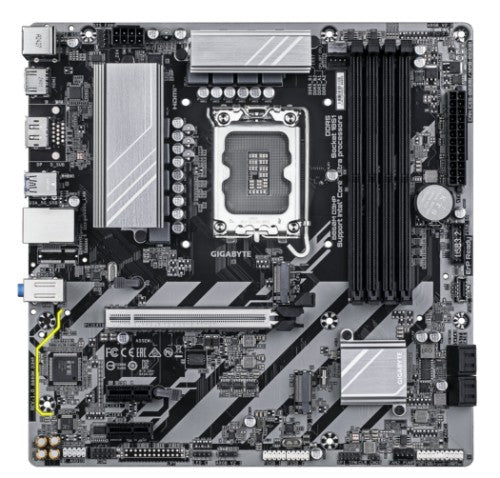

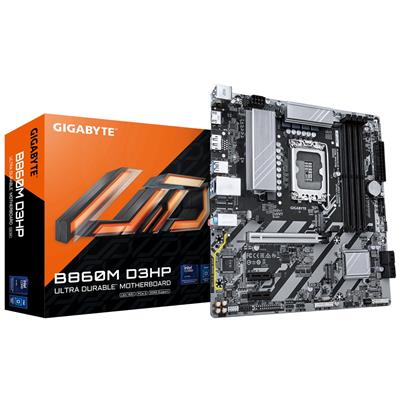

B860M D3HP Motherboard - Intel Core Ultra Series CPUs, 4+1+2+1 Phases VRM, up to 9066MHz DDR5, 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1

Key Features

• Hybrid 4+1+2+1 Phases 50A PPAK VRM
• Dual Channel DDR5：4*DIMMs
• PCIe 5.0 x16 with PCIE UD Slot & EZ-Latch
• MOSFET Heatsinks & PCH Heatsink
• 1GbE LAN, USB 3.2 Gen1 Type-C

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Serial port headers	1
Number of SATA III connectors	4
Number of chassis fan connectors	2
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	1
Number of water pump connectors	2
Number of RGB LED pin headers	3
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel B860
Supported processor sockets	LGA 1851
Serial port headers	1
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Parallel processing technology support	Not supported
HDMI version	2.1
Cooling type	Passive
Motherboard form factor	micro ATX
Component for	PC
Warranty period	3 year(s)
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel B860
RAID levels	0, 1, 5, 10
Supported processor sockets	LGA 1851
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851
Processor socket	LGA 1851 (Socket V1)
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	5600,6400,9066 MHz
Maximum internal memory	256 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	9066 MHz
ECC сompatibility	ECC & Non-ECC
Maximum internal memory per slot	64 GB
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	6
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
DirectX version	12.0

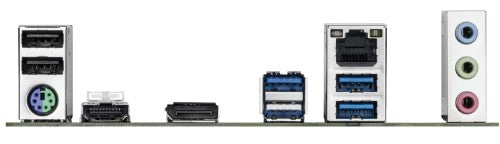

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPort version	2.1
USB 2.0 ports quantity	3
VGA (D-Sub) ports quantity	0
PS/2 ports quantity	1
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Features
Power source type	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel B860
Supported processor sockets	LGA 1851
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Cooling type	Passive
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Audio chip	Realtek ALC897
Product colour	Dark brown
Expansion slots
Number of M.2 (M) slots	2
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 5.x) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Power
Power source type	ATX
Video
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
DirectX version	12.0
Packaging data
Package width	265 mm
Package depth	265 mm
Package height	54 mm
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China
Weight & dimensions
Height	35 mm
Package width	265 mm
Package depth	265 mm
Package height	54 mm
Weight	1.1 kg
Width	244 mm
Depth	244 mm
Packaging content
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included	Yes
Screws included	Yes
Other features
Height	35 mm
Package width	265 mm
Package depth	265 mm
Package height	54 mm
Weight	1.1 kg
