Intel® B860 Chipset, 4 x DIMM slots, max. 256GB, DDR5 Support up to 8666+ MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel

Description

TUF GAMING
B860-PLUS WIFI
ASUS TUF GAMING B860-PLUS WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Specifications

Internal I/O
Number of M.2 (M) slots	3
Thunderbolt headers	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
mSATA ports quantity	0
S/PDIF out connector	Yes
Number of SATA connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of COM connectors	1
Number of chassis fan connectors	4
Front panel audio connector	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel B860
Supported processor sockets	LGA 1851
Parallel processing technology support	Not supported
On-board graphics card	No
Motherboard form factor	ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 11
Motherboard chipset family	Intel
Motherboard chipset	Intel B860
RAID levels	0, 1, 5, 10
Supported processor sockets	LGA 1851
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Processor
Processor manufacturer	Intel
Compatible processor series	Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851
Processor socket	LGA 1851 (Socket V1)
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Maximum internal memory	256 GB
Unbuffered memory	Yes
ECC сompatibility	Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	7
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No

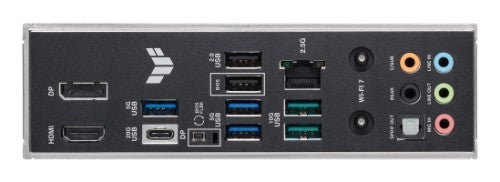

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	2
WiFi-AP antenna jack	1
VGA (D-Sub) ports quantity	0
S/PDIF out port	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
DisplayPorts quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Features
Windows operating systems supported	Windows 11
Motherboard chipset family	Intel
Motherboard chipset	Intel B860
Supported processor sockets	LGA 1851
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Product colour	Black
Expansion slots
Number of M.2 (M) slots	3
PCI Express x1 (Gen 4.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Packaging data
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	2.1 kg
Software
Windows operating systems supported	Windows 11
Weight & dimensions
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	2.1 kg
Width	305 mm
Depth	244 mm
Packaging content
Cables included	SATA
Screws included	Yes
Antenna included	Yes
Other features
Package width	353 mm
Package depth	273 mm
Package height	68 mm
Package weight	2.1 kg
mSATA ports quantity	0
PCI Express x1 (Gen 4.x) slots	1
