USB-C, HDMI 4K 60Hz, PD 100W, 5Gbps, 0 - 40℃, Aluminum, 180mm cable, 108.2 × 40 × 12.2mm

Key Features

• 5 in 1 USB-C Hub
• Ultra High-Definition Media Display
• Easy to Use with Plug & Play

Description

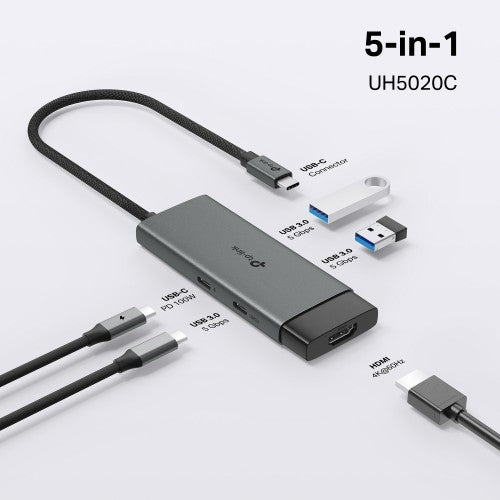

5 in 1 USB-C Hub
UH5020C turns a single USB-C port into 5 ports with a 4K@60Hz HDMI, 100W Power Delivery, 1× USB-C Data Port, 2× USB-A Data Ports.

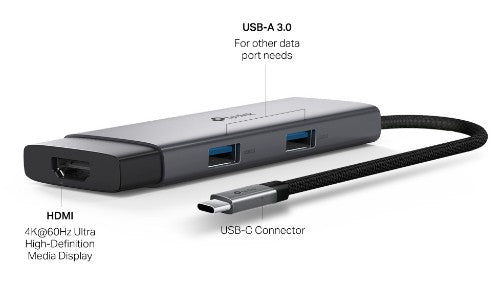

Ultra High-Definition Media Display
Connect to an external monitor via the 4K@60Hz HDMI port for a stunning ultra high-definition experience.

Powerful 100W Fast Charging
Plug the charging cable into UH5020C and continuously deliver up to 100W of power to your PC while transferring files or streaming media.

5 Gbps SuperSpeed Data Transfer
UH5020C adds three USB 3.0 ports to your device, enabling simultaneous use of multiple USB devices.

Easy to Use with Plug & Play
Simply plug in and start using in seconds, thanks to driver-free install with Mac OS, Windows 11/10/8.1/8/7, Linux OS, iPadOS, iOS, Android, Chrome OS, and Nintendo OS.

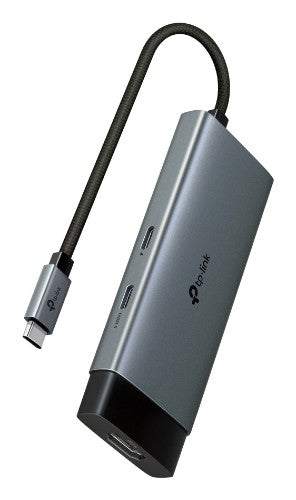

Compact and Elegant Design

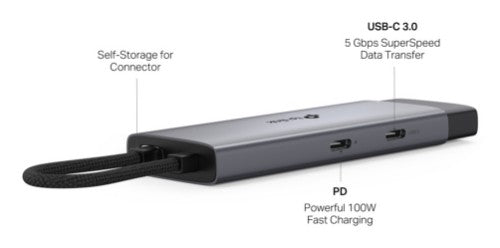

The self-storing design not only protects the connector, but also but also improves portability. Aluminum alloy case and braided cable make UH5020C more durable. Bring you a better user experience.

Specifications

Ports & interfaces
Host interface	USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
HDMI ports quantity	1
Hub interfaces	HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB Type-C
DC-in jack	No
Card reader integrated	No
Ports quantity	5
Maximum resolution (HDMI)	4096 x 2160 pixels
Cable length	0.18 m
Features
Plug and Play	Yes
Product colour	Grey
Certification	HDMI
Cable type	Round cable
Cable length	0.18 m
Data transfer rate	5000 Mbit/s
Maximum resolution (HDMI)	4096 x 2160 pixels
USB Power Delivery (USB PD)	Yes
Housing material	Aluminium
USB Power Delivery up to	100 W
Maximum refresh rate	60 Hz
Supported video modes	2160p
Fast charging	Yes
Host interface	USB Type-C
Data transmission
Data transfer rate	5000 Mbit/s
Power
Power supply type	USB
Technical details
Plug and Play	Yes
Product colour	Grey
Cable colour	Black
Compliance certificates	BSMI, CE, EAC, Federal Communications Commission (FCC), RoHS, UKCA
Performance
Certification	HDMI
Card reader integrated	No
Plug and Play	Yes
Data transfer rate	5000 Mbit/s
USB Power Delivery (USB PD)	Yes
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1
Mac operating systems supported	MacOS
Linux operating systems supported	Yes
Compatible operating systems	Nintendo OS
Other operating systems supported	Android, ChromeOS, iOS, iPadOS
Storage
Card reader integrated	No
Weight & dimensions
Width	108.2 mm
Depth	40 mm
Height	12.2 mm
Packaging data
Package type	Hanging box
Quantity per pack	1 pc(s)
Packaging content
Quick start guide	Yes
Package type	Hanging box
Design
Product colour	Grey
Certification	HDMI
Cable length	0.18 m
Cable colour	Black
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Certificates
Certification	HDMI
Other features
Compatible operating systems	Nintendo OS
Cable type	Round cable
