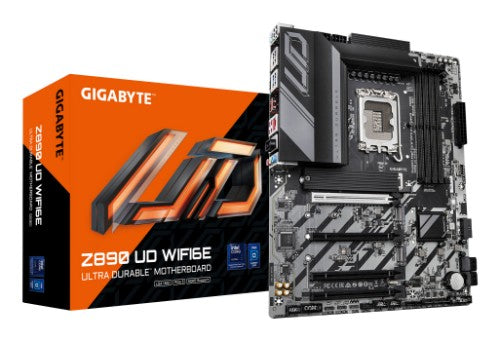

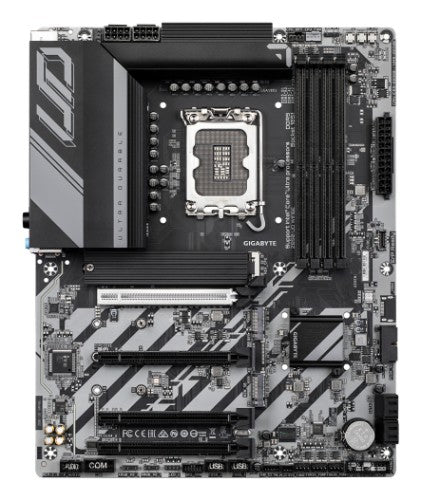

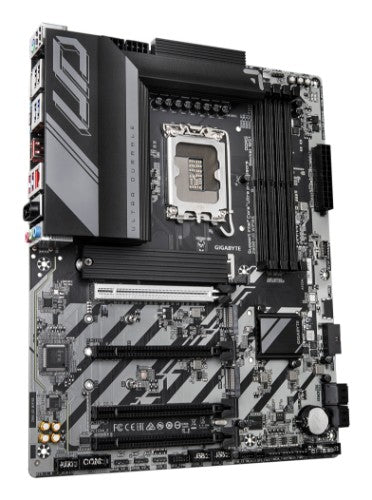

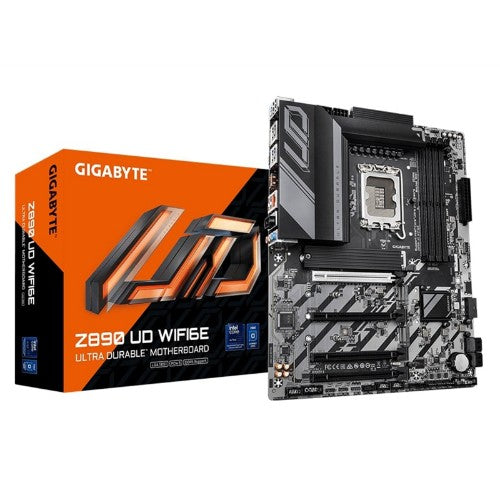

Z890 UD WIFI6E Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 12+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 6E, 2.5GbE LAN, USB 4

Key Features

• Digital 12+1+2+1 Phases 60A DrMOS VRM with Solid Capacitor
• Reinforced PCIe UD Slot PCIe 5.0 with PCIe EZ-Latch Design
• PCIe M.2 design (Up to 25110) with Thermal Guard
• Fully Covered MOSFET Heatsinks
• 2x2 Wi-Fi 6E with WIFI EZ-Plug Design
• 2.5GbE LAN, USB 4.0 Type-C, USB 3.2 Gen2 Type-C

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots	3
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Total number of SATA connectors	4
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
mSATA ports quantity	0
TPM connector	Yes
Number of SATA connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
EPS power connector (8-pin)	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel Z890
Supported processor sockets	LGA 1851
PC health monitoring	Fan, Temperature, Voltage
On-board graphics card	No
Motherboard form factor	ATX
Component for	PC
Total number of SATA connectors	4
Maximum internal memory supported by processor	256 GB
Warranty period	3 year(s)
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	7
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel Z890
RAID levels	0, 1, 5, 10
Supported processor sockets	LGA 1851
PC health monitoring	Fan, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Processor
Processor manufacturer	Intel
Maximum internal memory supported by processor	256 GB
Compatible processor series	Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851
Processor socket	LGA 1851 (Socket V1)
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Maximum internal memory	256 GB
Supported memory clock speed (max)	8800 MHz
ECC сompatibility	Non-ECC
Storage controllers
Number of HDDs supported	7
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	4
RAID support	Yes
Graphics
On-board graphics card	No
DirectX version	12.0

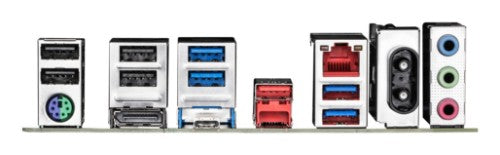

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	4
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	2
S/PDIF out port	Yes
Microphone in	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
DisplayPorts quantity	2
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Features
Windows operating systems supported	Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel Z890
Supported processor sockets	LGA 1851
PC health monitoring	Fan, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Product colour	Black
Expansion slots
Number of M.2 (M) slots	3
PCI Express x16 (Gen 4.x) slots	3
PCI Express x16 (Gen 5.x) slots	1
BIOS
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS button	Yes
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Video
DirectX version	12.0
Packaging data
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	2.02 kg
Software
Windows operating systems supported	Windows 11 x64
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Battery
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery weight	3 g
Number of battery cells	1
Lithium weight per battery	0.07 g
Battery type	CR2032
Logistics data
Products per shipping (inner) case	1 pc(s)
Country of origin	China
Weight & dimensions
Height	35 mm
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	2.02 kg
Weight	1.78 kg
Width	305 mm
Depth	244 mm
Packaging content
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included	Yes
Other features
Height	35 mm
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Package weight	2.02 kg
mSATA ports quantity	0
Weight	1.78 kg
