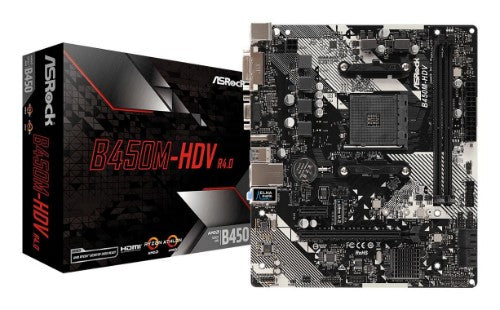

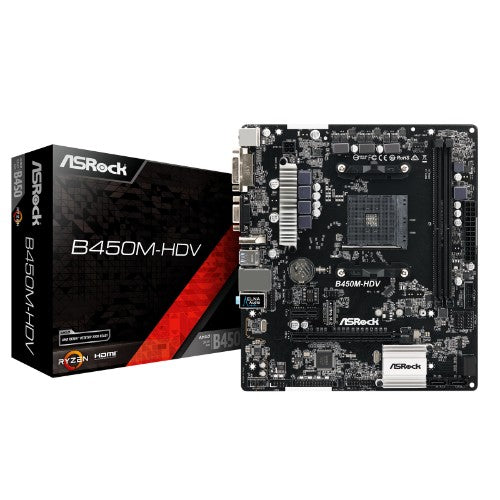

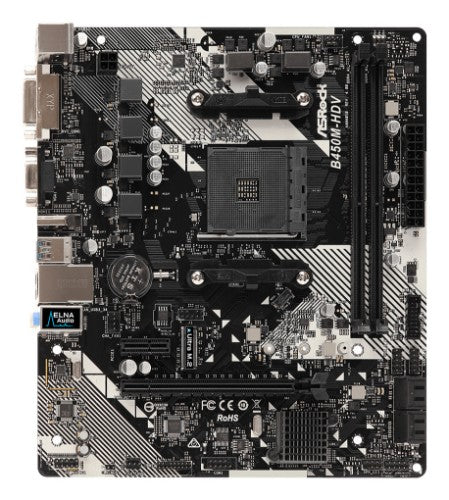

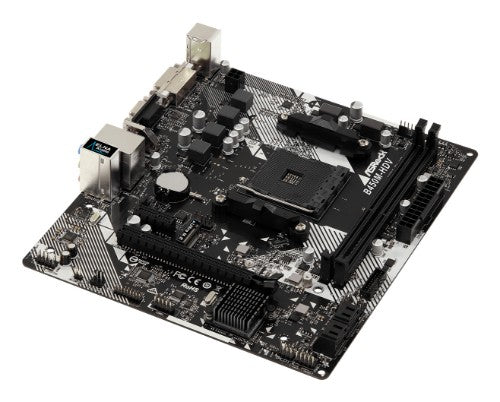

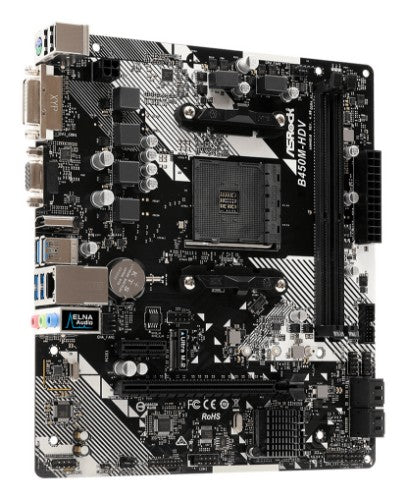

AMD AM4 Socket, 2 x DDR4 max. 32GB, 128Mb AMI UEFI BIOS, AMD Radeon Vega, Gigabit LAN, Micro ATX

Reasons To Buy

Triple Monitor

Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

4K x 2K

Composed by a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format.

Solid Capacitor Design

ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.

Description

AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast, but expensive, and offer minimal capacity. Mechanical hard drives boast large capacity for a low price, but are much slower than an SSD. AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, and mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data.

Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.

Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

4K x 2K
Composed by a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format.

Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.

ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

Digi Power
This motherboard uses a next generation Hybrid Digi Power design to bring precise control and smooth power. With the ensured efficient and clean power delivery to the CPU, the stability and lifespan of motherboard is also greatly enhanced.

A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
more

Specifications

Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD B450
Parallel processing technology support	Not supported
On-board graphics card	Yes
Motherboard form factor	micro ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64
Motherboard chipset family	AMD
Motherboard chipset	AMD B450
RAID levels	0, 1, 10
Certification	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Athlon, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series
Processor socket	Socket AM4
Memory
Number of memory slots	2
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	2133,2400,2667,2933,3200 MHz
Maximum internal memory	32 GB
Unbuffered memory	Yes
ECC сompatibility	ECC & Non-ECC
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 3.0, SATA III
RAID levels	0, 1, 10
Graphics
Parallel processing technology support	Not supported
On-board graphics card	Yes
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
Graphics card family	AMD
DirectX version	12.0
Internal I/O
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
12V power connector	Yes
Supported storage drive interfaces	M.2, PCI Express 3.0, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
TPM connector	Yes
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of Parallel ATA connectors	0
Number of COM connectors	1
Number of chassis fan connectors	2
Front panel audio connector	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes

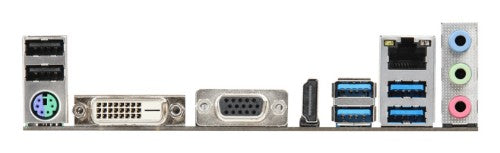

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	2
eSATA ports quantity	0
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	1
Microphone in	Yes
Firewire (IEEE 1394) ports	0
Headphone outputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	No
Wake-on-LAN ready	Yes
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Features
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64
Motherboard chipset family	AMD
Motherboard chipset	AMD B450
Certification	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Audio chip	Realtek ALC887
Harmonized System (HS) code	84733020
Expansion slots
PCI Express x1 (Gen 2.x) slots	1
PCI Express x16 (Gen 3.x) slots	3
BIOS
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	128 Mbit
ACPI version	5.1
System Management BIOS (SMBIOS) version	2.3
Video
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
Graphics card family	AMD
DirectX version	12.0
Certificates
Certification	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
Software
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64
Drivers included	Yes
Bundled software	AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Logistics data
Harmonized System (HS) code	84733020
Weight & dimensions
Height	70 mm
Weight	465 g
Width	230 mm
Depth	201 mm
Packaging content
Utilities included	Yes
Quick installation guide	Yes
Drivers included	Yes
Cables included	SATA
Bundled software	AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Other features
Utilities included	Yes
Height	70 mm
Weight	465 g
Quick installation guide	Yes
