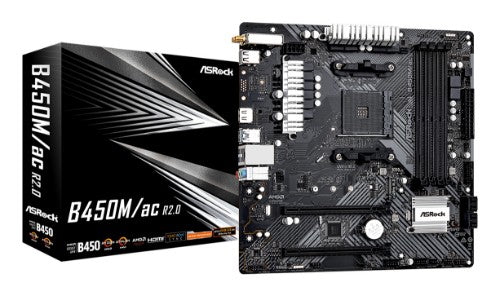

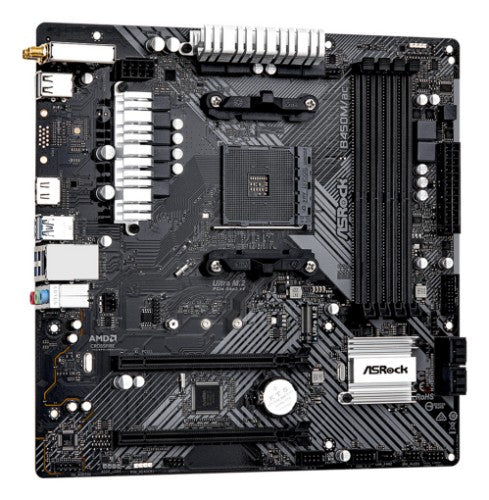

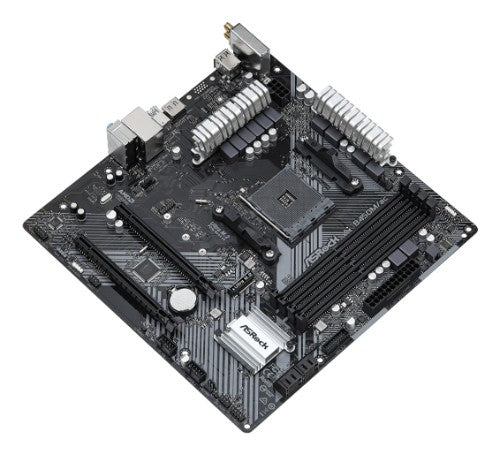

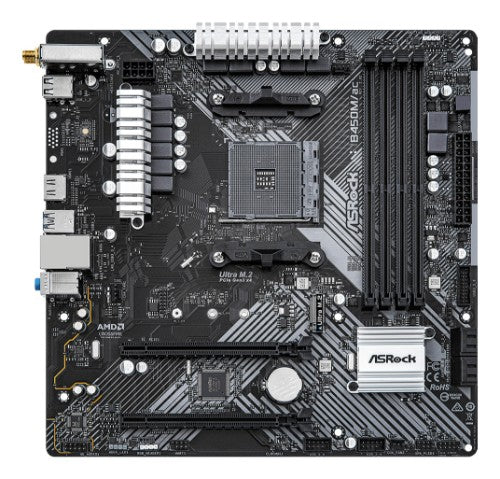

Micro ATX, Socket AM4, AMD B450 chipset, 4 x DDR4 DIMM, 7.1 ch audio, Gigabit LAN, Wi-Fi 5, Bluetooth 4.2, AMI UEFI BIOS

Key Features

• Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
• Supports DDR4 3200
• 1 PCIe 3.0 x16, 1 PCIe 2.0 x16
• AMD Quad CrossFireX™
• Graphics Output: HDMI
• 7.1 CH HD Audio (Realtek ALC892/897 Audio Codec)
• 4 x SATA3, 1 x Ultra M.2 (PCIe Gen3x4)
• 6 x USB 3.2 Gen1 (2 Front, 4 Rear)
• Realtek Gigabit LAN
• Intel® Dual-Band 802.11ac WiFi + BT 4.2 Module

Description

10 POWER PHASE DESIGN
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

2oz Copper
It comes with 2 ounces copper inner layers, using only carefully selected copper materials for PCB layers, delivering lower temperature and higher energy efficiency for overclocking.

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Ultra M.2 32 Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.

Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.

4 x USB3.2 Gen1
Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen1 technology advances the data transfer rate up to 5Gb/s. ASRock provides 4 x USB 3.2 Gen1 ports onboard allows you to have a stunning data transfer experience.

AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive, AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds.

HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Specifications

Internal I/O
Number of M.2 (M) slots	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
12V power connector	Yes
Supported storage drive interfaces	PCI Express 3.0, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Number of chassis fan connectors	1
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Number of CPU fan connectors	1
Number of EPS power connectors (8-pin)	1
Number of water pump connectors	1
Number of RGB LED pin headers	2
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD B450
Supported processor sockets	Socket AM4
PC health monitoring	CPU, Fan, Temperature, Voltage, Water cooling
Parallel processing technology support	CrossFireX, Quad-GPU CrossFireX
HDMI version	1.4
Motherboard form factor	micro ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	AMD
Motherboard chipset	AMD B450
RAID levels	0, 1, 10
Supported processor sockets	Socket AM4
PC health monitoring	CPU, Fan, Temperature, Voltage, Water cooling
Certification	FCC, CE, ErP/EuP
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 2000 Series, AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Supported processor sockets	Socket AM4
Processor socket	Socket AM4
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	2133,2400,2667,2933,3200 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
ECC сompatibility	ECC & Non-ECC
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	PCI Express 3.0, SATA III
RAID levels	0, 1, 10
Number of storage drives supported	5
RAID support	Yes
Graphics
Parallel processing technology support	CrossFireX, Quad-GPU CrossFireX
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
Graphics card family	AMD
DirectX version	12.0

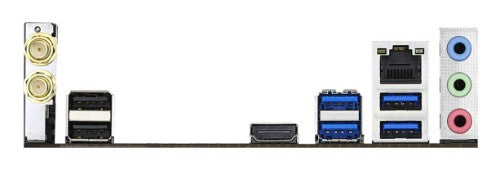

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB connector type	USB Type-A
USB 2.0 ports quantity	2
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
Microphone in	Yes
Headphone outputs	3
HDMI version	1.4
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wake-on-LAN ready	Yes
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	4.2
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Features
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	AMD
Motherboard chipset	AMD B450
Supported processor sockets	Socket AM4
PC health monitoring	CPU, Fan, Temperature, Voltage, Water cooling
Certification	FCC, CE, ErP/EuP
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Audio chip	Realtek ALC892 / Realtek ALC897
Product colour	Black
Expansion slots
Number of M.2 (M) slots	1
PCI Express x16 (Gen 2.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	3.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	128 Mbit
ACPI version	5.1
System Management BIOS (SMBIOS) version	2.3
Video
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
Graphics card family	AMD
DirectX version	12.0
Certificates
Certification	FCC, CE, ErP/EuP
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Drivers included	Yes
Weight & dimensions
Width	244 mm
Depth	244 mm
Packaging content
Drivers included	Yes
Cables included	SATA
Screws included	Yes
Antenna included	Yes
