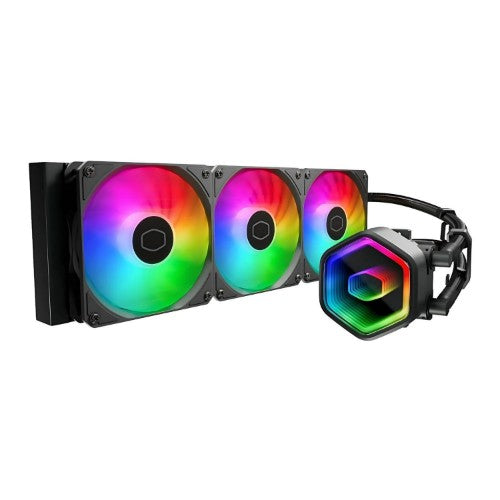

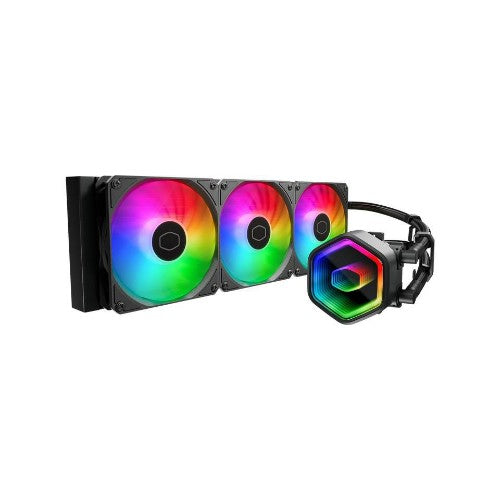

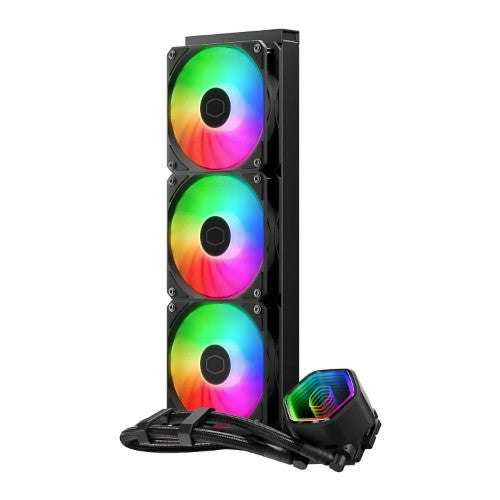

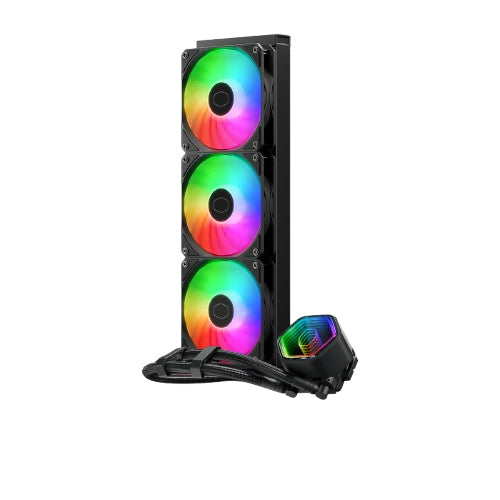

3 x 120mm, 650-1750 RPM, 120m³/h, 30 dBA, 2 mmH₂O, PWM, Black

Key Features

• Innovative design
• Dual chamber pump
• Optimum tubing length
• Revamped fans
• Updated CPU compatibility
• Easy installation
• Included Cryo-Fuze thermal paste

Description

MasterLiquid Core II Series
Building upon the success of the MasterLiquid series, Cooler Master presents the newly redesigned MasterLiquid Core II Series. Features such as a refined G9R dual chamber pump for silent performance and updated CPU compatibility for total build flexibility make the Core II a next level liquid cooler. With an infinity mirror design on the pump cover, overhauled and enhanced fans, and optimized tubes for easy installation, the Core II is the epitome of powerfully elegant design. Take the cooling power of your setup into the modern era with the MasterLiquid Core II Series.

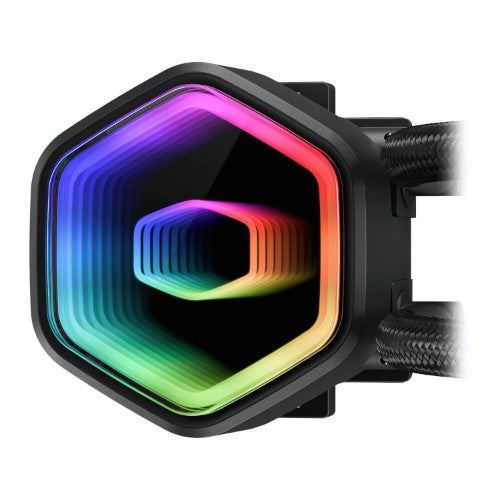

Innovative Design
An infinity mirror pump cover gives the pump a stellar aesthetics

Dual Chamber Pump
Upgraded design resulting in a compact cooler with superior performance

Optimum Tubing Length
400 mm long tubing enables effortless mounting of the cooler in any orientation

Revamped fans
The brand-new fan blades and revamped aesthetics deliver outstanding performance and a fresh look

Daisy chain connection
Simplified fan connection for easy cable management

Longer tubes for easy placement configuration

UPDATED CPU COMPATIBILITY
The Core II is compatible with all of the latest AMD and Intel CPUs

SUPPORT LGA 1851 RL-ILM SOCKET DESIGN

Specifications

Performance
Suitable location	Processor
Pulse-width modulation (PWM) support	Yes
Rotational speed (min)	650 RPM
Rotational speed (max)	1750 RPM
Bearing type	Sleeve bearing
Type	Liquid cooling kit
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5
Maximum air pressure	2 mmH2O
Airflow	120 m³/h
Number of fans	3 fan(s)
Quantity per pack	1 pc(s)
Pump connector	3-pin + 4-pin
Fan noise level (max)	30 dB
Pump noise level	25 dB
Pump motor speed	3100 RPM
Pump's mean time to failure (MTTF)	50000 h
Fan's mean time to failure (MTTF)	160000 h
Design
Number of fans	3 fan(s)
Illumination colour	Multi
Product colour	Black
Illumination LED	Yes
Radiator material	Aluminum
Technical details
Type	Liquid cooling kit
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5
Maximum air pressure	2 mmH2O
Airflow	120 m³/h
Number of fans	3 fan(s)
Illumination LED	Yes
Ports & interfaces
Pump connector	3-pin + 4-pin
Power
Safety current	0.45 Ah
Rated voltage	12 V
Rated current	0.23 A
Fan power consumption	2.76 W
Pump power consumption	3.6 W
Pump voltage	12 V
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Radiator width	39.4 cm
Radiator depth	11.9 cm
Radiator height	2.72 cm
Pump width	8.3 cm
Pump depth	7.62 cm
Pump height	5.23 cm
Indication
Illumination colour	Multi
Other features
Safety current	0.45 Ah
Pump connector	3-pin + 4-pin
