Thunderbolt 4 Dual DisplayPort Docking Station PRO + Power Delivery 92 W

Key Features

• Compatible with Thunderbolt™ 3/4, USB4, USB-C laptops & tablets. (The host device must support DisplayPort Alt mode)
• DisplayPort or Thunderbolt™ 4 ports support up to 8K/30Hz display (single screen) or 2x 4K / 60 Hz (dual screen mode)
• Thunderbolt™ 4 port provides data transfer speed up to 40 Gbps or video output
• 6x USB ports make it easy to connect multiple USB devices and peripherals
• Provides up to 92W Power Delivery for compatible USB4, USB-C and Thunderbolt laptops & tablets. The host device must support USB-C Power Delivery
• 2.5GLAN Ethernet supports network speeds of 10/100/1000/2500 Mbps speeds, providing a robust and super-speed internet connection
• SD/TF slots allow easy connection of memory cards
• Combo 3.5 mm audio input/output jack for easy connection to headset or speakers

Description

Exceptional performance, ultra-fast data transfer and support for up to 8K resolution. One of the most powerful docking stations on the market!

Crystal clear image quality, super-fast internet, and the ability to transfer data at speeds of up to 4 GB per second thanks to the integrated Thunderbolt” 4 output port. You can also, of course, connect your headphones or audio and charge your laptop (92W), all using one single cable.

Thanks to the integrated DP 1.4 protocol, you can connect this dock to a monitor with a resolution of up to 8K (7680 x 4320) with a refresh rate of 30 Hz, which is equivalent to the resolution of four monitors, each at 4K resolution. This makes it the ideal solution for graphic designers, analysts, developers, film editors, or high-definition video enthusiasts and lovers.

The dock is now compatible not only with Thunderbolt” 4 ports, but also USB-C*, making it a flexible solution for businesses and users who run laptops and tablets with different ports.

* Only one (4K/60 Hz) monitor is supported when connected to USB-C.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Headphone connectivity	3.5 mm
Host interface	Thunderbolt 4
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	2
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	92 W
Thunderbolt 4 ports quantity	2
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	7680 x 4320 pixels
Number of displays supported	2
Product colour	Black
Card reader integrated	Yes
Data transfer rate	40 Gbit/s
Compatible memory cards	MicroSD (TransFlash), SD
Maximum refresh rate	60 Hz
Technical details
Product colour	Black
Data transfer rate	40 Gbit/s
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD
Power
Output voltage	28 V
Output current	5 A
Thunderbolt 4 cable length	1 m
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Weight & dimensions
Height (front)	28.6 cm
Width	197 mm
Depth	79 mm
Height	30 mm
Design
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Product colour	Black

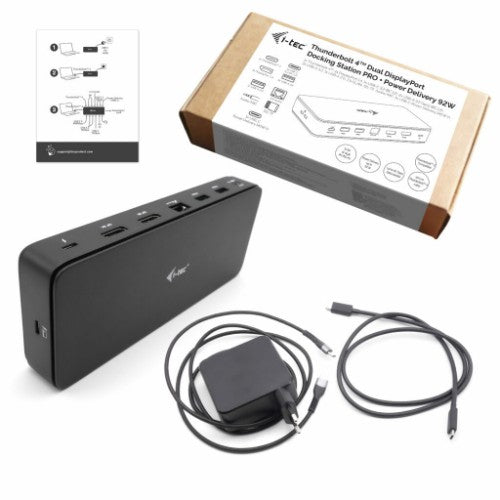

Packaging content
Quick start guide	Yes
Cables included	Thunderbolt, USB Type-C
AC adapter included	Yes
