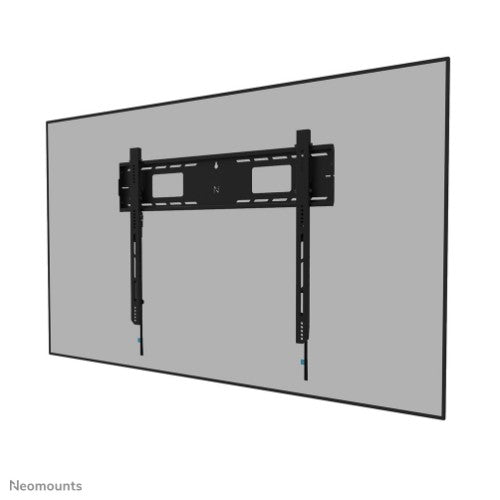

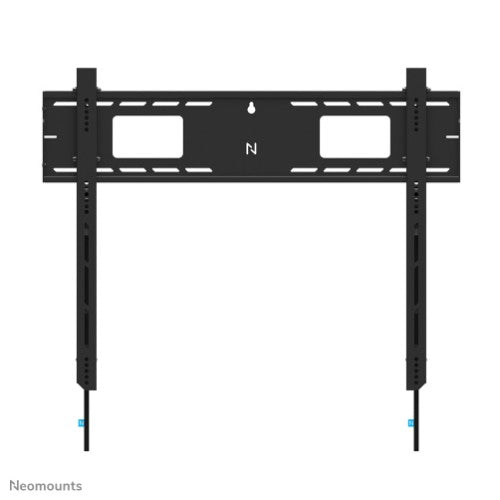

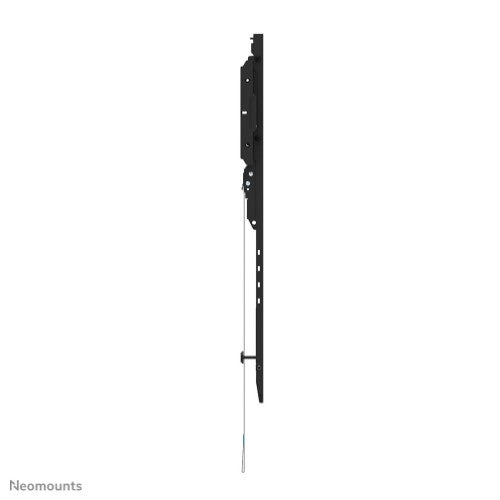

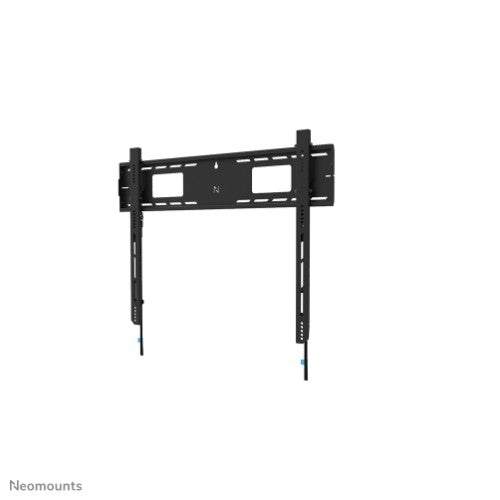

Neomounts LEVEL-750 WL30-750BL18 Fixed heavy duty wall mount - 43-98" screen - max 125 kg - VESA 100x100-800x600 - d 4,2 cm - level adjustment - lockable (excl. lock) - TÜV certified - Rapid Install-model with service position - black

Description

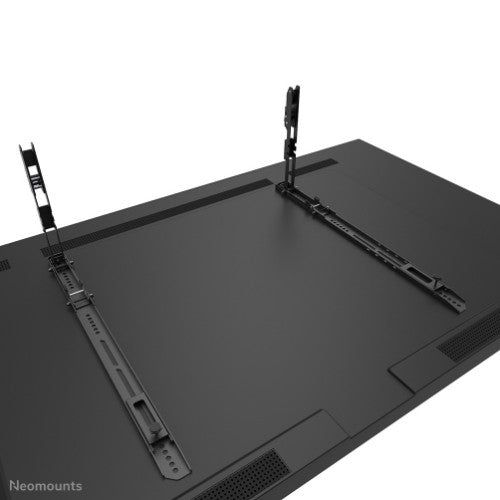

The Neomounts WL30-750BL18 LEVEL is the ultimate solution for securely mounting an interactive or heavy weight display up to 98" with a maximum capacity of 125 kg. This heavy-duty wall mount features a high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The wall mount is designed to provide the sturdiest and most stable touch screen experience. The brackets of the WL30-750BL18 feature depth adjustable wall supports on the lower brackets for better weight distribution and maximum stability. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it.

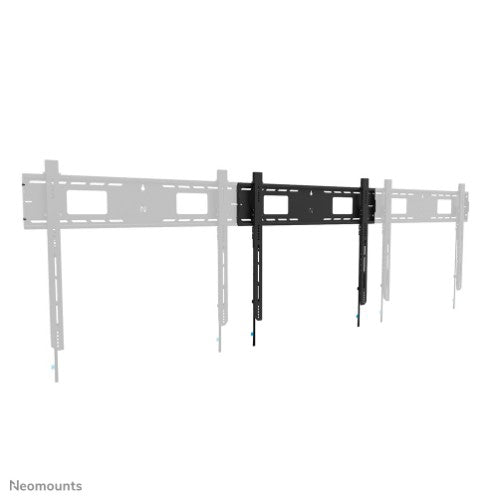

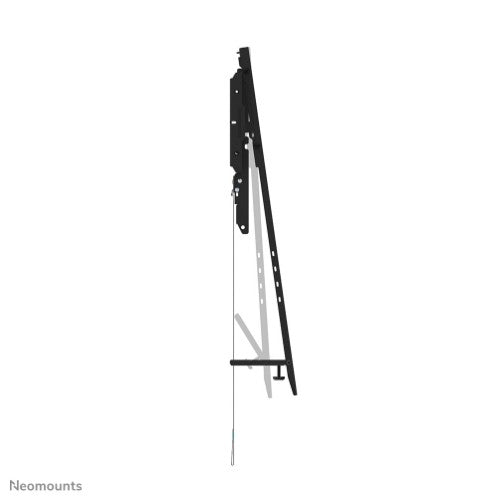

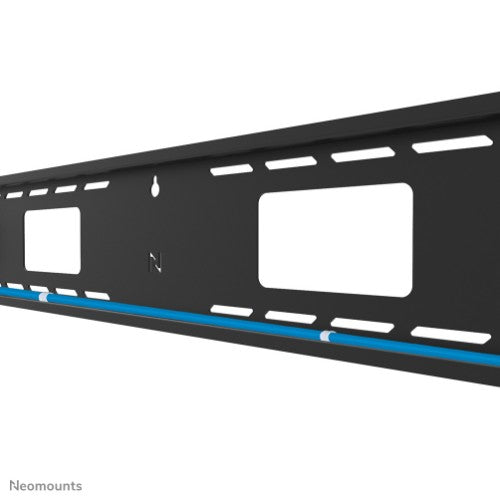

The LEVEL-750 wall mount has a profile depth of 4,2 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x600 mm. Its quickly connectable wall plate allows for multiple screen mounting, while a clever kickstand service position provides easy access to cables and connectors. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.

The WL30-750BL18 includes an safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. It is possible to lock the brackets using a padlock (not included) for extra screen security.

For simple and effective storage, an optionally available AV-rack can be installed to the left or right side of the mount.

Specifications

Mounting
Maximum weight capacity (per display)	125 kg
Mounting type	Wall
Minimum screen size	109.2 cm (43")
Panel mounting interface	100 x 200,100 x 100,100 x 150,120 x 120,150 x 200,200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,500 x 500,500 x 400,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,680 x 300,700 x 400,800 x 200,800 x 400,800 x 450,800 x 500,800 x 600
Number of displays supported	1
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	800 x 600 mm
Maximum screen size	2.49 m (98")
Maximum weight capacity	125 kg
Ergonomics
Height adjustment	Yes
Height adjustment range	0 - 10 mm
Cable management	Yes
Distance to the wall (max)	4.2 cm
Type	Fixed
Technical details
Cable management	Yes
Number of displays supported	1
Distance to the wall (max)	4.2 cm
Product colour	Black
Mounting type	Wall
Country of origin	China
Master (outer) case net weight	18.9 kg
Lockable	Padlock not included
Design
Cable management	Yes
Product colour	Black
Housing material	Steel
Weight & dimensions
Width	886 mm
Depth	42 mm
Height	684 mm
Weight	6.3 kg
Depth (max)	4.2 cm
Packaging data
Package width	928 mm
Package depth	61 mm
Package height	209 mm
Package weight	7.7 kg
Logistics data
Master (outer) case width	946 mm
Master (outer) case length	227 mm
Master (outer) case height	201 mm
Master (outer) case gross weight	23.7 kg
Products per master (outer) case	3 pc(s)
Master (outer) case net weight	18.9 kg
Products per pallet (EU)	90 pc(s)
Harmonized System (HS) code	7326909890
Other features
Mounting type	Wall
Country of origin	China
