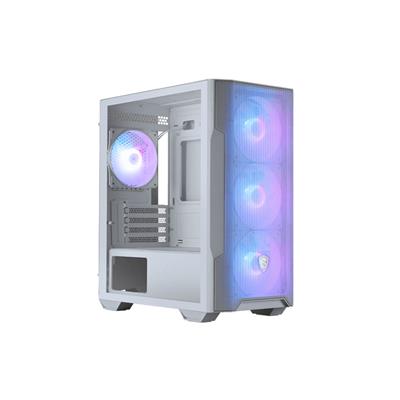

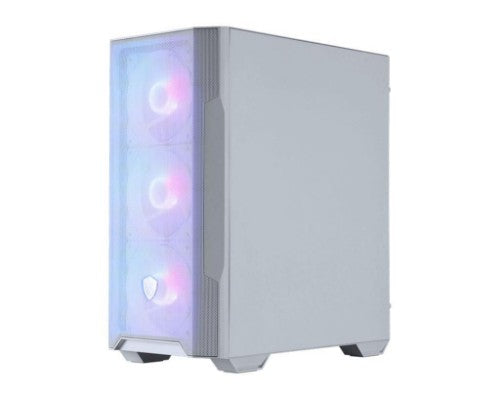

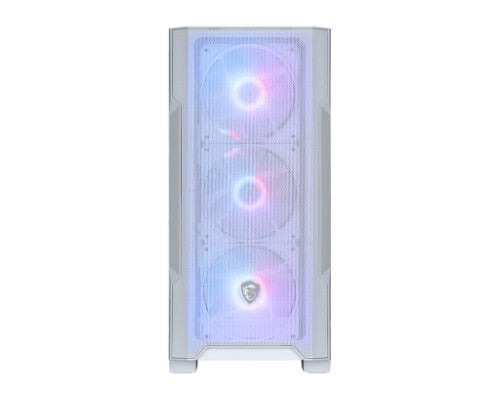

Micro ATX / Mini ITX, 1x USB 3.2, 2x USB 2.0, 1x Audio, 1x Mic, 4x PCI-E, 2x 2.5', 2x 3.5', 388 x 200 x 423 mm

Key Features

• Can install up to 6x system fans, providing ventilation and stable performance to the whole system
• Tempered Glass Side Pane displaying RGB lighting effects
• The magnetic filter on the top vents being easily remove for cleaning
• Use the fan cable to create more possibilities for adding more fans to your system
• Click through the profile at ease and choose a favorite
• Built-in ARGB fans with striking lighting and vivid lighting effects
• Through the LED Switch button can intuitively control & switch 9 lighting effects

Description

MESH CERTIFIED MAKES IT WORK
The front mesh panel allows air to flow into the case easily without obstruction, providing the best system cooling performance. The micro-atx chassis provide small footprint but big perfromance.

HEAT DISSIPATION
You don't need to worry about system cooling with the help of the gaming cases.

OPTIMIZED AIRFLOW
The MAG FORGE M100 Series is optimized to provide generous and effective airflow for system cooling. The MAG FORGE M100 Series can mount up to 6 fans.

HARDWARE COMPATIBILITY
The gaming cases offers extensive support for the installation of your hardware components.

EASY TO INSTALL
The gaming cases has many features that make the installation process all the easier.

MAGNETIC DUST FILTER
A magnetic filter sits on the top vents keeping dust from falling inside while being easily removed for cleaning.

FANCY APPEARANCE
Build and display the coolest PC with controllable ARGB lighting.

Specifications

Technical details
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	2
Number of internal 3.5" bays	2
Supported motherboard form factors	micro ATX, Mini-ITX
Supported HDD sizes	2.5,3.5"
Suitable for	Gaming
Side window	Yes
Reset button	Yes
Product colour	Transparent, White
Number of expansion slots	4
Maximum CPU cooler height	16 cm
Maximum graphics card length	30 cm
Maximum PSU length	30 cm
Type	PC
Form factor	Midi Tower
Indication
LED indicators	Yes
Illumination location	Case fans
Illumination colour	Multi
Illumination	Yes
Ergonomics
Reset button	Yes
LED indicators	Yes
On/off button	Yes
Design
Anti-dust filter	Yes
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	2
Number of internal 3.5" bays	2
Supported motherboard form factors	micro ATX, Mini-ITX
Suitable for	Gaming
Side window	Yes
Reset button	Yes
LED indicators	Yes
Illumination location	Case fans
Illumination colour	Multi
Illumination	Yes
Product colour	Transparent, White
Number of expansion slots	4
Maximum CPU cooler height	16 cm
Maximum graphics card length	30 cm
Maximum PSU length	30 cm
Type	PC
Form factor	Midi Tower
On/off button	Yes
Tempered glass panel(s)	Yes
Power supply
Power supply included	No
Power supply location	Bottom
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Audio input	Yes
Audio output	Yes
USB 2.0 ports quantity	2
Cooling
Front fans installed	3x 120 mm
Number of front fans supported (max)	3
Front fans diameters supported	120 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	2
Top fans diameters supported	120 mm
Storage
HDD/SSD combo cage	Yes
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Width	388 mm
Depth	200 mm
Height	423 mm
Weight	4.14 kg
