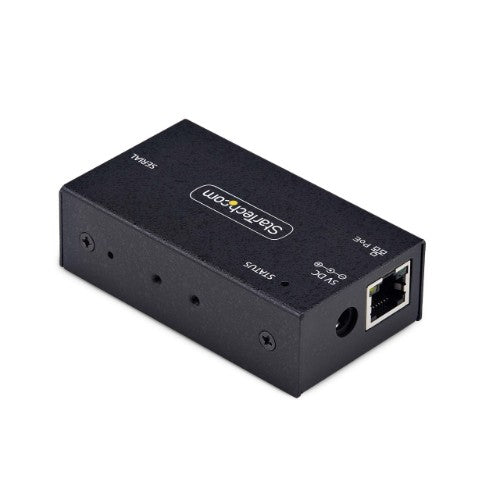

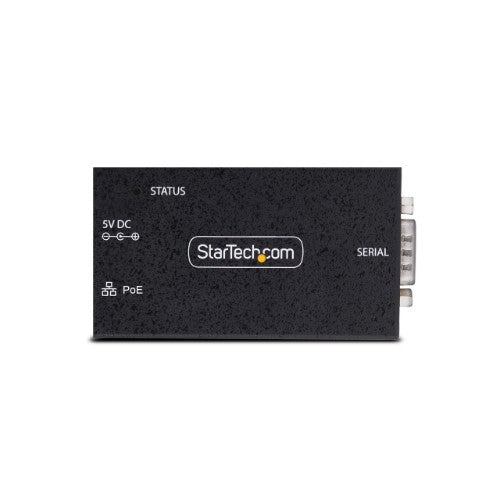

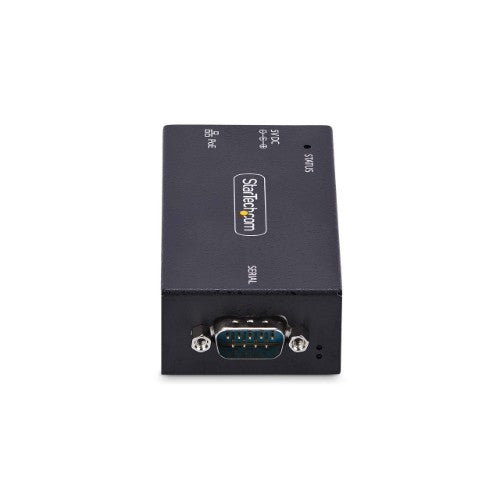

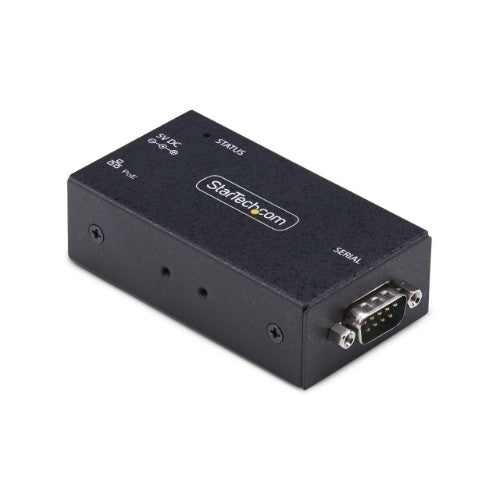

StarTech.com 1-Port Serial to Ethernet Adapter, 802.3af PoE Powered Serial Device Server, Wall/DIN Rail, LAN to DB9 Converter, TAA

Key Features

• SINGLE PORT SERIAL TO IP CONVERTER: Connect different RS232 serial devices remotely over an IP-based network; Use for POS systems, barcode readers, sensors, weighing systems, CNC controllers & PLCs; DB9 serial port supports up to 921.6Kbps; TAA Compliant
• UNIFIED ECOSYSTEM EXPERIENCE: All our device servers share the same management software and Web UI; View/manage individual devices with a common UI on any OS; Windows software to set up virtual com ports and view/manage all device servers on the network
• VERSATILE CONFIGURATIONS: PoE powered converter support TCP client/server mode to enable serial tunneling between two device servers over a LAN; Export/import settings, custom naming / location, admin password protection, and upgradeable firmware
• ETHERNET AND POWER OPTIONS: Single 10/100Mbps RJ45 port w/auto-negotiation; Serial device server operates over Telnet (RFC2217)/UDP/TCP; Serial to LAN converter
• RUGGED AND MOUNTABLE ENCLOSURE: All-metal housing ensures durability in harsh conditions; Supports Level-4 ESD protection (15kV air/8kV contact); Includes the necessary wall and DIN rail mounting hardware; Dimensions 1.8x1x3.2in (46.1x 25x 81.9mm)
• SERIAL TO IP CONVERTER OPTIONS: Our family of device servers includes the following options: I13-SERIAL-ETHERNET (1 Port), I13P-SERIAL-ETHERNET (1 Port w/ PoE), I23-SERIAL-ETHERNET (2 Port), and I43-SERIAL-ETHERNET (4 Port)

Description

Streamline RS-232 connectivity for serial device management over IP with this PoE powered serial device server

This PoE serial-to-IP converter is an efficient solution for remotely connecting and controlling a variety of RS232 serial devices over an IP-based network. Compliant with the 802.3af PoE standard, the RJ45 LAN to DB9 adapter facilitates a seamless integration of data and power supply to the unit through a single Cat5/5e/6/6a copper cable

Configuration and Management

The DB9 to Ethernet Adapter family shares the same Windows Virtual COM Port software and Web User Interface (WebUI) for a unified experience. Users can employ the Windows software to view and manage all device servers within a network and to set up virtual COM ports. Alternatively, the WebUI provides a platform-independent method, allowing users to access and configure these device servers from any operating system. This flexibility ensures that administrators can manage their network of device servers efficiently, regardless of the operating system they are using.

The product family includes the following options:

• 1-Port Serial to Ethernet Adapter with PoE (I13P-SERIAL-ETHERNET)
• 1-Port Serial to Ethernet Adapter (I13-SERIAL-ETHERNET)
• 2-Port Serial to Ethernet Adapter (I23-SERIAL-ETHERNET)
• 4-Port Serial to Ethernet Adapter (I43-SERIAL-ETHERNET)

PoE and Ethernet options

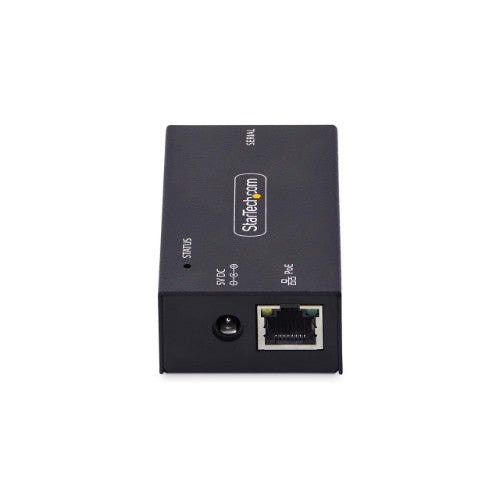

Choose between dual power options, M-size barrel connector and Power over Ethernet (PoE), that provide maximum installation flexibility for a variety of scenarios. The TAA-compliant IP-to-serial converter features a single RJ45 10/100 Mbps Ethernet port and supports Telnet Server (RFC2217), TCP Server, TCP Client, and UDP protocols for versatile network connectivity. Supports Level-4 ESD protection (15kV air/8kV contact) and can supply 5VDC over pin 9 if required.

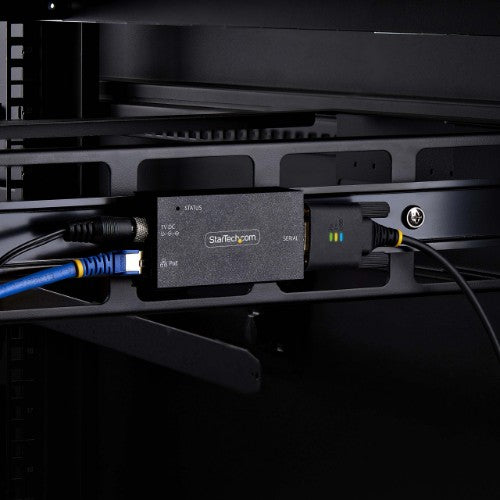

Flexible Installation and Rugged Chassis

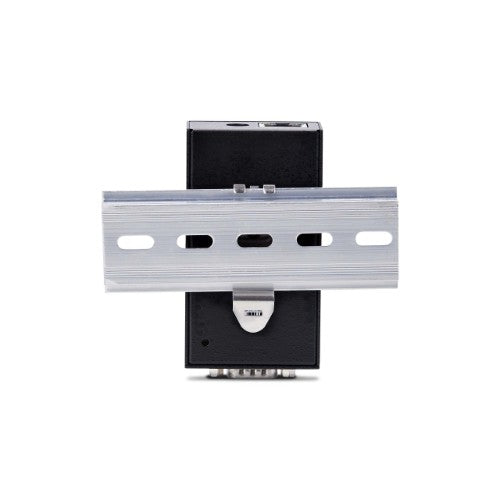

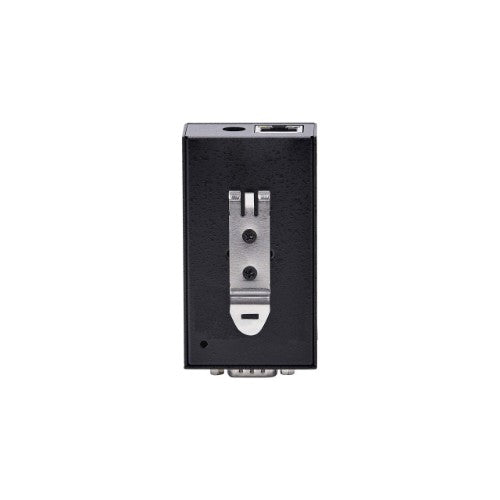

The converter is housed in a full metal enclosure for durability in harsh environments. The DB9 over IP converter includes all necessary wall and DIN rail mounting hardware. Multiple mounting holes along the chassis allow it to be installed in the most useful orientation for any application. The compact design of 1.8x1x3.2in (46.1x 25x 81.9mm) is ideal for environments where space is at a premium.

The StarTech.com Advantage

Specifications

Network
Networking standards	IEEE 802.3af, IEEE 802.3i, IEEE 802.3u
Auto-negotiation	Yes
Auto MDI/MDI-X	Yes
Full duplex	Yes
Technical details
Connector 1	DB-25S
Connector 2	RJ-45
Stop bits	1, 2
Data bits	7, 8
Windows operating systems supported	Windows 11 Enterprise x64, Windows 7 Professional x64, Windows Vista Enterprise x64, Windows 10, Windows 11 Home, Windows 7 Starter, Windows Vista Home Basic, Windows 10 Education, Windows 11 Pro, Windows 7 Starter x64, Windows 10 Education x64, Windows 11 x64, Windows 7 Ultimate, Windows Vista Home Premium, Windows 10 Enterprise, Windows 7 Ultimate x64, Windows Vista Home Premium x64, Windows 10 Enterprise x64, Windows 7 x64, Windows Vista Ultimate, Windows 10 Home, Windows 8, Windows Vista Ultimate x64, Windows 10 Home x64, Windows 7, Windows 8 Enterprise, Windows 10 IOT Core, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows XP, Windows 10 IoT Enterprise, Windows 7 Enterprise x64, Windows 8 Pro, Windows XP Home, Windows 10 Pro, Windows 7 Home Basic, Windows 8 Pro x64, Windows XP Home x64, Windows 10 Pro x64, Windows 7 Home Basic x64, Windows 8 x64, Windows Vista, Windows XP Professional, Windows 10 x64, Windows 7 Home Premium, Windows Vista Business, Windows XP Professional x64, Windows 11, Windows 7 Home Premium x64, Windows Vista Business x64, Windows 11 Enterprise, Windows 7 Professional, Windows Vista Enterprise
Connector gender	Female/Female
Output interface	RJ-45
Mounting	Wall/DIN
Host interface	RS-232
Product colour	Black
Baud rate	921.6 Kbit/s
Parity bit	Even, Mark, No, Odd, Space
Compliance certificates	Trade Agreements Act (TAA)
Flow Control type	No, RTS/CTS, XON/XOFF
Electrostatic Discharge (ESD) protection (contact)	8 kV
Electrostatic Discharge (ESD) protection (air)	15 kV
Weight & dimensions
Width	82 mm
Depth	46 mm
Height	25 mm
Package width	144 mm
Package depth	207 mm
Package height	30 mm
Package weight	1.2 kg
Weight	155 g
Operational conditions
Storage temperature (T-T)	-20 - 75 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	5 - 95%
Packaging data
Manual	Yes
Indication
LED indicators	Yes
Software
Windows operating systems supported	Windows 11 Enterprise x64, Windows 7 Professional x64, Windows Vista Enterprise x64, Windows 10, Windows 11 Home, Windows 7 Starter, Windows Vista Home Basic, Windows 10 Education, Windows 11 Pro, Windows 7 Starter x64, Windows 10 Education x64, Windows 11 x64, Windows 7 Ultimate, Windows Vista Home Premium, Windows 10 Enterprise, Windows 7 Ultimate x64, Windows Vista Home Premium x64, Windows 10 Enterprise x64, Windows 7 x64, Windows Vista Ultimate, Windows 10 Home, Windows 8, Windows Vista Ultimate x64, Windows 10 Home x64, Windows 7, Windows 8 Enterprise, Windows 10 IOT Core, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows XP, Windows 10 IoT Enterprise, Windows 7 Enterprise x64, Windows 8 Pro, Windows XP Home, Windows 10 Pro, Windows 7 Home Basic, Windows 8 Pro x64, Windows XP Home x64, Windows 10 Pro x64, Windows 7 Home Basic x64, Windows 8 x64, Windows Vista, Windows XP Professional, Windows 10 x64, Windows 7 Home Premium, Windows Vista Business, Windows XP Professional x64, Windows 11, Windows 7 Home Premium x64, Windows Vista Business x64, Windows 11 Enterprise, Windows 7 Professional, Windows Vista Enterprise
Packaging content
Number of screws included	4 pc(s)
Mounting brackets included	Yes
DIN rail included	Yes
AC adapter included	Yes
Material
Housing material	Steel
Logistics data
Products per master (outer) case	40 pc(s)
Master (outer) case width	390 mm
Master (outer) case length	515 mm
Master (outer) case height	313 mm
