USB-C to HDMI 4K144Hz & USB 3.2 with Power Delivery 100W

Key Features

• Supports HDMI™ resolution up to 4K @ 144 Hz
• DisplayPort™ Alternate Mode for HDMI™
• Supports USB™ Type-A 3.2 Gen 1 port, transfer rates up to 5Gbps. Backward compatible with USB™ 3.1 / 3.0 /2.0
• Supports power delivery 3.0 upstream charging up to 100W
• Plug-and-play, no driver installation is required

Description

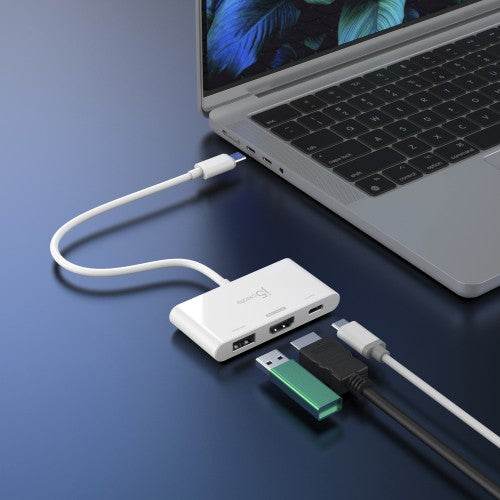

The JCA399 adapter adds extra functionality to your laptop, tablet, or smartphone. The adapter’s small size makes it easy to transport and place on a desk while saving space. This adapter allows you to connect a display such as a monitor or TV to your device and supports resolutions up to 4K 144 Hz. Includes a 5Gbps USB™ Type-A port and a USB-C® Power Delivery port that can be used to charge your laptop when a USB-C® power adapter is connected. The 4K144 HDMI™ port supports Extended, and Mirrored display modes. It come with a 5Gbps USB™ Type-A that allows you to connect USB™ peripherals such as a USB™ flash drive, keyboard, or mouse. The USB-C® port supports upstream charging and Power Delivery 3.0 100W to keep your connected mobile device powered up while in use.

Specifications

Ports & interfaces
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
Hub interfaces	HDMI, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Ports quantity	3
Maximum resolution (HDMI)	3840 x 2160 pixels
USB Type-C DisplayPort Alternate Mode	Yes
Cable length	0.2 m
Features
Country of origin	Taiwan
Product colour	White
Cable length	0.2 m
Data transfer rate	5000 Mbit/s
Maximum resolution (HDMI)	3840 x 2160 pixels
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
Housing material	Acrylonitrile butadiene styrene (ABS), Plastic
USB Power Delivery up to	100 W
Maximum refresh rate	144 Hz
Supported graphics resolutions	1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160
Supported video modes	1080p, 1440p, 2160p
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Data transmission
Data transfer rate	5000 Mbit/s
Power
Input current	5 A
Output voltage	20 V
Output current	4.5 A
Input voltage	20 V
Power supply type	USB
Technical details
Maximum resolution	3840 x 2160 pixels
Product colour	White
Country of origin	Taiwan
Operating temperature (T-T)	30 - 106 °F
Sustainability compliance	Yes
Warranty period	2 year(s)
Compliance certificates	CE, REACH, RoHS
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	ChromeOS
Weight & dimensions
Weight	31.5 g
Width	75 mm
Depth	11 mm
Height	45 mm
Package width	170 mm
Package depth	105 mm
Package height	25 mm
Package weight	101 g
Packaging data
Package type	Box
Package width	170 mm
Package depth	105 mm
Package height	25 mm
Package weight	101 g
Quantity per pack	1 pc(s)
Performance
Data transfer rate	5000 Mbit/s
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
Export Control Classification Number (ECCN)	EAR99
Packaging content
Packaging content	1 - USB-C® to HDMI™ 4K 144Hz & USB™ 3.2 with Power Delivery 100W (JCA399) 1 - Quick Installation Guide (QIG)
Package type	Box
Design
Country of origin	Taiwan
Product colour	White
Cable length	0.2 m
Operational conditions
Operating temperature (T-T)	30 - 106 °F
Operating temperature (T-T)	-1 - 41 °C
Storage temperature (T-T)	-17 - 68 °C
Minimum operating temperature	-1 °C
Maximum operating temperature	41 °C
Sustainability
Sustainability compliance	Yes
Logistics data
Master (outer) case width	255 mm
Master (outer) case length	260 mm
Master (outer) case height	224 mm
Products per master (outer) case	16 pc(s)
Master (outer) case GTIN (EAN/UPC)	24712795088209
Shipping (inner) case width	11.8 cm
Shipping (inner) case length	19.9 cm
Shipping (inner) case height	11.7 cm
Products per shipping (inner) case	4 pc(s)
Shipping (inner) case net weight	500 g
Master (outer) case net weight	2.3 kg
Other features
Maximum resolution	3840 x 2160 pixels
Packaging content	1 - USB-C® to HDMI™ 4K 144Hz & USB™ 3.2 with Power Delivery 100W (JCA399) 1 - Quick Installation Guide (QIG)
