Neomounts NEXT Slim DS70-250BL1 Single monitor arm - 17-35" - 1-9 kg (curved 8 kg) - gas spring - 180°-stop - Topfix - Easy Install-model - 100% plastic-free packaging - black

Description

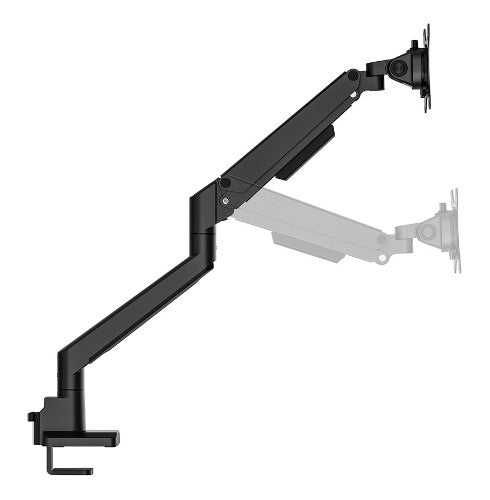

The Neomounts DS70-250BL1 NEXT Slim is a full motion desk mount designed for screens up to 35", boasting a maximum weight capacity of 9 kg suitable for both flat and curved displays. The versatile tilt (90°), rotate (360°) and swivel (180°) technology enables seamless adjustment to any desired viewing angle to fully optimize the screen's capabilities. With the gas spring height adjustment (21,5-49,5 cm) and depth adjustment (7-52,5 cm) you can effortlessly adjust the mount to suit your ergonomic needs.

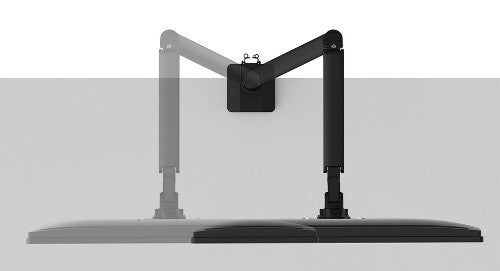

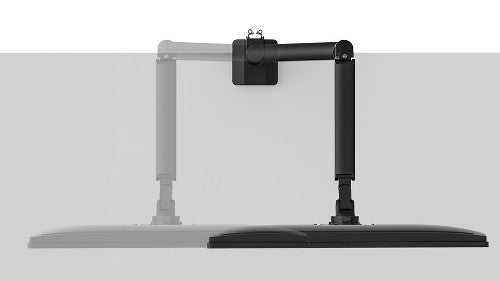

The DS70-250BL1 monitor arm features a nifty 180° stop mechanism, that prevents the mount from making contact with wall or separation panel when installed near it, while the integrated cable management system maintains a clutter-free desk.

The elegant black VESA plates of the NEXT Slim provide a perfect match with your screen, accommodating standard 75x75 or 100x100 mm VESA patterns. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The Quick-release VESA system enables easy setup, while the topfix clamp or grommet ensures a quick and straightforward installation.

Committed to sustainability, the packaging of NEXT Slim desk mounts is 100% plastic-free and entirely made from recyclable cardboard and paper.

Specifications

Mounting
Maximum weight capacity (per display)	9 kg
Desk thickness (min)	1 cm
Desk thickness (max)	5 cm
Minimum screen size	43.2 cm (17")
Panel mounting interface	75 x 75 mm
Number of displays supported	1
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Clamp/Grommet
Distance to the wall (min)	12.5 cm
Distance to the wall (max)	58 cm
Maximum weight capacity	9 kg
Maximum screen size	88.9 cm (35")
Maximum weight capacity (per curved/ultra-wide display)	8 kg
Ergonomics
Cable management	Yes
Adjustable depth	Yes
Depth adjustment range	70 - 525 mm
Height adjustment	Yes
Height adjustment range	215 - 495 mm
Pivot angle	-180 - 180°
Swivel angle range	-90 - 90°
Tilt angle range	-45 - 45°
Angle of rotation	360°
Height adjustment type	Gas spring
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Design
Product colour	Black
Housing material	Aluminium
Accepts padlock	No
Technical details
Mounting type	Desk
Minimum weight	1 kg
Distance to the wall (min)	12.5 cm
Distance to the wall (max)	58 cm
Product colour	Black
Width adjustment range	0 - 910 mm
Cable management	Yes
Warranty period	5 year(s)
Weight & dimensions
Width	114 mm
Depth	580 mm
Height	552 mm
Weight	2.3 kg
Package width	198 mm
Package depth	108 mm
Package height	428 mm
Package weight	2.9 kg
Packaging data
Package width	198 mm
Package depth	108 mm
Package height	428 mm
Package weight	2.9 kg
Other features
Minimum weight	1 kg
Width adjustment range	0 - 910 mm
Warranty period	5 year(s)
Mounting type	Desk
Mounting	Clamp/Grommet
Country of origin	China
Logistics data
Master (outer) case width	410 mm
Master (outer) case length	345 mm
Master (outer) case height	445 mm
Master (outer) case gross weight	18.3 kg
Products per master (outer) case	6 pc(s)
Country of origin	China
Products per pallet (EU)	84 pc(s)
Master (outer) case net weight	13.8 kg
Harmonized System (HS) code	7326909890
