Intel Core i5-1335U, 2 x SO-DIMM DDR5-5200 max 64GB, 1 x 2.5" SSD/HDD, 2 x M.2-2280, Intel UHD Graphics, 2 x LAN (1 x 2.5Gbit, 1 x 1Gbit), 90W

Key Features

• Fanless 1.3L-PC supports 24/7 operating

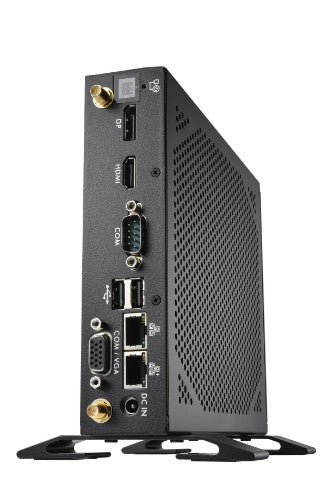

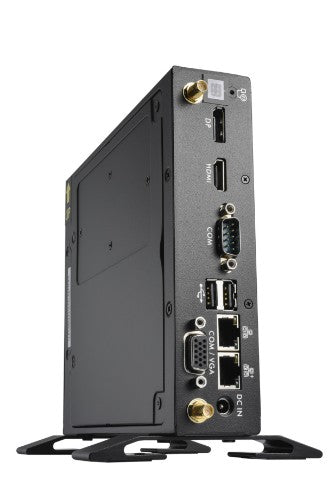

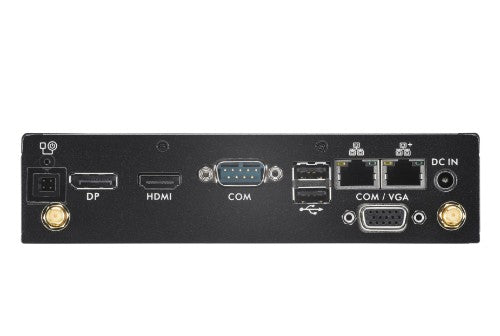

• Dual LAN (1x 2.5Gbit , 1x 1Gbit) , 1x COM (RS232) , VESA
• HDMI, Display Port and VGA

Description

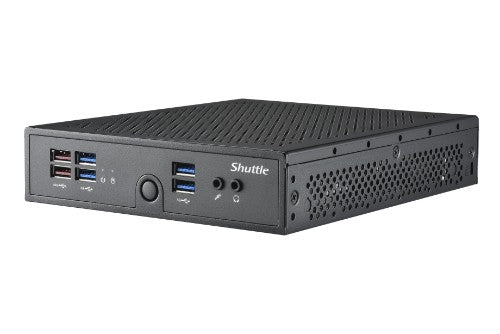

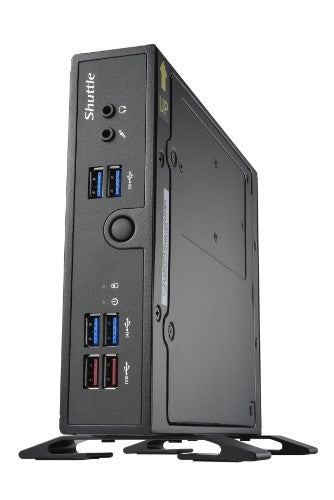

Fanless Slim PC with integrated ULV processor in industrial design
The DS50U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in Intel Gen 12/13 processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two DDR5 memory modules, one 2.5" drive and two M.2-2280 SSD cards.

Optionally, an 4G/5G module can be fitted in the second M.2 slot using the optional WWN04 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS50U5 series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.

Specifications

Motherboard
Number of processors supported	1
Processor
Thermal Design Power (TDP)	15 W
Built-in processor	Yes
Processor model	i5-1335U
Processor boost frequency	4.6 GHz
Processor threads	12
Processor cores	10
Processor family	Intel® Core™ i5
Number of processors supported	1
Processor manufacturer	Intel
ECC supported by processor	No
Processor cache	12 MB
Performance cores	2
Efficient cores	8
Performance-core boost frequency	4.6 GHz
Efficient-core boost frequency	3.4 GHz
Processor generation	13th gen Intel® Core™ i5
Memory
Memory voltage	1.1 V
Memory slots type	SO-DIMM
Number of memory slots	2
Memory channels	Dual-channel
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	5200 MHz
Maximum internal memory	64 GB
Internal memory installed	No
Video
On-board graphics card	Yes
Graphics card family	Intel
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5,M.2
Storage drive interface	PCI Express, Serial ATA III
Number of storage drives supported	3
NVMe	Yes
Storage drives installed	No
Graphics
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card model	Intel® UHD Graphics
Audio
Built-in speaker(s)	No
Audio chip	RealTek ALC888S
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Intel® I219, Intel I226-LM
Ports & interfaces
DisplayPort version	1.4
DC-in jack	Yes

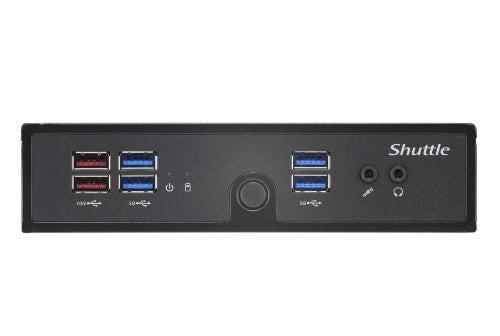

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
HDMI version	2.0b
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	1
USB 2.0 ports quantity	2
Serial ports quantity	1
Microphone in	Yes
Headphone outputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	2
Design
VESA mounting	Yes
Product type	Mini PC barebone
Housing material	Steel
Cable lock slot type	Kensington
Cable lock slot	Yes
On/off switch	Yes
Panel mounting interface	75 x 75,100 x 100 mm
LED indicators	HDD, Power
Cooling type	Passive
Product colour	Black
Chassis type	1.3L sized PC
Performance
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Yes
BIOS type	UEFI AMI
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Operating system installed	No
Number of processors supported	1
Audio chip	RealTek ALC888S
Harmonized System (HS) code	84733080
Colour
Product colour	Black
Technical details
BIOS type	UEFI AMI
Cable lock slot type	Kensington
Cable lock slot	Yes
Panel mounting interface	75 x 75,100 x 100 mm
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Quick start guide	Yes
Processor cores	10
Cooling type	Passive
Chassis type	1.3L sized PC
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, ErP
Compliance certificates	BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus
Packaging data
Power cord included	Yes
AC adapter included	Yes
Package weight	2.3 kg
Indication
LED indicators	HDD, Power
Software
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Yes
Operating system installed	No
Management features
On/off switch	Yes
Logistics data
Harmonized System (HS) code	84733080
Sustainability
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, ErP
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
AC adapter output voltage	19 V
AC adapter output current	1.6 A
Power supply type	External AC adapter
Power supply	90 W
Number of power supply units	1
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	200 mm
Depth	165 mm
Height	39.5 mm
Package weight	2.3 kg
Weight	1.6 kg
Packaging content
Power cord included	Yes
AC adapter included	Yes
Quick start guide	Yes
Other features
Chassis type	1.3L sized PC
