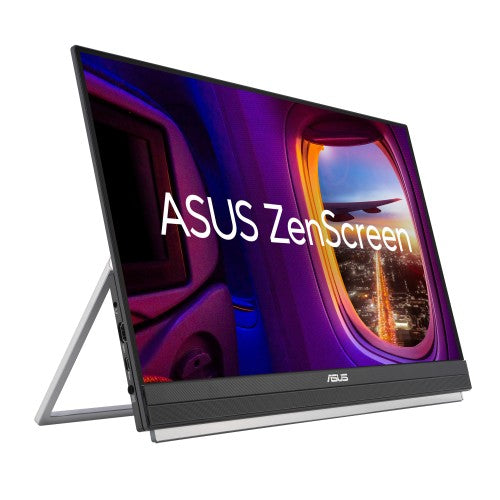

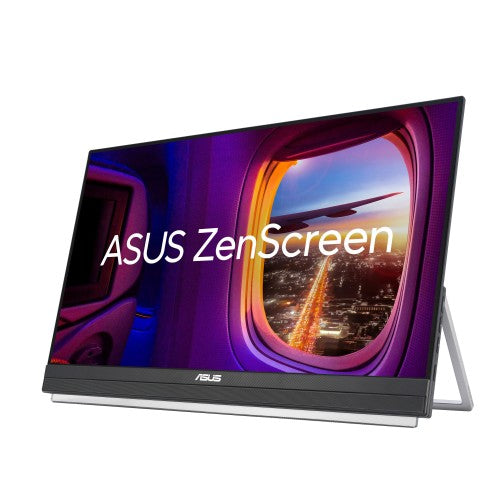

ZenScreen MB229CF portable 22 inch USB monitor (Full HD, IPS, 100Hz, 2.1 channel audio, speakers, carrying handle, partition hook)

Key Features

• 22-inch FHD IPS display with sleek, ultraslim profile and 2.2 kg overall weight enable effortless portability
• Multiple stand options and accessories, including an integrated carrying handle/kickstand, height-adjustable C-clamp with Z-axis adjustment, and partition hook kit for flexible placement
• Rich connectivity options include a full-function USB-C with 60-watt power delivery, HDMI, and earphone jack
• Powerful 2.1-channel audio with subwoofer for exceptionally well-balanced audio
• Environmentally friendly design with ENERGY STAR-certified energy efficiency, and packaged in FSC certified paper

Description

Redefine Your Workspace
ASUS ZenScreen MB229CF is designed to give multitasking a boost, with its large, frameless 21.5-inch FHD panel smooth 100Hz refresh rate. Its sleek 4.9mm profile and light 2.2 kg weight ensure effortless portability around the home, office, or co-working spaces. Plus, multiple stand options offer complete versatility, so you can configure MB229CF to meet any need. Its versatility lets you turn any space into a productive nook.

Make the most out of any workstation
ZenScreen MB229CF has an integrated carrying handle that doubles as a kickstand to prop the monitor at various angles for comfortable viewing. MB229CF also includes an ergonomic C-clamp arm and a bundled partition hook kit. The arm offers Z-axis adjustment for comfortable viewing positions, while the hook kit enables versatile placement for those looking to maximize desktop space―so it’s perfect for any confined area.

Design with ergo in mind

Fold-out kickstand

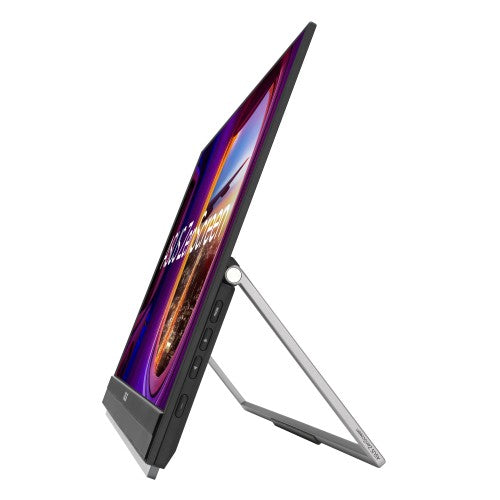

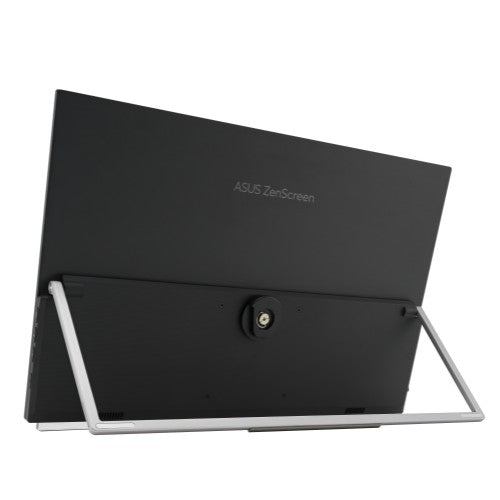

The carrying handle does double duty as a handy kickstand to securely prop ZenScreen MB229CF up at 12–60° on any flat surface, ensuring comfortable viewing angles. It’s perfect for multitasking or for demonstrations to small groups.

Partition-mounted
The unique partition hook kit helps you free up precious desktop space by enabling you to hang ZenScreen MB229CF from cubicle partitions or dividers. Offering 150 mm of height adjustment, the hanger kit lets you raise or lower the screen to eye level for perfect viewing.

C-clamp arm

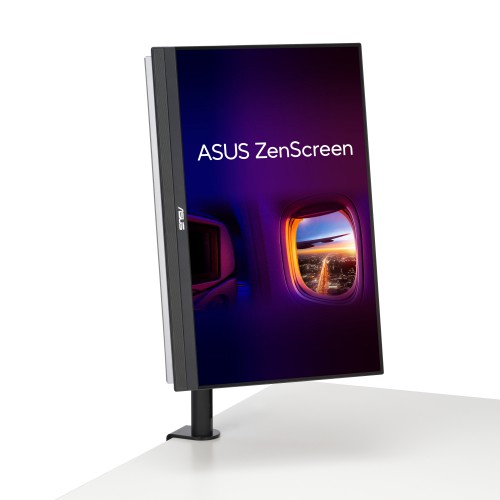

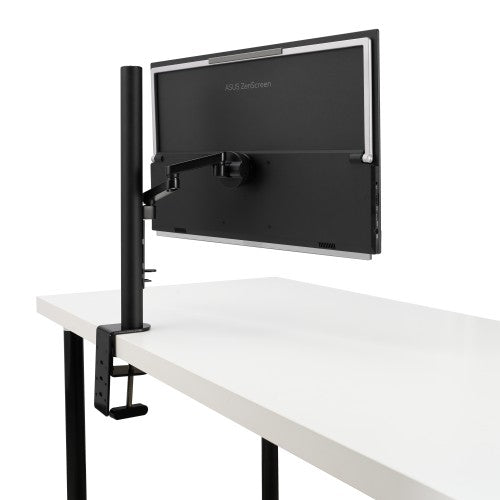

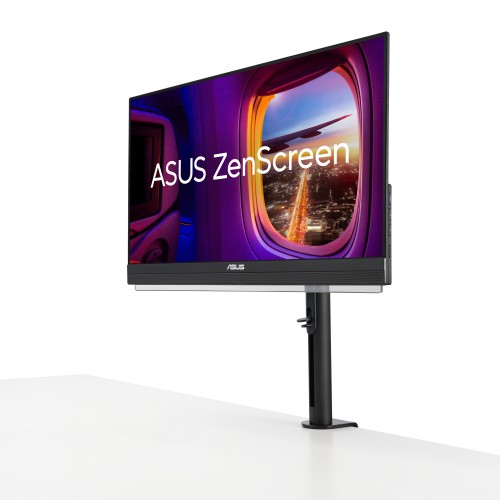

The C-clamp arm allows you to tilt and pan ZenScreen MB229CF for ideal viewing at eye level. It offers -5˚-20˚ tilt, -90-90˚swivel, -90-90˚ pivot, and extension/retraction adjustments of up to 144mm. A quick-release mechanism allows you to easily mount or detach the monitor from the stand.

Full connectivity
A variety of I/O ports ensure compatibility with a wide range of devices. Integrated USB-C connectivity provides audiovisual signal transmission along with 60-watt power delivery, and HDMI® and an earphone jack offer convenience.
*DP Alt mode support required for attached device.

Big on convenience
ZenScreen MB229CF is larger than most portable monitors, and its frameless FHD IPS panel delivers up to 22-inch stunning diagonal visuals and wide, 178° viewing angles.

The anti-glare panel reduces reflections and glare, enabling you to comfortably work near a window or share content with a group.

And with its 2.2 kg design and carrying handle, MB229CF makes hotdesking easy―so any space can be transformed into a productive work area.

Immersive audiovisuals for work and play
With 2.1 channel audio speakers deliver incredible sound, so you can enjoy immersive audio when watching videos, listening to music, or when gaming.

ASUS Eye Care technology
ASUS Ultra-Low Blue Light technology protects you from potentially harmful blue light emissions. Included special features are especially beneficial to those who spend extended hours in front of a display.

The TÜV Rheinland-certified ASUS Blue Light Filter can be easily engaged via the onscreen display menu, with an intuitive slider allowing you to set your preferred filter level. All ASUS displays undergo stringent performance tests, and ZenScreen monitors have been certified by TÜV Rheinland laboratories, a global provider of technical, safety, and certification services.

TÜV Rheinland-certified ASUS Flicker Free technology eliminates flicker, ensuring comfortable viewing experiences. This technology helps minimize eyestrain and other ailments typically associated with extended hours of viewing.

Environmental Certification
ASUS ZenScreen portable monitor is stringently tested to meet the requirements of world-leading sustainability certifications. These tests include a comprehensive database of up-to-date criteria, independent verification, and a structured system for continuous improvement.

Eco-friendly Packaging
ASUS ZenScreen portable monitor is FSC Mix-certified, thanks to its sustainable packaging. An exclusive insert-molding process gives the monitor its light weight and thin profile while, cutting down on materials used. The Eco-Friendly Packaging-Paper-based materials is not only light weight and overall volume is as low as possible, for more efficient shipping.

Energy-Efficient Features
ASUS ZenScreen portable monitor meets the requirements of the ENERGY STAR® Computers Specification Version 8.0.

Specifications

Display
HDCP	Yes
Display brightness (typical)	250 cd/m²
Screen shape	Flat
Display number of colours	16.7 million colours
Native aspect ratio	16:9
Maximum refresh rate	100 Hz
HD type	Full HD
Display technology	LED
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.248 x 0.248 mm
Viewable size, horizontal	47.6 cm
Viewable size, vertical	26.8 cm
Digital horizontal frequency	30 - 111 kHz
Digital vertical frequency	48 - 100 Hz
Display resolution	1920 x 1080 pixels
Response time	5 ms
Display diagonal	54.6 cm (21.5")
Contrast ratio (typical)	1000:1
Touchscreen	No
Panel type	IPS
LED backlight	Yes
Anti-glare screen	Yes
Audio
Built-in speaker(s)	Yes
Performance
Built-in speaker(s)	Yes
Built-in camera	No
AMD FreeSync	No
Game mode	Yes
NVIDIA G-SYNC	No
VESA Adaptive Sync support	Yes
Low Blue Light technology	Yes
Flicker-free technology	Yes
Brand specific technologies	SPLENDID
Shadow control	Yes
Multimedia
Built-in speaker(s)	Yes
Built-in camera	No
Design
Market positioning	Home
Certification	Energy Star TÜV Flicker-free TÜV Low Blue Light FSC MIX
Product colour	Black
Camera
Built-in camera	No
Ports & interfaces
Built-in USB hub	No
USB Type-C downstream ports quantity	1
Headphone out	Yes
DC-in jack	Yes
HDMI ports quantity	1
HDCP	Yes
Headphone outputs	1
HDMI	Yes
HDMI version	1.4
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	60 W
USB Type-C DisplayPort Alternate Mode	Yes
HDCP version	1.4
Technical details
Height (without stand)	318 mm
Depth (without stand)	22 mm
Width (without stand)	487 mm
Cable lock slot	No
HDMI	Yes
Product colour	Black
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, Forest Stewardship Council (FSC) Mix
Game mode	Yes
Weight (with stand)	4 kg
Touchscreen	No
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Cable lock slot	No
Panel mounting interface	100 x 100 mm
Swivelling	Yes
Swivel angle range	-90 - 90°
Tilt angle range	-5 - 20°
Pivot	Yes
Pivot angle	-90 - 90°
Height adjustment	Yes
Tilt adjustment	Yes
Adjustable height (max)	18 cm
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	13 W
Power consumption (PowerSave)	0.5 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	D
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	13 kWh
European Product Registry for Energy Labelling (EPREL) code	1846161
Weight & dimensions
Height (without stand)	318 mm
Depth (without stand)	22 mm
Width (without stand)	487 mm
Width (with stand)	487 mm
Depth (with stand)	301 mm
Height (with stand)	722 mm
Weight (with stand)	4 kg
Weight (without stand)	2.2 kg
Package width	547 mm
Package depth	129 mm
Package height	398 mm
Package weight	6 kg
Packaging data
Package width	547 mm
Package depth	129 mm
Package height	398 mm
Package weight	6 kg
Package type	Box
Sustainability
European Product Registry for Energy Labelling (EPREL) code	1846161
Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, Forest Stewardship Council (FSC) Mix
Other features
Certification	Energy Star TÜV Flicker-free TÜV Low Blue Light FSC MIX
Brand specific technologies	SPLENDID
Shadow control	Yes
Game mode	Yes
Height (without stand)	318 mm
Depth (without stand)	22 mm
Width (without stand)	487 mm
HDMI	Yes
USB Power Delivery up to	60 W
Energy efficiency scale	A to G
USB Type-C DisplayPort Alternate Mode	Yes
Touchscreen	No
USB Power Delivery (USB PD)	Yes
Package type	Box
Certificates
Certification	Energy Star TÜV Flicker-free TÜV Low Blue Light FSC MIX
