120mm x 25mm, 0.66A, RGB

Key Features

• Advanced performance blade shape
• Requires iCUE LINK System Hub (included with RX Starter Kits)
• AirGuide technology for concentrated cooling
• Magnetic dome bearing for minimal noise

Description

CORSAIR RX120 RGB PWM fans deliver cooling performance by pushing high airflow through obstructions with high static pressure and CORSAIR AirGuide technology.

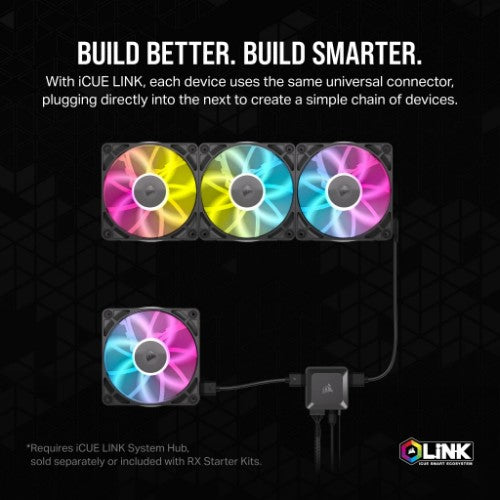

WHAT IS iCUE LINK?

BUILD BETTER. BUILD SMARTER.

THE EASY WAY TO BUILD A PC
Reduce cable clutter with a network of smart, interconnected components.

LINK YOUR COMPONENTS
The iCUE LINK ecosystem uses a single connector for all iCUE LINK devices.

UNITE YOUR SETUP
Each component connects directly to the next, creating a chain of devices.

PERFORMANCE WHERE IT MATTERS

PEAK COOLING POWER
Push airflow through cases and radiators like never before at low, medium, and high speeds. RX Series fans deliver high airflow and static pressure, while keeping noise as low as possible.

AIRFLOW AND STATIC PRESSURE
A better fan relies on several key features, each improving how it handles air pressure and airflow as a radiator or case fan. RX fans were engineered to excel at both.

BLADE SHAPE
Optimized angle of attack, airfoil shape, and edge curvature ensure maximum airflow efficiency

FAN HOUSING
The fan housing was designed to support the largest possible blade radius within its size limit.

CORSAIR AIRGUIDE
Stator vanes are angled to focus the exhaust airflow cone and improve the coverage of radiator fins and heat dissipation.

EVERY SOURCE OF NOISE ADDRESSED

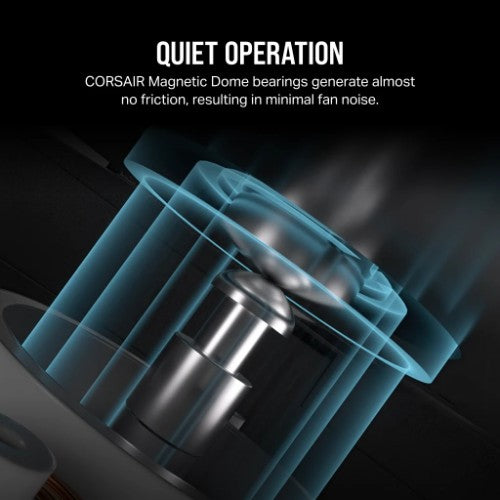

CORSAIR MAGNETIC DOME BEARING
This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.

DESIGNED FOR REAL LIFE PERFORMANCE
RIGOROUSLY TESTED AND PERFECTED
Months of material and design optimization, along with meticulous testing, led to the RX Series’ unbeatable performance in delivering high static pressure and efficient airflow. These tests ensure that the fan performs exceptionally across a wide range of speeds.

Read more about how radiator fan performance is actually measured, what the specifications mean in practice and what separates good fans from great fans.

REMOVING AGE-OLD ANNOYANCES

QUIKTURN SCREW REVOLUTION
Take CORSAIR's QuikTurn screws for a single spin and see how convenient fan installation can be: as robust and secure as any traditional screw, and an absolute pleasure to use. Especially when you need to use 20 or more in a build.

HARNESS THE POWER OF ICUE LINK
Unleash the full potential of your fans using CORSAIR iCUE software, from fine-tuned fan speeds to pre-set fan curves.

Specifications

Performance
Suitable location	Computer case
Pulse-width modulation (PWM) support	Yes
Rotational speed (min)	400 RPM
Rotational speed (max)	2100 RPM
Bearing type	Magnetic levitation bearing
Noise level (low speed)	10 dB
Noise level (high speed)	36 dB
Type	Fan
Fan diameter	12 cm
Minimum airflow (imperial)	10.4 cfm
Maximum airflow	73.5 cfm
Number of fans	1 fan(s)
Quantity per pack	1 pc(s)

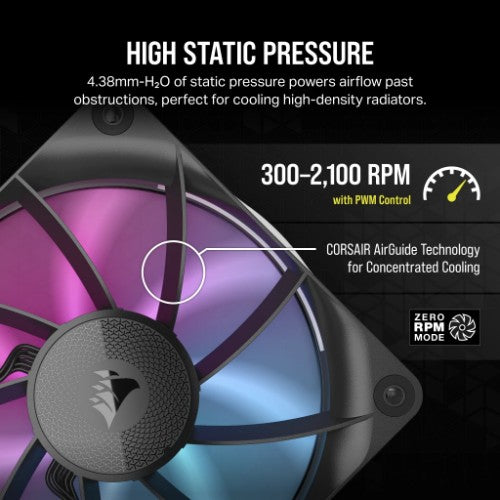

Fan static pressure	4.38 mmH2O
Design
Number of fans	1 fan(s)

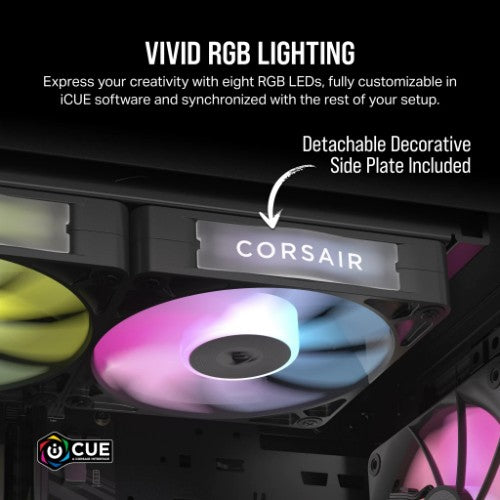

Illumination colour	Multi
Product colour	Black
Illumination LED	Yes
Technical details
Noise level (low speed)	10 dB
Noise level (high speed)	36 dB
Type	Fan
Fan diameter	12 cm
Minimum airflow (imperial)	10.4 cfm
Maximum airflow	73.5 cfm
Number of fans	1 fan(s)
Illumination LED	Yes
Warranty period	5 year(s)
Power
Fan current	0.66 A
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Weight	25 g
Indication
Illumination colour	Multi
Packaging data
Package type	Box
Packaging content
Screws included	Yes
Number of screws	20
Package type	Box
