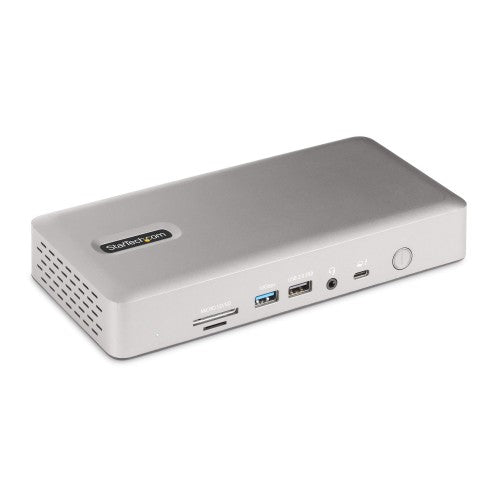

StarTech.com Universal USB4 & Thunderbolt 4 Docking Station, Quad Display on Windows, Dual Display on MacBook, HDMI DP Dock with 98W Laptop Charging

Key Features

• Universal USB4 and Thunderbolt Dock: This high-performance dock offers driverless compatibility with Windows and macOS; Designed to work with Intel, Apple Silicon, AMD, Snapdragon X Copilot+ PCs, it's ideal for mixed-device fleets and laptop refreshes
• Quad Display On Windows: Enables up to four 4K 60Hz monitors when connected to Windows laptops with Intel 12th Gen CPUs (or later) and DP 1.4 with DSC; Also supports triple or dual displays on older systems without
• Dual Display on Mac: Get dual extended 4K 60Hz displays on MacBook Air / Pro with M3 or M4 (clamshell mode required with M3); For M1 and M2 MacBook Pro, dual extended display requires Pro or Max chip
• 98W Power Delivery: Includes fully spec'd power adapter to simultaneously charge laptop (98W PD) and power all ports; Downstream USB 2.0 port supports 7.5W (1.5A) for charging mobile devices or other battery-powered devices
• The IT Pro's Choice : Our docking stations are rigorously tested in our Innovation Lab to ensure enterprise-grade reliability and cross-platform compatibility; Built to support large-scale deployments, Windows 11 upgrades, and the shift to AI-enabled PCs

Description

Universal Laptop Dock offering driverless compatibility with Windows and macOS

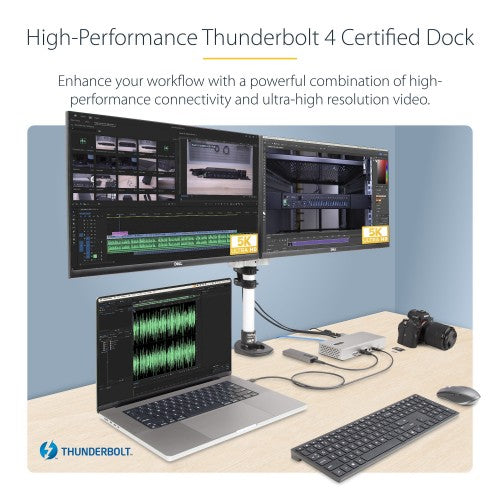

Engineered to maximize performance and future-proof your workspace, this universal USB4 and Thunderbolt 4 dock is Thunderbolt Certified, ensuring reliable connectivity and optimal user experience.

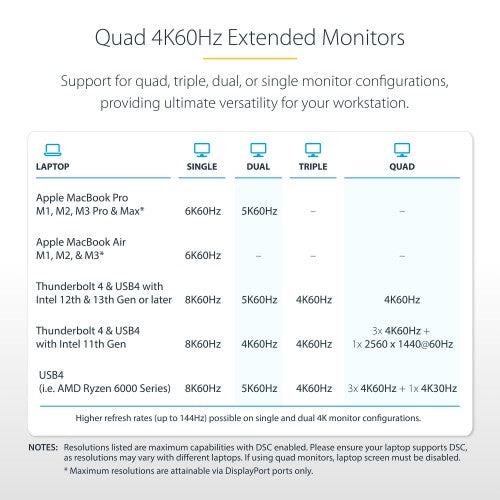

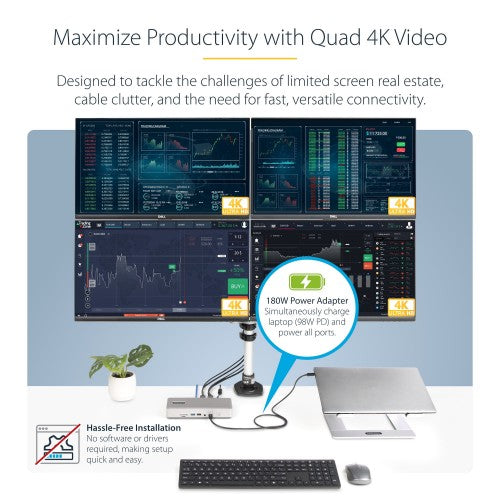

Quad Display on Windows

Push the boundaries of productivity with quad 4K 60Hz displays on Windows laptops running the latest Intel 12th Gen CPUs (or later) and DP 1.4 with DSC. Legacy systems still benefit from flexible dual or triple monitor setups.

Dual Display on Mac

Experience dual extended 4K displays on MacBook Air and Pro powered by M3 or M4 chips (clamshell mode required for M3), and MacBook M1 / M2 Pro or Max configurations. For Apple computers featuring the M-series base processor only a single display is supported.

98W Power Delivery

Includes a fully spec'd 180W power adapter that enables the dock to charge the laptop with 98W Power Delivery, while preserving enough additional power for the downstream USB 2.0 port to support BC 1.2 with 7W (1.5A) for charging tablets, smartphones or other battery-powered USB devices.

Enterprise Management Tools

StarTech.com Connectivity Tools offer practical utilities to support device management and increase productivity in modern IT environments. With features like MAC address pass-through, Wi-Fi auto switch, and USB device monitoring, the software helps IT teams streamline deployment and strengthen security across diverse setups.

Visit www.StarTech.com/Connectivity-Tools to download the Enterprise Management Tools.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Headphone connectivity	3.5 mm
Host interface	Thunderbolt 4
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
HDMI version	2.1
DisplayPorts quantity	2
Headphone outputs	1
DC-in jack	Yes
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	98 W
DisplayPort version	1.4
Network
Full duplex	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Ethernet LAN (RJ-45) ports	1
Copper ethernet cabling technology	2.5GBASE-T, 10BASE-T, 100BASE-T, 1000BASE-T
Performance
UASP support	Yes
Maximum digital resolution	7680 x 4320 pixels
Full duplex	Yes
On/off switch	Yes
Product colour	Grey
Card reader integrated	Yes
Cable lock slot	Yes
LED indicators	LAN, Power
Data transfer rate	40 Gbit/s
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC

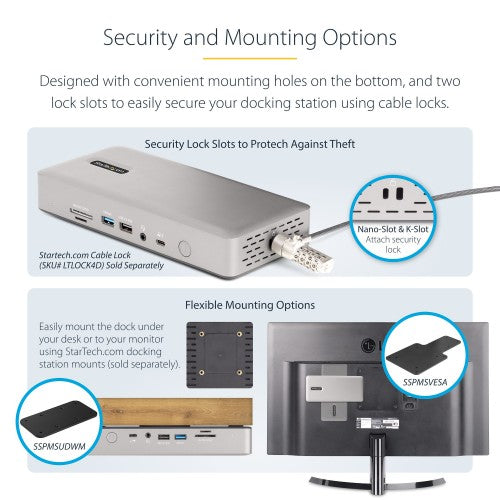

Cable lock slot type	Kensington, Nano
HD type	8K Ultra HD
Housing material	Aluminium
Maximum refresh rate	60 Hz
Technical details
Product colour	Grey
Cable lock slot	Yes
Data transfer rate	40 Gbit/s
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
Products per master (outer) case	4 pc(s)
Master (outer) case width	380 mm
Master (outer) case length	310 mm
Master (outer) case height	285 mm
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
Power
Power source type	DC
Input current	2.5 A
Power consumption (max)	180 W
Compatible power plug types	EU, UK
AC input voltage	110 - 240 V
Output voltage	20 V
Output current	9 A
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Indication
LED indicators	LAN, Power
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Sustainability
Sustainability compliance	Yes

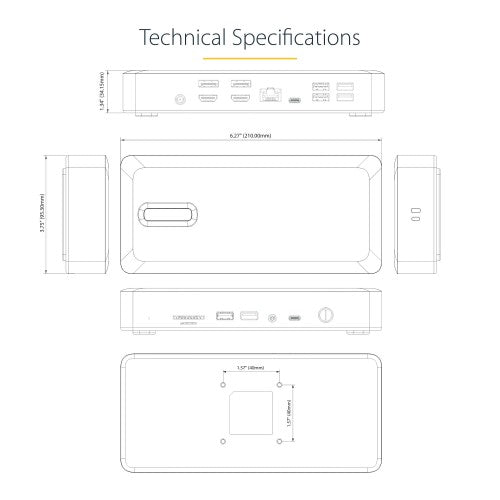

Weight & dimensions
Weight	200 g
Width	210 mm
Depth	96 mm
Height	34 mm
Package weight	1.4 kg
Package width	235 mm
Package depth	145 mm
Package height	90 mm
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Product colour	Grey
Cable lock slot	Yes
LED indicators	LAN, Power
Cable lock slot type	Kensington, Nano
Packaging data
Package weight	1.4 kg
Package width	235 mm
Package depth	145 mm
Package height	90 mm

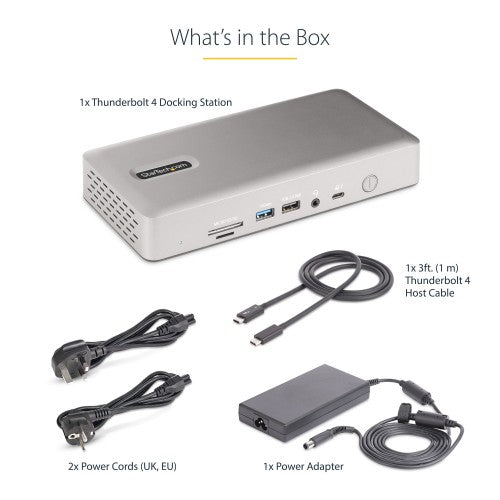

Packaging content
Quick start guide	Yes
Cables included	Thunderbolt
AC adapter included	Yes
Logistics data
Products per master (outer) case	4 pc(s)
Master (outer) case width	380 mm
Master (outer) case length	310 mm
Master (outer) case height	285 mm
Other features
Chipset	Intel - JHL8440, Cypress - HX3PD, Parade - FL5801, Realtek - RTL8156BG, Genesys Logic - GL3231S, Realtek - ALC4030U, Realtek - RTD2188, Cypress - CCG5, TI - TPS2546
