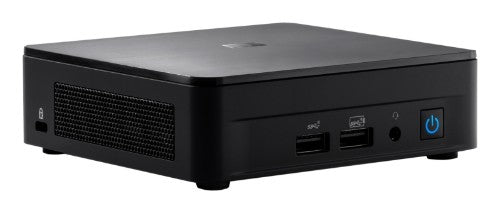

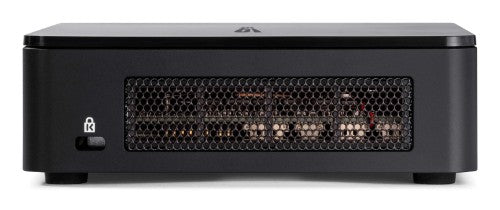

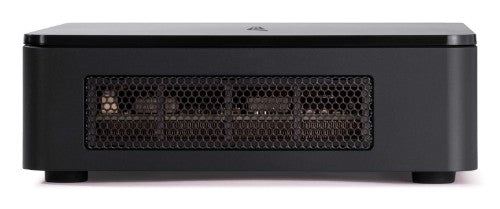

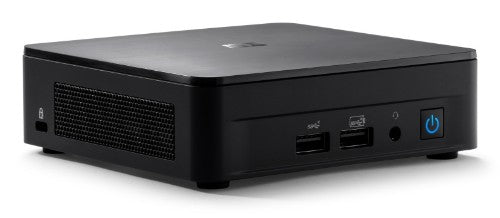

NUC 12 Pro Slim Kit RNU12SKI300000I (Intel Tsure 1220P Processor, Intel UHD Graphics, Intel Wi-Fi WILL, ohne Betriebssystem, ohne Netzkabel)

Key Features

• 12th Gen Intel Core i7/i5/i3 processors or Intel vPro Enterprise with 12th Gen Intel Core i7/i5 processors
• Intel Iris Xe graphics
• Up to 64 GB dual-channel DDR4-3200 SODIMMs
• M.2 22x80 key M slot for PCIe x4 Gen 4 NVMe SSD
• M.2 22x42 key B slot for PCIe x1 Gen 3, USB 3.2 Gen 2, USB 2.0, and SATA SSD
• expandability
• Support in tall chassis for third SSD with 2.5” drive capability (up to 15mm tall)

Description

Built for Business. NUC 12 Pro
Boost business performance with 12th Gen Intel® Core™ processors and the latest features to support productivity, collaboration, and edge compute.

NUC 12 Pro Mini PCs, Kits, & Boards
Ready to work, wherever it’s needed—the 4x4 compact device is designed to go where you go, and fit into any space.

Surprising size. Supercharged performance
Level up your business with the latest technologies.

Specifications

Motherboard
Motherboard form factor	UCFF
Number of processors supported	1
Processor
Built-in processor	Yes
Processor model	i3-1220P
Processor threads	12
Processor cores	8
Processor family	Intel® Core™ i3
Number of processors supported	1
Processor manufacturer	Intel
Processor cache	12 MB
Performance cores	4
Efficient cores	4
Performance-core Max Turbo Frequency	4.2 GHz
Efficient-core Max Turbo Frequency	3.1 GHz
Processor generation	12th gen Intel® Core™ i3
Memory
Memory voltage	1.2 V
Memory slots type	SO-DIMM
Number of memory slots	2
ECC	No
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	3200 MHz
Maximum internal memory	64 GB
Video
On-board graphics card	No
Graphics card family	Intel
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2
Number of storage drives supported	2
SSD form factor	M.2
NVMe	Yes
Graphics
Number of displays supported	4
On-board graphics card	No
Graphics card family	Intel
On-board graphics card model	Intel Iris Xe Graphics
Audio
Built-in speaker(s)	No
Network
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Bluetooth version	5.2
Bluetooth	Yes
Ethernet LAN	Yes
Wi-Fi	Yes
LAN controller	Intel I225-V
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211

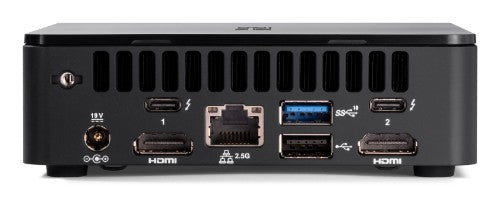

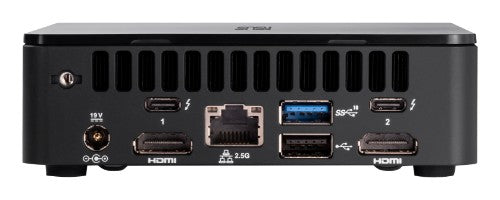

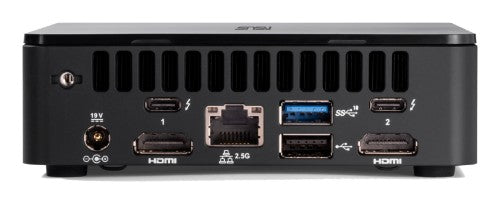

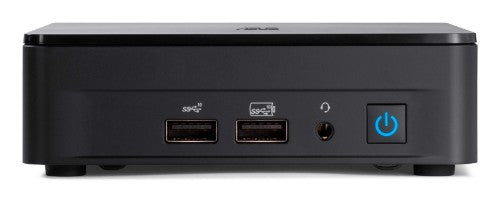

Ports & interfaces
Serial port via internal header	No
Combo headphone/mic port	Yes
DC-in jack	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
HDMI version	2.1
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
Thunderbolt 4 ports quantity	2
Expansion slots
PCI Express slots version	4.0
Design
Motherboard form factor	UCFF
VESA mounting	Yes
Product type	Mini PC barebone
On/off switch	Yes
LED indicators	Yes
Cooling type	Active
Product colour	Black
Chassis type	UCFF
Performance
Motherboard form factor	UCFF
Windows operating systems supported	Windows 11 Home, Windows 11 Pro, Windows 10 Home, Windows 10 IoT Enterprise, Windows 10 Pro
Linux operating systems supported	Yes
Number of displays supported	4
Number of processors supported	1
Colour
Product colour	Black
Technical details
Processor cores	8
Cooling type	Active
Chassis type	UCFF
Indication
LED indicators	Yes
Software
Windows operating systems supported	Windows 11 Home, Windows 11 Pro, Windows 10 Home, Windows 10 IoT Enterprise, Windows 10 Pro
Linux operating systems supported	Yes
Management features
On/off switch	Yes
Features
Number of displays supported	4
Power
Power supply type	External AC adapter
Weight & dimensions
Width	117 mm
Depth	112 mm
Height	37 mm
Other features
Chassis type	UCFF
