RJ-45/Serial, Black

Key Features

• Provides two additional serial ports to an RTI control processor
• Use multiple ESC-2+ modules for virtually unlimited control of serial devices
• Integrates seamlessly into Integration Designer
• Can be discovered and configured by Integration Designer over Ethernet
• Easy wiring to devices using cat-5 cable - Includes two RJ45 to serial adapters
• A reset button allows the unit to be set back to default settings

Description

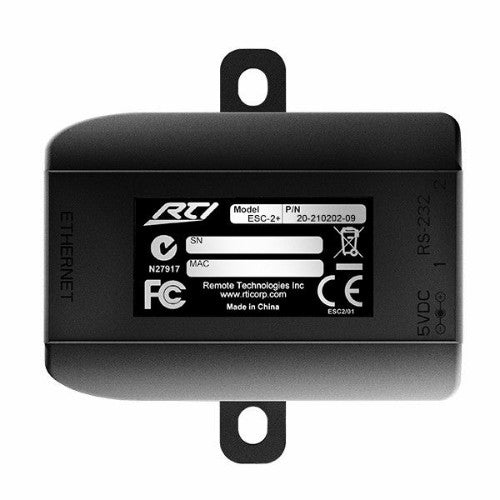

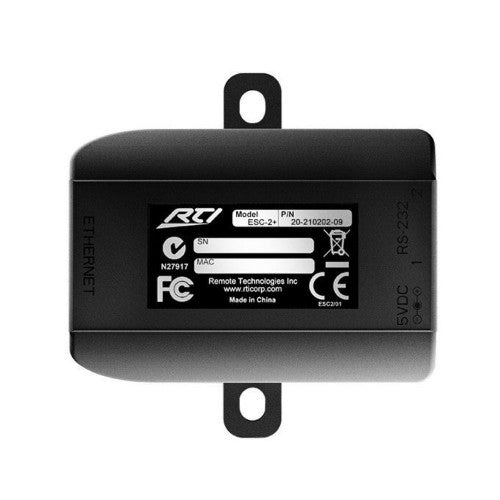

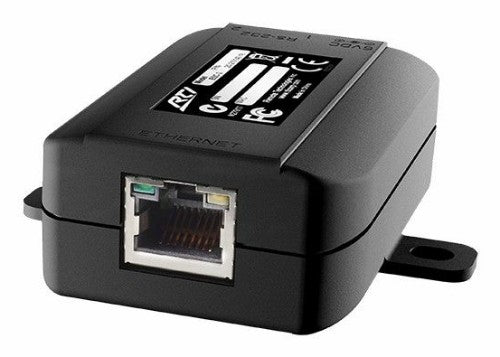

ESC-2+ Ethernet to Serial Converter

The second generation ESC-2+ Ethernet to Serial Converter provides a convenient way to add two RS-232 ports to an RTI XP series control processor. Wire the ESC-2+ to the local Ethernet network for full two-way control, as if the device was wired directly to the control processor. Two built-in RJ-45 jacks and the included RJ-45 to DB9 adapters allow Cat-5 cabling between the ESC-2+ and the device being controlled. This allows full RS-232 control virtually anywhere there is access to an Ethernet network connection. The ESC-2+ model includes a reset button, which allows the unit to be set back to default settings.

Specifications

Technical details
Connector gender	Female/Female
Output interface	RJ-45
Host interface	RJ-45
Product colour	Black
Weight & dimensions
Width	71 mm
Depth	25 mm
Height	45 mm
Weight	50 g
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Material
Housing material	Acrylonitrile butadiene styrene (ABS)
