1460 x 913mm Sapphire Electric Projector Screen 68"

Key Features

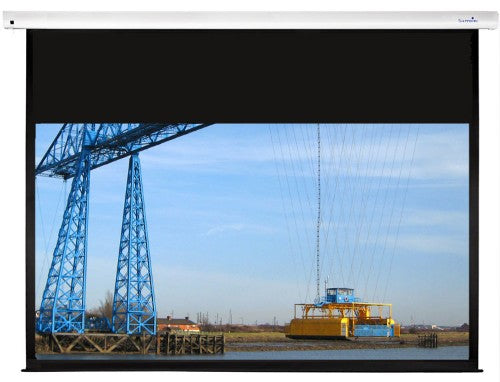

• All Sapphire Screens are supplied with a picture enhancing black border which will frame the image for an excellent viewing experience
• The Screen is supplied with a radio remote control and wireless RF dongle
• Supplied with bare end cables for RS232 and contact closure
• Supplied with 10m trigger cable to enable you to trigger the screen once the projector is on or off (projector needs a 12v output)
• The remote control will operate the screen up to 25 meters away
• Energy saving with the ultra low power consumption

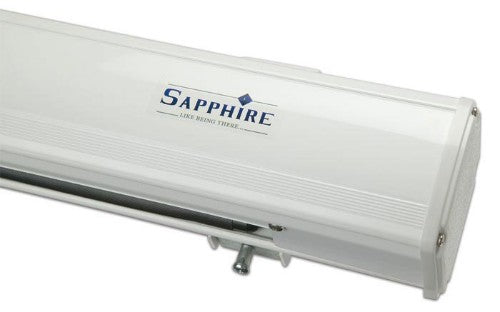

• Sleek white aluminium casing will allow a discreet installation in any environment

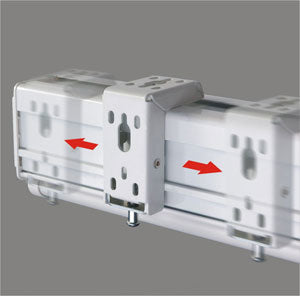

• Channel fix brackets allow the Screen to be wall or ceiling mounted at any position along the casing
• 2.7 meters of power cable with a standard UK power plug
• Excellent Quality - We stand by the quality of our products by offering an outstanding 3 year warranty
• Optional wall switch available

Description

- All Sapphire Screens are supplied with a picture enhancing black border which will frame the image for an excellent viewing experience.
- The Screen is supplied with a radio remote control and an inline wall switch that has an up and down feature.
- The inline wall switch enables you to operate the screen via RS232 or contact closure.
- The remote control will operate the screen up to 25 meters away.
- Energy saving with the ultra low power consumption.
- Sleek white aluminium casing will allow a discreet installation in any environment.
- Channel fix brackets allow the Screen to be wall or ceiling mounted at any position along the casing.
- 2.7 meters of power cable with a standard UK power plug.
- The inline wall switch is situated half way down the power cable for easy reach.

Sapphire's matt white fabric is composed of triple ply fibreglass laminate which helps prevent wrinkles and waves. The screen fabric consists of a special material that helps prevent the loss of light, making it compatible with non short throw projectors. Our screen fabrics are designed to be fire, water, and mould resistant and can be cleaned if necessary. The top layer of the fabric has microdots that are made with PVC technology that helps create the best possible reflection.
The 1.1 gain reflects the same amount of light back that the projector produces achieving a true cinema experience.
The back of the fabric is completely black enabling you to put this in front of a window.

Specifications

Performance
Native aspect ratio	16:10
Screen surface	Matte White
Country of origin	China
Certification	CE, ROHS
Harmonized System (HS) code	9010600000
Viewable screen height (H)	91.3 cm
Viewable screen width (W)	146 cm
Overall screen size (Height x Width)	131.8 x 156 cm
Diagonal (metric)	172.72 cm
Diagonal	172.7 cm (68")
Viewing angle	160°
Remotely operated	Yes
Screen gain	1.1
Format	Wide
Drive type	Motorized
Tensioned screen	No
Design
Easy to install	Yes
Borders	Yes
Material	Aluminium
Product colour	White
Case colour	White
Borders	5 cm
Black drop	35 cm
Black backing	Yes
Mounting type	Ceiling/wall
Power
Power	103.5 W
Input voltage	230 V
Input current	0.45 A
Technical details
Screen surface	Matte White
Easy to install	Yes
Country of origin	China
Certification	CE, ROHS
Borders	Yes
Viewable screen height (H)	91.3 cm
Viewable screen width (W)	146 cm
Overall screen size (Height x Width)	131.8 x 156 cm
Diagonal (metric)	172.72 cm
Material	Aluminium
Diagonal	172.7 cm (68")
Viewing angle	160°
Remotely operated	Yes
Screen gain	1.1
Format	Wide
Borders	5 cm
Black drop	35 cm
Drive type	Motorized
Tensioned screen	No
Black backing	Yes
Package width	1981 mm
Package height	155 mm
Package depth	160 mm
Products per pallet	36 pc(s)
Pallet gross width	100 cm
Pallet gross weight	388.8 kg
Pallet gross length	198.1 cm
Pallet gross height	120 cm
Master (outer) case width	160 mm
Master (outer) case gross weight	10.8 kg
Master (outer) case length	1981 mm
Master (outer) case height	155 mm
Products per pallet layer (UK)	6 pc(s)
Products per pallet layer	6 pc(s)
Products per pallet (UK)	36 pc(s)
Products per master (outer) case	1 pc(s)
Pallet width (UK)	100 cm
Pallet weight (UK)	388.8 kg
Pallet length (UK)	198.1 cm
Pallet height (UK)	120 cm
Minimum order quantity	1 pc(s)
Colour
Product colour	White
Case colour	White
Weight & dimensions
Depth	79 mm
Height	93 mm
Width	1744 mm
Weight	85 kg
Dimensions folded (WxDxH)	1744 x 79 x 93 mm
Projector
Diagonal	172.7 cm (68")
Packaging data
Package width	1981 mm
Package height	155 mm
Package depth	160 mm
Manual	No
Package weight	10.8 kg
Remote control included	Yes
Quantity per pack	1 pc(s)
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
UN number	WW/BA0104WV
Packaging content
Manual	No
Remote control included	Yes
Quantity per pack	1 pc(s)
Batteries included	Yes
Battery
Battery weight	11.5 g
Number of battery cells	2
Certification
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
UN number	WW/BA0104WV
Other features
Country of origin	China
Harmonized System (HS) code	9010600000
Logistics data
Harmonized System (HS) code	9010600000
Shipping (inner) case width	16 cm
Shipping (inner) case length	198.1 cm
Shipping (inner) case height	15.5 cm
Shipping (inner) case gross weight	10.8 kg
Products per shipping (inner) case	1 pc(s)
Products per pallet	36 pc(s)
Pallet gross width	100 cm
Pallet gross weight	388.8 kg
Pallet gross length	198.1 cm
Pallet gross height	120 cm
Master (outer) case width	160 mm
Master (outer) case gross weight	10.8 kg
Master (outer) case length	1981 mm
Master (outer) case height	155 mm
Products per pallet layer (UK)	6 pc(s)
Products per pallet layer	6 pc(s)
Products per pallet (UK)	36 pc(s)
Products per master (outer) case	1 pc(s)
Pallet width (UK)	100 cm
Pallet weight (UK)	388.8 kg
Pallet length (UK)	198.1 cm
Pallet height (UK)	120 cm
Minimum order quantity	1 pc(s)
