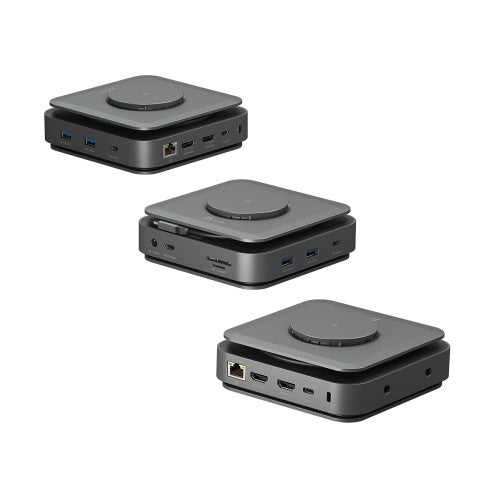

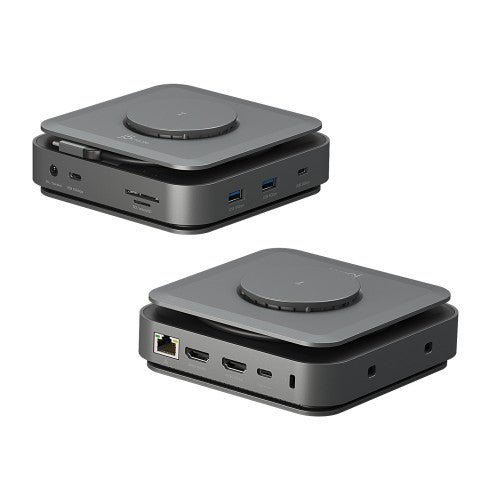

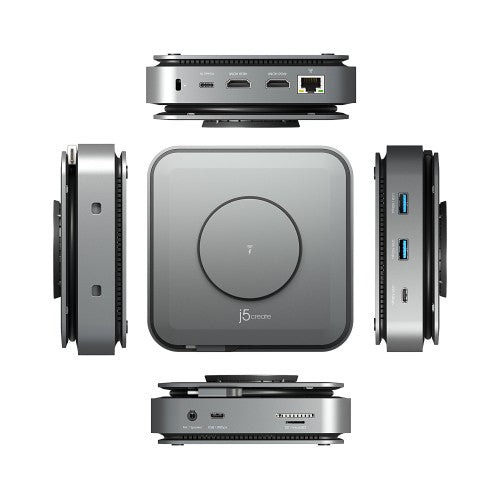

USB-C Dock Dual 4K HDMI

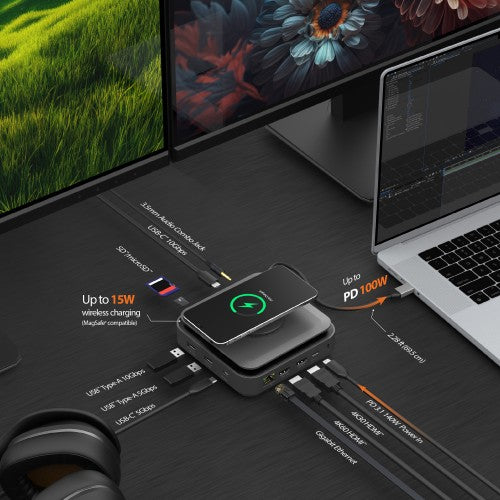

Key Features

• Supports dual 4K HDMI™ (4K@60Hz + 4K@30 Hz)
• Supports Power Delivery 3.1 140W power in
• Two USB™ 10Gbps and two USB™ 5Gbps ports for connecting peripherals
• Built-in magnetic wireless charger provides up to 15W fast wireless charging. Compatible with iPhone® MagSafe®, Samsung® S23/S22/S21, Google™ Pixel™ 5/6/7, AirPods®, and more. The 15W wireless charging will only work when a USB-C® 60W or above power adapter is connected to the dock
• Reliable network connectivity via the Gigabit Ethernet

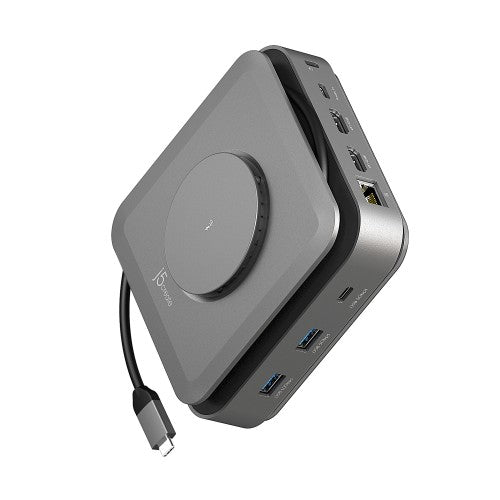

• Cable storage compartment
• Security lock

Description

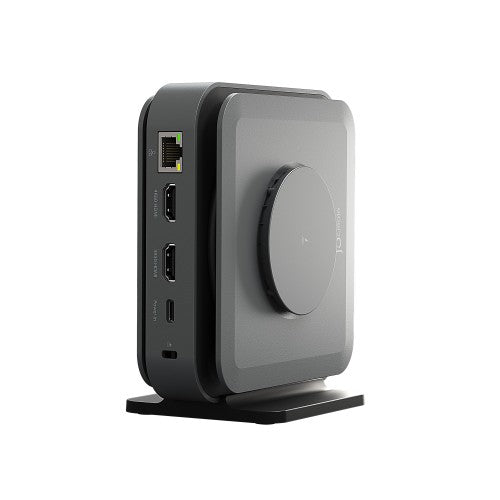

This compact multi-port dock is ideal for office application, featuring everything from the essential two HDMI™ outputs, USB™ ports, Gigabit Ethernet, SD™/microSD™ card reader, Audio Jack and an upgraded Power Delivery 3.1 specification. It comes with a mount for saving-space vertical placement and gives you the ability to connect your MacBook® or other USB-C® compatible laptops to a 4K monitor or TV.
With USB™ Power Delivery 3.1 it’ll take you to a new flexible power application, you'll be able to charge your laptop and power your peripherals with a single USB-C® power adapter even if your laptop only has one USB-C® port. The top of the dock functions as a wireless charging pad that supports up to 15W fast charging. Access a wired network through the Gigabit Ethernet port for a fast and stable network connection. It is also equipped with a cable storage compartment which ensures an easy connection regardless of your USB-C® port’s location. Through a single USB-C® (Thunderbolt™ 3, 4, and USB4® compatible) host cable, this compact adapter provides all the essential connectivity you need to create a workstation virtually anywhere!

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Headphone connectivity	3.5 mm
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
HDMI version	2.0/2.1
Microphone in	Yes
Headphone outputs	1
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.1
USB Power Delivery up to	140 W
USB Type-C DisplayPort Alternate Mode	Yes
Network
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	3840 x 2160 pixels
Country of origin	Taiwan
Product colour	Grey
Card reader integrated	Yes
Data transfer rate	10 Gbit/s
Compatible memory cards	MicroSD (TransFlash), SD
Housing material	Aluminium
Colour name	Space Grey
Maximum refresh rate	60 Hz
Technical details
Product colour	Grey
Data transfer rate	10 Gbit/s
Cable length	0.695 m
Sustainability compliance	Yes
Master (outer) case GTIN (EAN/UPC)	20847626000762
Warranty period	2 year(s)
Compliance certificates	CE, REACH, RoHS
User guide	No
Products per master (outer) case	4 pc(s)
Master (outer) case width	186 mm
Master (outer) case gross weight	3.2 kg
Master (outer) case length	249 mm
Master (outer) case height	174 mm
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD
Power
Power source type	USB
Input current	5 A
Output voltage	20 V
Output current	5 A
Power connector	USB Type-C
Wireless charging power	15 W
Wireless charging	Yes
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Mobile operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	-1 - 41 °C
Storage temperature (T-T)	-17 - 68 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 85%
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Weight	416 g
Width	130 mm
Depth	130 mm
Height	40 mm
Package weight	740 g
Package width	154 mm
Package depth	170.5 mm
Package height	56 mm
Design
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Country of origin	Taiwan
Product colour	Grey
Packaging data
Quantity per pack	1 pc(s)
Package weight	740 g
Package width	154 mm
Package depth	170.5 mm
Package height	56 mm
Packaging content
Stand included	Yes
User guide	No
Quick start guide	Yes
Packaging content	1 - JCD3199 USB-C® Dock Dual 4K HDMI™ 1 - Dock Holder 1 - Quick Installation Guide (QIG)
Manual	No
AC adapter included	No
Quantity per pack	1 pc(s)
Logistics data
Products per master (outer) case	4 pc(s)
Master (outer) case width	186 mm
Master (outer) case gross weight	3.2 kg
Master (outer) case length	249 mm
Master (outer) case height	174 mm
Export Control Classification Number (ECCN)	EAR99
Other features
Cable length	0.695 m
