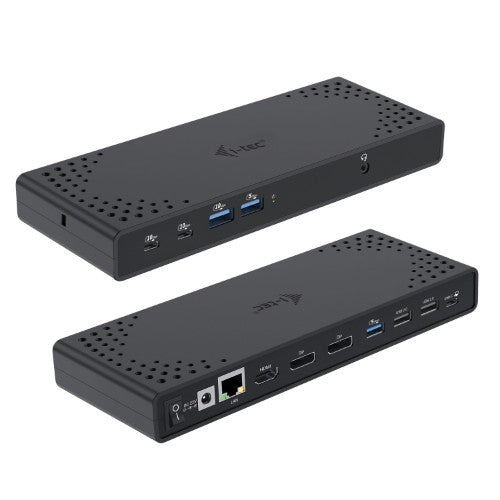

USB-C Triple Display Docking Station Gen 2 + Power Delivery 100W

Key Features

• High-performance docking station for up to three monitors simultaneously
• Dock is compatible with all modern notebooks equipped with USB-C, USB4 or Thunderbolt™ 3/4 ports
• Supports high 4K resolution with refresh rates up to 60 Hz
• The docking station supports up to 100W of power to a connected notebook or tablet
• 7x USB ports allow you to easily connect your USB devices and peripherals (2x USB-C and 5x USB-A)
• GLAN Ethernet supports network speeds of 10/100/1000 Mbps, providing a robust and high-speed internet connection
• The combined 3.5mm audio/mic port can connect, for example, integrated headphones with microphone
• The dock is compatible for vertical mounting behind a monitor with VESA mounting support
• Optional MAC address cloning and automatic data backup of the connected computer (when using i-tec Docker Pro software)
• NOTE: macOS does not support Multi Stream Transport (MST). Connecting two or more monitors to a macOS station will cause all monitors to display the same image

Description

A high-performance, new generation USB-C docking station that supports output to up to three external monitors in up to 4K high resolution. The dock can be used with virtually all notebooks equipped with USB-C, USB4 and Thunderbolt” 3/4 ports, while supporting all common current operating systems.

Plenty of USB ports (including those support Gen 2 speeds of up to 10 Gb/s), reliable and fast connection to the corporate network thanks to the integrated LAN port and support for installation behind the monitor all make this docking station the ideal companion for true professionals. Of course, it supports charging of your laptop or tablet, up to 100 W.

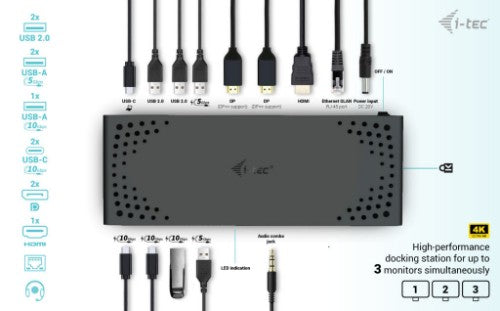

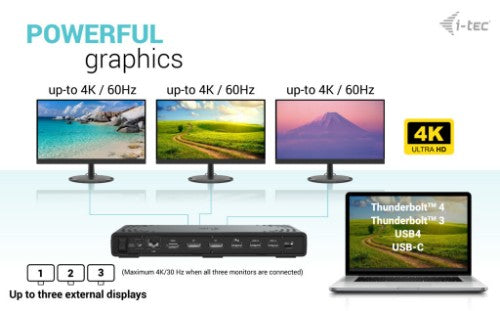

- Connect to 3 external monitors in resolutions up to 4K*
- Power delivery: up to 100 W
- 2 DisplayPort and 1 HDMI port available
- 7 USB ports: 2x USB-C (10 Gb/s) supporting BC 1.2 fast charging and 5x USB-A (1x Gen 2 (10 Gb/s) supporting BC 1.2 fast charging, 2x Gen 1 (5 Gb/s) supporting BC 1.2 fast charging and 2x USB 2.0)
- Gigabit Ethernet RJ-45 provides reliable, robust and high-speed internet connectivity with support for 10/100/1000 Mbps speeds
- Combo jack for audio and microphone
- Kensington lock provides anti-theft protection, especially in shared office environments or public areas
- Docking station power switch allows for maximum power savings
- Docking station supports a VESA mount for smart vertical installation behind a VESA-enabled monitor
- Supports Windows 10/11, macOS, iPadOS, Android, Chrome OS and Linux (with latest updates)

* macOS does not support Multi Stream Transport (MST). Connecting two or more monitors to a macOS station will cause all monitors to display the same image.

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Headphone connectivity	3.5 mm
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	2
Microphone in	Yes
Headphone outputs	1
DC-in jack	Yes
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Number of displays supported	3
Product colour	Black
Card reader integrated	No
Cable lock slot	Yes
Data transfer rate	10 Gbit/s
Cable lock slot type	Kensington
VESA mounting	Yes
Maximum refresh rate	60 Hz
Technical details
Product colour	Black
Cable lock slot	Yes
Data transfer rate	10 Gbit/s
Storage
Card reader integrated	No
Power
Compatible power plug types	UK
Output voltage	22 V
Output current	5.9 A
USB cable length	1 m
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	Android, ChromeOS
Weight & dimensions
Weight	330 g
Width	224 mm
Depth	88 mm
Height	27 mm
Package weight	503 g
Package width	250 mm
Package depth	250 mm
Package height	50 mm
Design
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington
Packaging data
Package weight	503 g
Package width	250 mm
Package depth	250 mm
Package height	50 mm

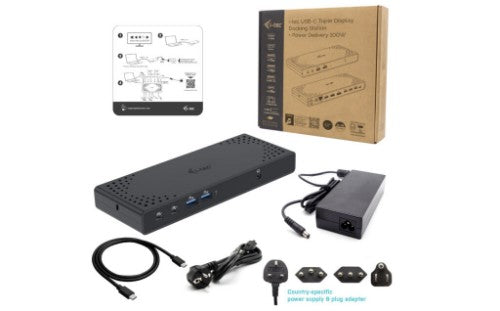

Packaging content
Manual	Yes
Cables included	USB Type-C
AC adapter included	Yes
