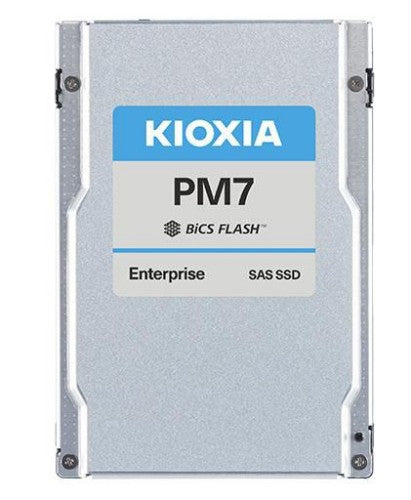

6400 GB, SAS-4, BiCS FLASH TLC, 4200/4100 MB/s, Self-Encrypting Drive (SED)

Key Features

• 24G SAS interface with single/dual-port support
• T10 Multi-Stream Write support
• 2.5-inch form factor, 15 mm Z-height
• 3 DWPD with 100 % Random Write Workload
• Power Loss Protection and End-to-End Data Protection, including T10 DIF

Description

Enterprise SAS SSDSAS SSD 2.5-inch
PM7-V Series 24G SAS Enterprise SSD is optimized for mixed use applications, including relational database, streaming media, data warehousing and web services. The series is designed to deliver balanced levels of performance, reliability, capacity and endurance for mixed use and read intensive environments.

Featuring KIOXIA 112-layer BiCS FLASH™ 3D flash memory, this 7th generation enterprise SAS SSD PM7-V offers 3 DWPD (Drive Writes Per Day) with capacities up to 12.8 TB

Specifications

Hard drive
SSD capacity	6.4 TB
Memory type	BiCS FLASH TLC
Data transmission
Read speed	4200 MB/s
Write speed	4100 MB/s
Random write (4KB)	355000 IOPS
Random read (4KB)	720000 IOPS
Data transfer rate	22.5 Gbit/s
Endurance
Mean time between failures (MTBF)	2500000 h
Features
Interface	SAS
Component for	Server/workstation
End-to-End Data Protection	Yes
SSD capacity	6.4 TB
Read speed	4200 MB/s
Write speed	4100 MB/s
Memory type	BiCS FLASH TLC
Random write (4KB)	355000 IOPS
Random read (4KB)	720000 IOPS
Mean time between failures (MTBF)	2500000 h
Hardware encryption	Yes
Data transfer rate	22.5 Gbit/s
SSD form factor	2.5"
Power
Power consumption (average)	5 W
Operating voltage	12 V
Performance
Interface	SAS
Component for	Server/workstation
End-to-End Data Protection	Yes
SSD capacity	6.4 TB
Read speed	4200 MB/s
Write speed	4100 MB/s
Memory type	BiCS FLASH TLC
Random write (4KB)	355000 IOPS
Random read (4KB)	720000 IOPS
Mean time between failures (MTBF)	2500000 h
Hardware encryption	Yes
Data transfer rate	22.5 Gbit/s
Design
Component for	Server/workstation
SSD form factor	2.5"
Weight & dimensions
Width	68.8 mm
Weight	150 g
Height	15 mm
Depth	100.5 mm
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Operating shock	1000 G
Operating vibration	2.17 G
Technical details
Interface	SAS
Operating temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Operating shock	1000 G
Operating vibration	2.17 G
Hardware encryption	Yes
SSD form factor	2.5"
