2.4 GHz (574 Mbps), 5 GHz (1201 Mbps), IEEE 802.11a/b/g/n/ac/ax, 90.2 × 29.2 × 12.9 mm

Key Features

• Fast WiFi 6 - Break the gigabit barrier with speeds up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
• Dual Band Wireless - 2.4 GHz and 5 GHz bands for flexible connectivity
• Broader Coverage - Connect to your WiFi from wherever in your home with high-performance antennas and Beamforming
• Lower Latency Gameplay - OFDMA and MU-MIMO ensure the most efficient WiFi connection for your PC
• Improved Security - WPA3 provides the latest security enhancements for personal password protection
• SuperSpeed USB 3.0 - Up to 10x faster transfer speeds than USB 2.0

Description

Wi-Fi 6 Upgrades Everything
The latest Wifi technology makes annoying lag and endless loading a thing of the past. Equip your PC with TX20U and enjoy the future of faster network loads and more connections.

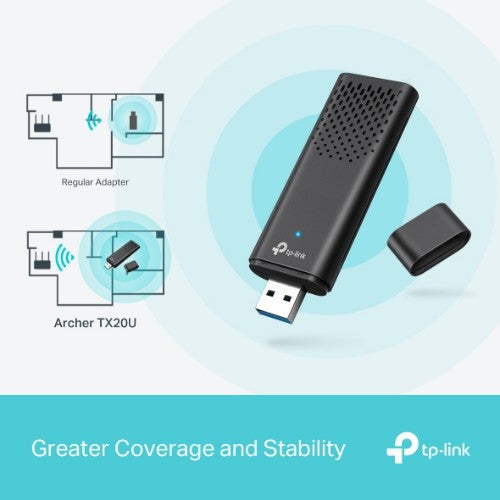

Greater Coverage and Stability
The built-in high-performance antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.

Lower Latency, Higher Efficiency, and Less Congestion
MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.

OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.

USB 3.0 for Superior Transfer Speeds
Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer TX20U ideal for HD streaming, online gaming and large file downloads.

Specifications

Ports & interfaces
Internal	No
USB version	3.2 Gen 1 (3.1 Gen 1)
Interface	WLAN
Host interface	USB
Connectivity technology	Wired
USB connector form factor	Straight
Bandwidth
Maximum data transfer rate	1201 Mbit/s
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
WLAN data transfer rates supported	11,54,300,400,574,867 Mbit/s
Technical details
Product colour	Black
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Network
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
WLAN data transfer rates supported	11,54,300,400,574,867 Mbit/s
Maximum data transfer rate	1201 Mbit/s
Design
Product colour	Black
Internal	No
LED indicators	Status
Transmitting power (CE)	18.5 - 21.5 dBm
Transmitting power (FCC)	19 dBm
Operating modes	Infrastructure mode
Component for	PC
Software
Windows operating systems supported	Windows 10, Windows 11
Indication
LED indicators	Status
System requirements
Windows operating systems supported	Windows 10, Windows 11
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	90.2 mm
Depth	29.2 mm
Height	12.9 mm
Security
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Packaging content
Quick installation guide	Yes
Performance
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Windows operating systems supported	Windows 10, Windows 11
Packaging data
Quick installation guide	Yes
