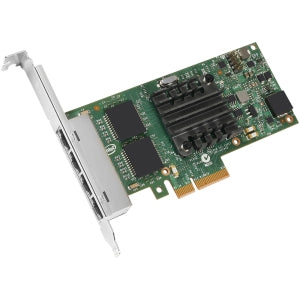

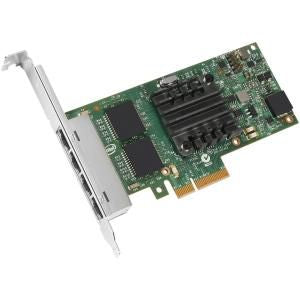

Intel Ethernet Server Adapter I350T4V2

Description

iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.

PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.

Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance

Specifications

Ports & interfaces
Internal	Yes
PCI version	2.1
Ethernet LAN (RJ-45) ports	4
PCI Card form factor	Full-height (low-profile)
Interface	Ethernet
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Data transfer rate	5 GT/s
Maximum data transfer rate	1000 Mbit/s
Network
Data transfer rate	5 GT/s
VLAN tagging	Yes
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
iSCSI support	Yes
Cabling technology	10/100/1000BaseT(X)
Networking standards	IEEE 802.1Q, IEEE 802.1as, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Maximum operating distance	100 m
LAN controller	Intel® I350
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Technical details
Interface type	PCIe v2.1 (5.0 GT/s)
Product colour	Green
Speed & slot width	5.0 GT/s, x4 Lane
PCI-SIG* SR-IOV Capable	Yes
PCI Card form factor	Full-height (low-profile)
On-chip QoS and Traffic Management	Yes
Number of VLANs	4096
Low halogen options available	No
iWARP/RDMA	No
Intelligent Offloads	Yes
Intel Virtualization Technology for Connectivity (VT-c)	Yes
Intel Virtual Machine Device Queues (VMDq)	Yes
Intel Flexible Port Partitioning	Yes
Intel Ethernet Power Management	Yes
Storage Over Ethernet	iSCSI, NFS
Harmonized System (HS) code	85176990
Export Control Classification Number (ECCN)	5A991
Commodity Classification Automated Tracking System (CCATS)	NA
Thermal Design Power (TDP)	5 W
Product type	Network Interface Card
Processor family	Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Status	Launched
Product brief URL	http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350
Network interface card type	Server
Network interface card cable medium	Copper
Market segment	Server
Launch date	Q3'14
Last change	63903513
Design
Product colour	Green
Internal	Yes
PCI Card form factor	Full-height (low-profile)
Product family	Intel Gigabit server adapter
Product series	Intel® I350
Product codename	Powerville
Software
Linux operating systems supported	Yes
System requirements
Server operating systems supported	Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2012 R2, Windows Server 2012 R2 x64
Linux operating systems supported	Yes
Compatible operating systems	https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Performance
Server operating systems supported	Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2012 R2, Windows Server 2012 R2 x64
Ethernet adapter ARK ID	84805
Linux operating systems supported	Yes
Speed & slot width	5.0 GT/s, x4 Lane
PCI-SIG* SR-IOV Capable	Yes
On-chip QoS and Traffic Management	Yes
Number of VLANs	4096
iWARP/RDMA	No
Intelligent Offloads	Yes
Intel Virtual Machine Device Queues (VMDq)	Yes
Intel Flexible Port Partitioning	Yes
Intel Ethernet Power Management	Yes
Other features
Compatible operating systems	https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Data transfer rate	5 GT/s
Thermal Design Power (TDP)	5 W
Product type	Network Interface Card
Processor family	Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Ethernet adapter ARK ID	84805
Interface type	PCIe v2.1 (5.0 GT/s)
Cable type	Cat 5 up to 100m
Speed & slot width	5.0 GT/s, x4 Lane
PCI-SIG* SR-IOV Capable	Yes
On-chip QoS and Traffic Management	Yes
Number of VLANs	4096
Low halogen options available	No
iWARP/RDMA	No
Intelligent Offloads	Yes
Intel Virtualization Technology for Connectivity (VT-c)	Yes
Intel Virtual Machine Device Queues (VMDq)	Yes
Intel Flexible Port Partitioning	Yes
Intel Ethernet Power Management	Yes
Storage Over Ethernet	iSCSI, NFS
Status	Launched
Product brief URL	http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350
Network interface card type	Server
Network interface card cable medium	Copper
Market segment	Server
Launch date	Q3'14
Last change	63903513
Product family	Intel Gigabit server adapter
Product series	Intel® I350
Product codename	Powerville
Harmonized System (HS) code	85176990
Export Control Classification Number (ECCN)	5A991
Commodity Classification Automated Tracking System (CCATS)	NA
Controller type	Intel I350
Cabling type	Cat 5 up to 100m
Bracket height	Low-Profile (LP) / Full-Height (FH)
Logistics data
Harmonized System (HS) code	85176990
